User manual SEFELEC 5x Series 44 v1.06

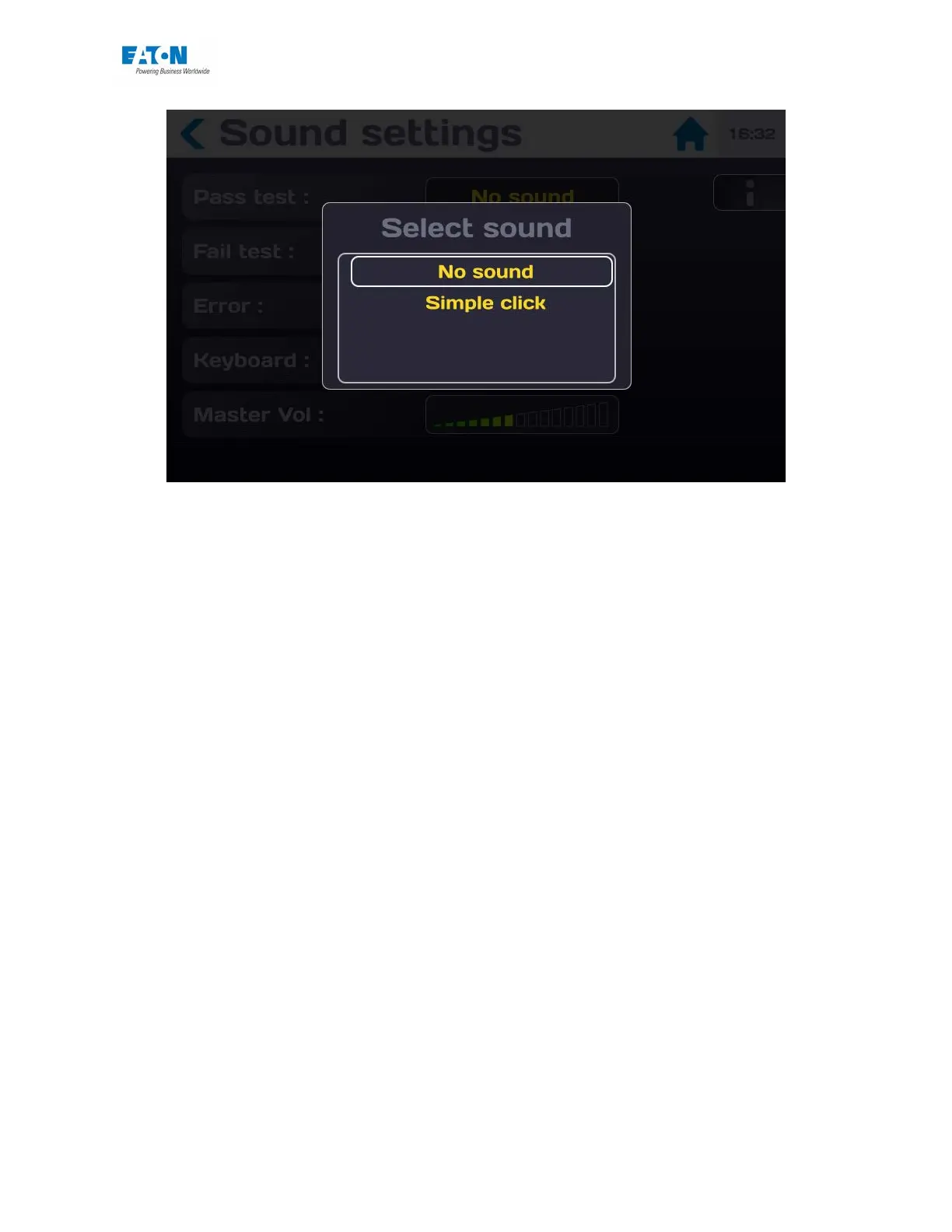

To adjust the sound volume place your finger on the graphic bar and drag it to the right while

remaining in contact with the screen to increase the volume, and to the left to decrease the vol-

ume.

Return to the previous menu with the symbol:
