(28)
ALARM
TRIP
ERROR
B.P.RUN
M.P.RUN
LOCAL
LCD
( Liquid Crystal Display )
Push Button
Buzzer
LED ( Green )
BUZZER
OFF
STOPSTART
DISP.
SELECT
RESET
LED ( Red )
LED ( Orange )

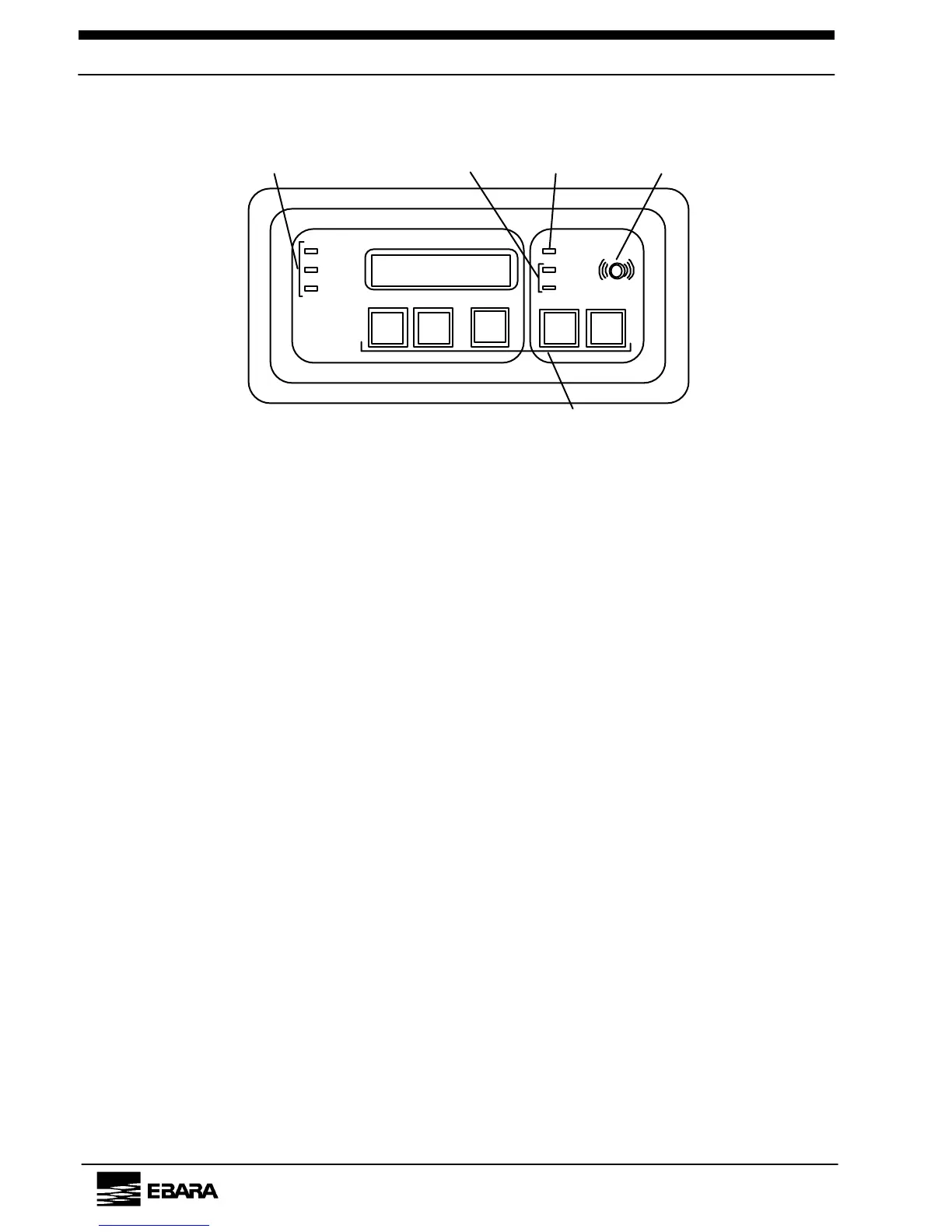

Figure 5.1 LCD Controller
[Buttons] START： Start MP and BP
STOP： Start of MP and BP
DISP. SELECT： Change LCD indication
RESET： Reset ALARM and TRIP
BUZZER OFF： Mute buzzer in ALARM / TRIP
[LED] B.P. RUN： BP running
M.P. RUN： MP running
LOCAL： LOCAL mode
ALARM： ALARM condition
TRIP： TRIP condition
ERROR： Microprocessor malfunction
