English
Installation

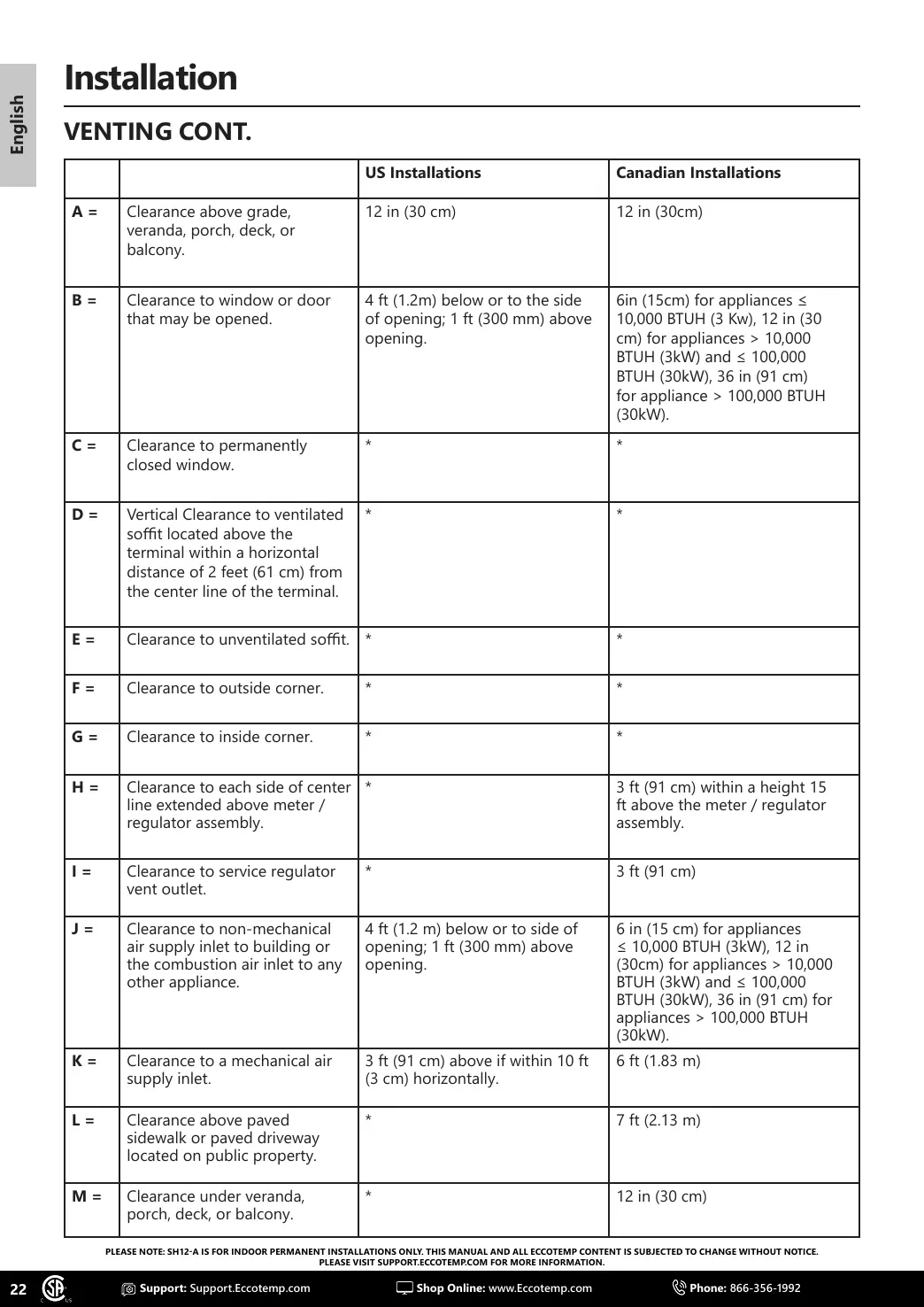

VENTING CONT.
US Installations Canadian Installations
A = Clearance above grade,
veranda, porch, deck, or
balcony.
12 in (30 cm) 12 in (30cm)
B = Clearance to window or door
that may be opened.
4 ft (1.2m) below or to the side
of opening; 1 ft (300 mm) above
opening.
6in (15cm) for appliances ≤
10,000 BTUH (3 Kw), 12 in (30
cm) for appliances > 10,000
BTUH (3kW) and ≤ 100,000
BTUH (30kW), 36 in (91 cm)
for appliance > 100,000 BTUH
(30kW).
C = Clearance to permanently
closed window.
* *
D = Vertical Clearance to ventilated
sot located above the
terminal within a horizontal
distance of 2 feet (61 cm) from
the center line of the terminal.
* *
E = Clearance to unventilated sot. * *
F = Clearance to outside corner. * *
G = Clearance to inside corner. * *
H = Clearance to each side of center
line extended above meter /
regulator assembly.
* 3 ft (91 cm) within a height 15
ft above the meter / regulator
assembly.
I = Clearance to service regulator
vent outlet.
* 3 ft (91 cm)
J = Clearance to non-mechanical
air supply inlet to building or
the combustion air inlet to any
other appliance.
4 ft (1.2 m) below or to side of
opening; 1 ft (300 mm) above
opening.
6 in (15 cm) for appliances
≤ 10,000 BTUH (3kW), 12 in
(30cm) for appliances > 10,000
BTUH (3kW) and ≤ 100,000
BTUH (30kW), 36 in (91 cm) for
appliances > 100,000 BTUH
(30kW).
K = Clearance to a mechanical air
supply inlet.
3 ft (91 cm) above if within 10 ft
(3 cm) horizontally.
6 ft (1.83 m)
L = Clearance above paved
sidewalk or paved driveway
located on public property.
* 7 ft (2.13 m)
M = Clearance under veranda,
porch, deck, or balcony.
* 12 in (30 cm)
