PLEASE NOTE: SH12
-
A IS FOR INDOOR PERMANENT INSTALLATIONS ONLY. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECTED TO CHANGE WITHOUT NOTICE.
PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR MORE INFORMATION.
English

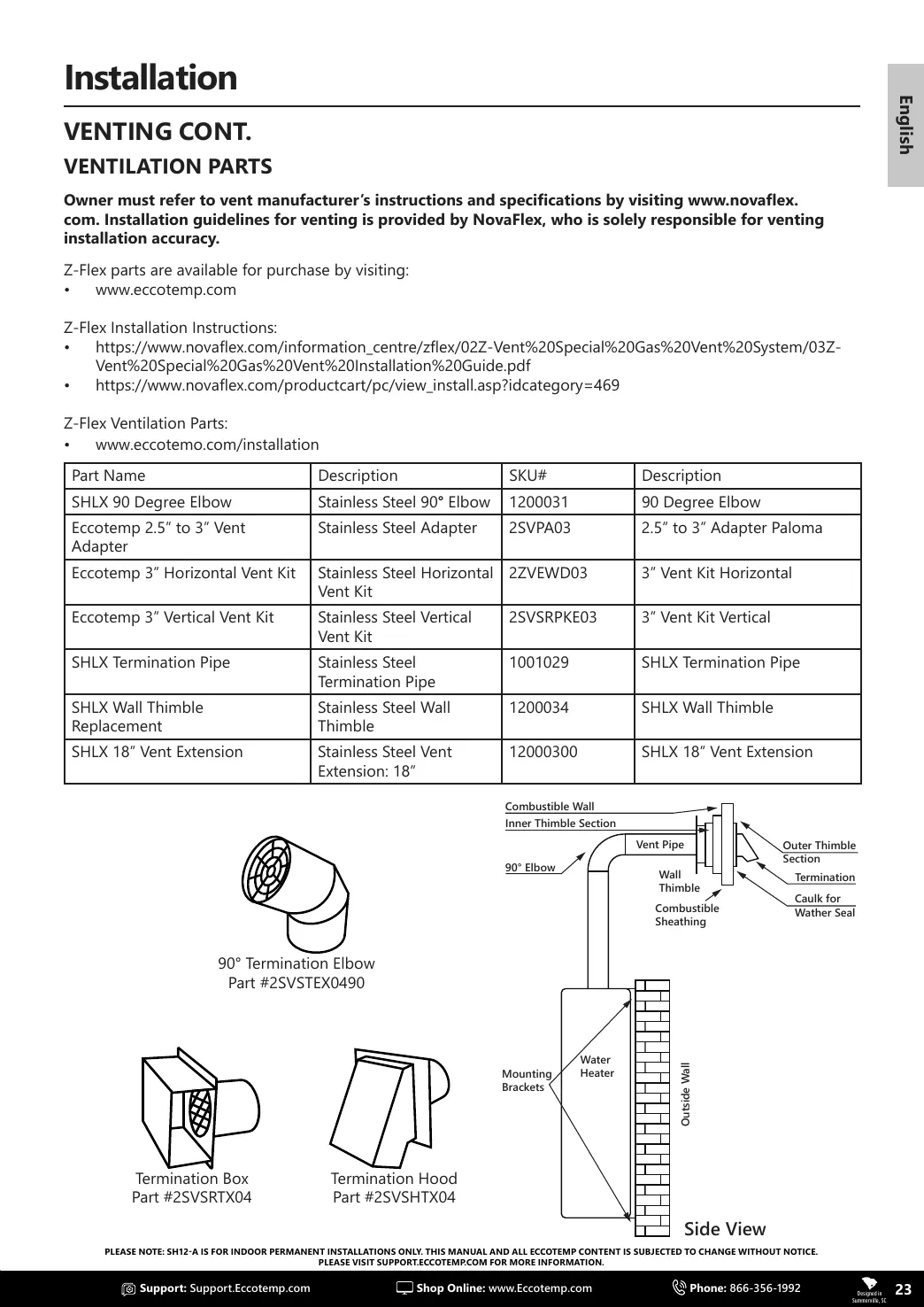

Installation
VENTING CONT.
VENTILATION PARTS
Owner must refer to vent manufacturer’s instructions and specications by visiting www.novaex.
com. Installation guidelines for venting is provided by NovaFlex, who is solely responsible for venting
installation accuracy.
Z-Flex parts are available for purchase by visiting:
• www.eccotemp.com
Z-Flex Installation Instructions:
• https://www.novaex.com/information_centre/zex/02Z-Vent%20Special%20Gas%20Vent%20System/03Z-
Vent%20Special%20Gas%20Vent%20Installation%20Guide.pdf
• https://www.novaex.com/productcart/pc/view_install.asp?idcategory=469
Z-Flex Ventilation Parts:
• www.eccotemo.com/installation
Part Name Description SKU# Description
SHLX 90 Degree Elbow Stainless Steel 90° Elbow 1200031 90 Degree Elbow
Eccotemp 2.5” to 3” Vent
Adapter
Stainless Steel Adapter 2SVPA03 2.5” to 3” Adapter Paloma
Eccotemp 3” Horizontal Vent Kit Stainless Steel Horizontal
Vent Kit
2ZVEWD03 3” Vent Kit Horizontal
Eccotemp 3” Vertical Vent Kit Stainless Steel Vertical
Vent Kit
2SVSRPKE03 3” Vent Kit Vertical
SHLX Termination Pipe Stainless Steel
Termination Pipe
1001029 SHLX Termination Pipe
SHLX Wall Thimble
Replacement
Stainless Steel Wall
Thimble
1200034 SHLX Wall Thimble
SHLX 18” Vent Extension Stainless Steel Vent
Extension: 18”
12000300 SHLX 18” Vent Extension
90° Termination Elbow
Part #2SVSTEX0490
Termination Box
Part #2SVSRTX04
Termination Hood
Part #2SVSHTX04
90° Elbow
Vent Pipe
Wall
Thimble
Combustible
Sheathing
Caulk for
Wather Seal
Termination
Inner Thimble Section
Outer Thimble
Section
Water
Heater
Outside Wall
Mounting
Brackets
