17
rhythm.
K Lead Select Lead switch in manual mode.
L START/STOP Start and stop print
M Sleep/wake up
System enters sleep mode or back to work
mode

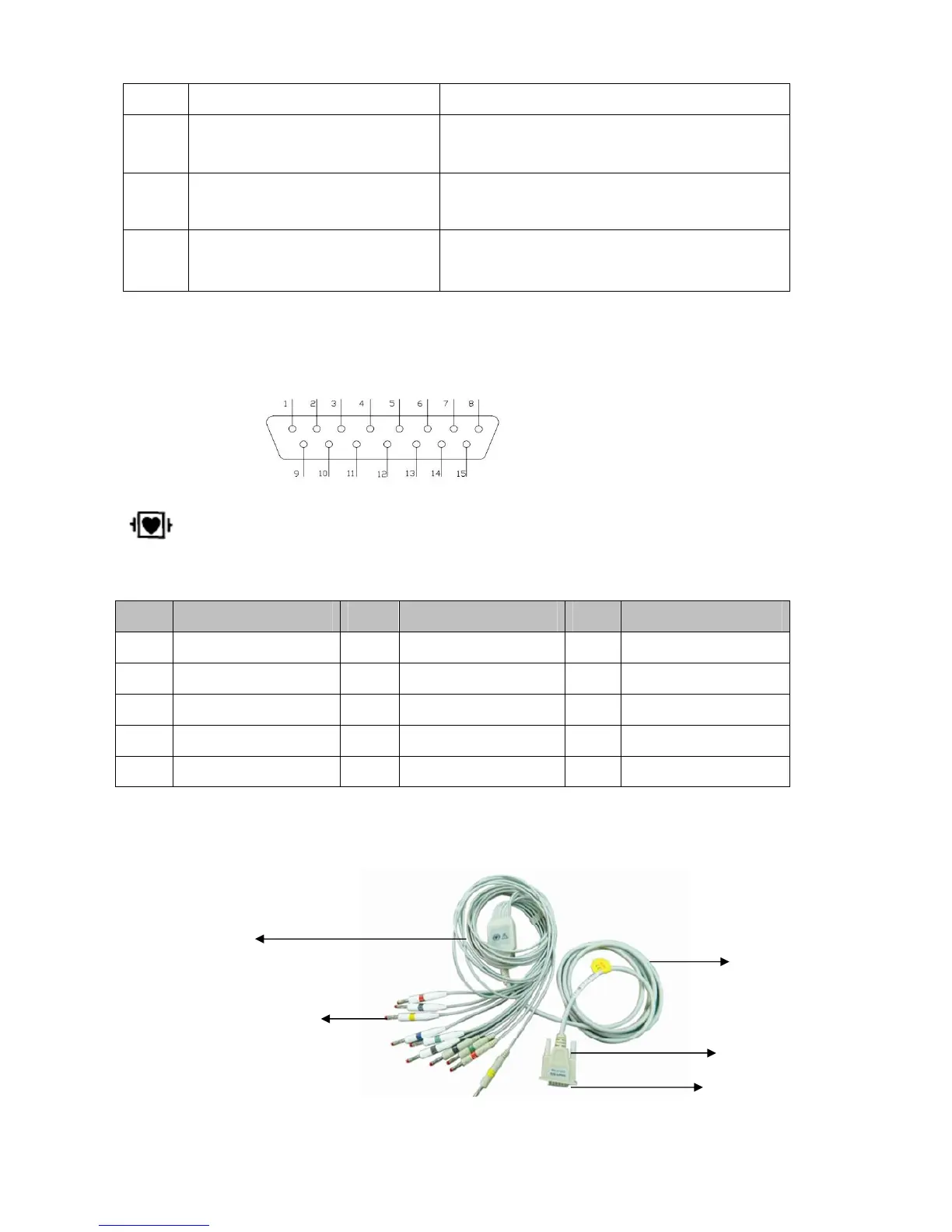

3.1.6 Patient Cable Socket and definition for plug pins
Applied part of type CF with defibrillator proof
Definition of corresponding pins：
Pin Signal Pin Signal Pin Signal
1 C2 (input) 6
SH
11
F (input)
2
C3 (input)
7
NC
12
NC
3
C4 (input)
8
NC
13
C1 (input)
4
C5 (input)
9
R(input)
14
NC
5
C6 (input)
10
L(input)
15
N or RF (input)
3.1.7 Patient cable
Patient cable includes main cable and lead wires. The lead wires include 6 chest lead wires
Lead Wires
Electrode Connectors
Main Cable
Screw
Connector
