Echo EGi-3600LN User Manual

12

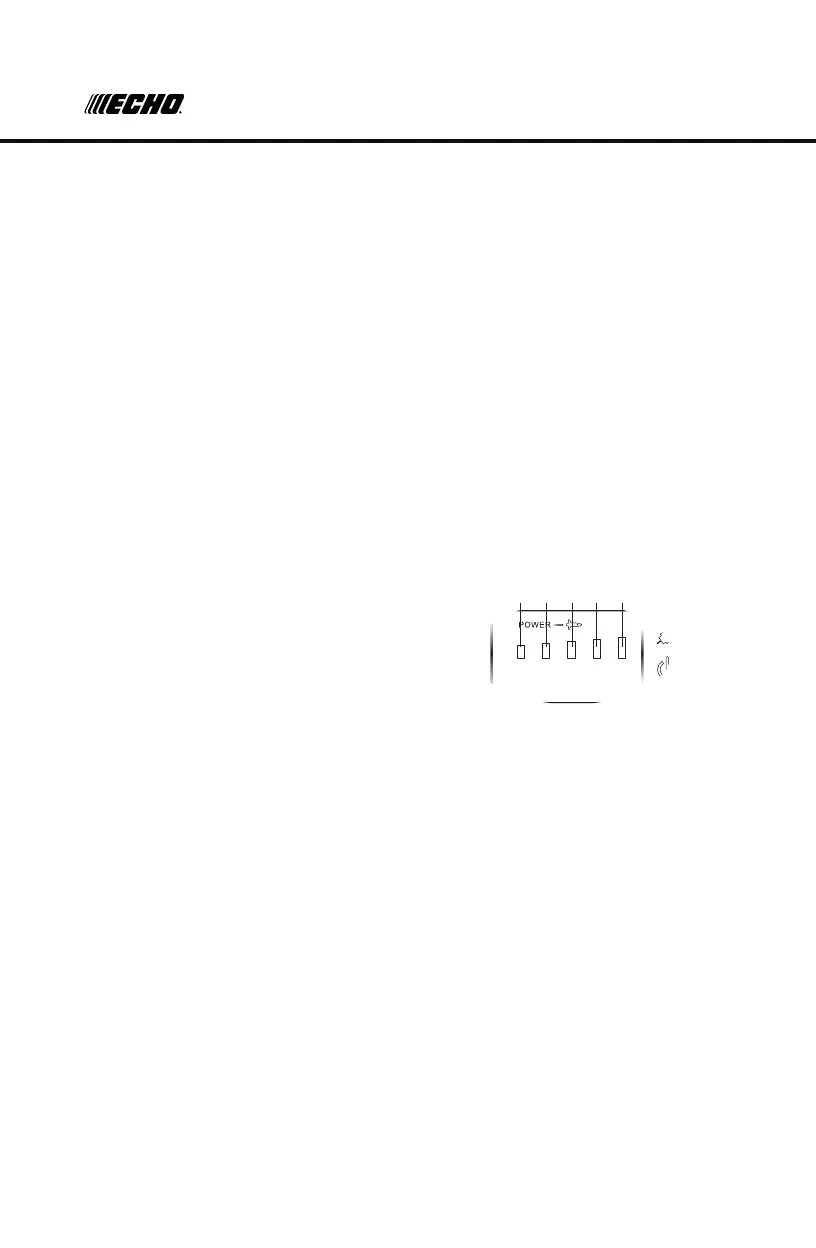

DESCRIPTION
240V
Multi functional digital meter
Red
Red
Red
Inverter alert indicator. Light is off while this light is
constantly on
- 11 -
4
3
5
1
Fuel level indicator
6
2
Voltage-U000, Frequency-F00.0, Total working time-000.0(0.1h) , Working
hours at one time-00.00 Switch the display by pushing .
Oil change indicator, first time indicate after 50hrs, and then indicate once
every 100hrs. Every indicating lasts 1hr.
Air cleaner maintenance indicator, indicate once every 100hrs. Every indicating
lasts 1hr.
Green
7
On-load indicator light on green while the inverter is on-load.
Red
8
Oil alert light on while the oil is empty
Green
9 Inverter working indicator.
Red
9
10
Spark plug maintenance indicator,indicate once every 100hrs. Every indicating
lasts 1hr.
Full-Green, all lights on Low fuel level-lights
turn orange
11 Power display
Power lower than 25%, light A turns green.
Power display
Power lower than 50%, light A&B turns green.
Power lower than 75% light A&B&C turns green.
Power lower than 100%, light A&B&C&D turns green.
Power higher than 100%,but lower than 110%, light A&B&C&D turns
green&red.
Power higher than 110%, light A&B&C&D&E turns red.
A B C D E
25% 50% 75% 100% 110%
240V
5 - Multi functional digital meter
Voltage-U000, Frequency-F00.0, Total working time-000.0(0.1h) ,
Working hours at one time-00.00 Switch the display by pushing - 4
1 - Red
Oil change indicator, rst time indicate after 50hrs, and then
indicate once every 100hrs. Every indicating lasts 1hr.
2 - Red
Air cleaner maintenance indicator, indicate once every 100hrs.
Every indicating lasts 1hr.
3 - Red
Spark plug maintenance indicator,indicate once every 100hrs.
Every indicating lasts 1hr.
6 - Fuel level indicator
Full-Green, all lights on Low
fuel level-lights turn orange
11 - Power display
Power lower than 25%, light A turns green. Power display Power
lower than 50%, light A&B turns green.
Power lower than 75% light A&B&C turns green.
Power lower than 100%, light A&B&C&D turns green.
Power higher than 100%,but lower than 110%, light A&B&C&D turns
green&red.
Power higher than 110%, light A&B&C&D&E turns red.
7 - Green On-load indicator light on green while the inverter is on-load.
8 - Red Oil alert light on while the oil is empty
9 - Green Inverter working indicator.
10 - Red Inverter alert indicator. Light is o󰀨 while this light is constantly on

Echo EGi-3600LN Specifications

General

Brand	Echo
Model	EGi-3600LN
Category	Portable Generator
Language	English
