11

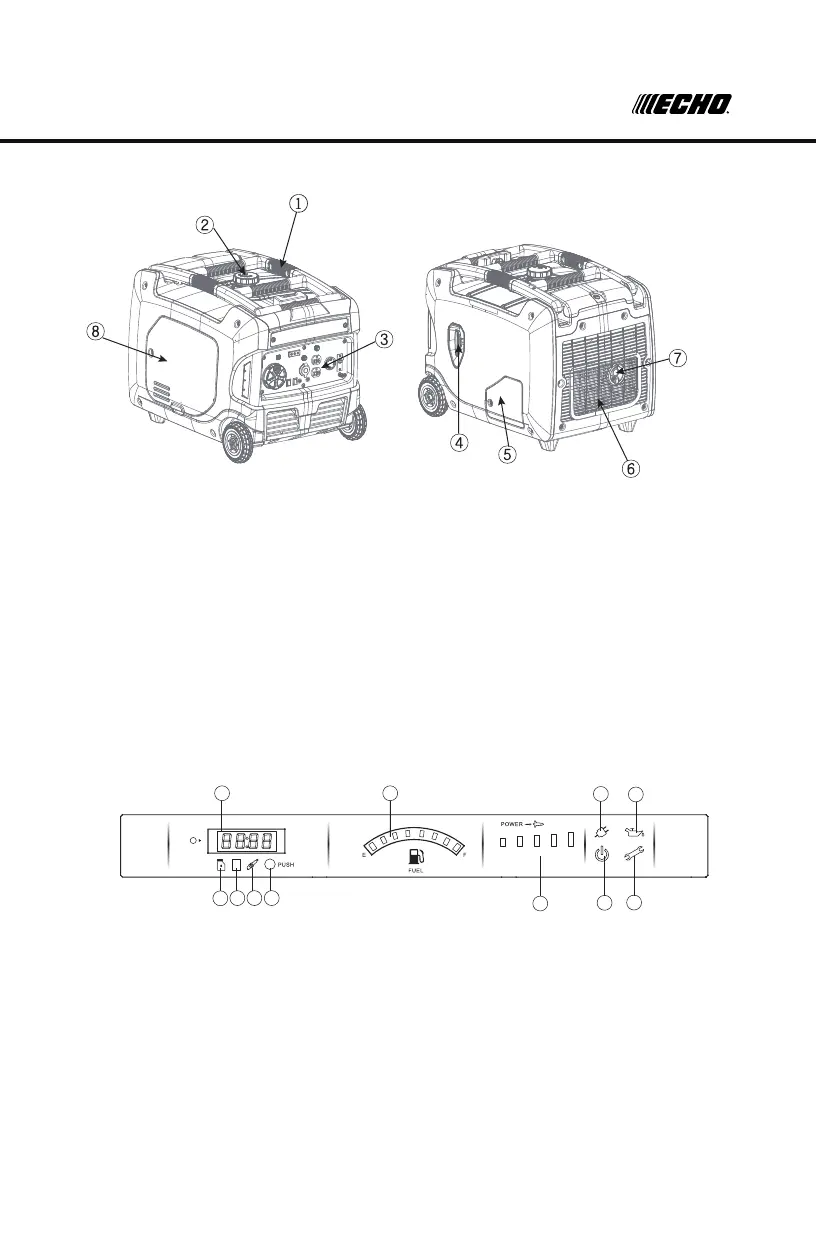

DESCRIPTION
2 . DISCRIPTION
Carrying handle
Fuel tank cap
Control panel
Recoil starter
Oil filler cap
Louver
Muffler
Spark plug maintenance cover
- 8 -
2 .1 Control panel
3. CONTROL FUNCTION
3.1 Switch knob
3.2 LED functions display(For electric start version)
Engine switch \fuel valve “OFF”;
Ignition circuit is switched off. Fuel is switched off.
The engine will not run.
Engine switch \fuel valve \ choke “ON
Ignition circuit is switched on. Fuel is switched on. Choke is switched on.
The engine can be running.
Engine switch \fuel valve \ choke “CHOKE” ;
Ignition circuit is switched on. Fuel is switched on. Choke is switched off.
The engine can be start.
TIP: The choke is not required to start a warm engine.
;
- 10 -
ElectricRecoil
25%
50%
75%
100%
110%
Oil change indicator
Air cleaner maintenance indicator
Spark plug maintenance indicator
Switch button
Fuel level indicator
On-load indicator
Oil alert indicator
Inveter alert indicator
Inverter running indicator
Power display
Multi functional digital meter
4
4
3
3
5
5
6
6
7
7
8
8
9
9
10
10
11
11
2
2
1
1
LED FUNCTION DISPLAY (EGI-3600LN)
1. Carrying handle
2. Fuel tank cap
3. Control panel
4. Recoil starter
5. Oil ller cap
6. Louver
7. Mu󰀪er
8. Spark plug cover
1. Oil change indicator
2. Air cleaner maintenance indicator
3. Spark plug maintenance indicator
4. Switch button
5. Multi functional digital meter
6. Fuel level indicator
BREAKDOWN
7. On-load indicator
8. Oil alert indicator
9. Inverter running indicator
10. Inverter alert indicator
11. Power display
