STARTING THE ENGINE

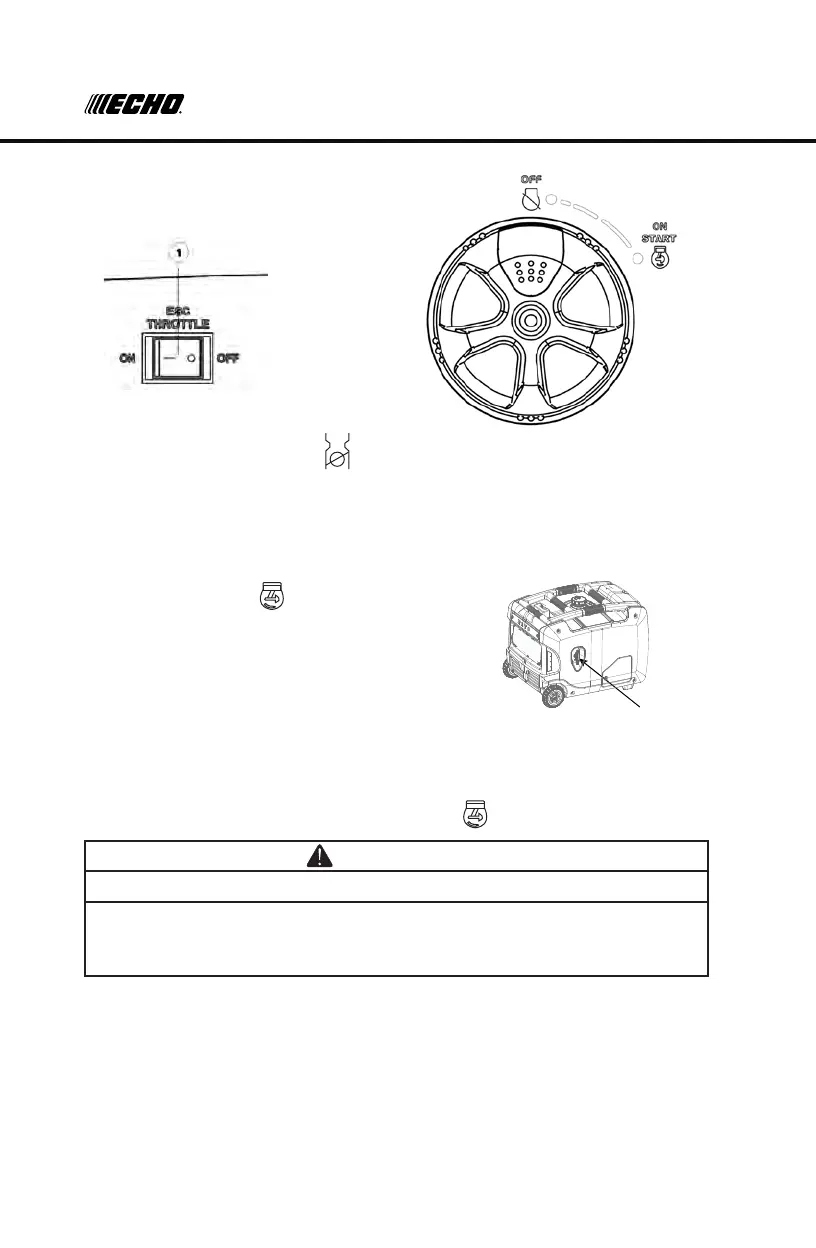

1. Turn the ESC switch to “OFF” (1).
2. Turn the air vent knob to “ON” (2).
3. Turn the 3 in 1 switch to “CHOKE” (3),
a. Ignition circuit is switched on.
b. Fuel is switched on.
c. Choke is switched on
TIP: The choke is not required to start a warm engine. Push the choke
knob to the position “ON”.
4. Use electric start or pull slowly on the
recoil starter until you feel slight
resistance, then pull it briskly.
TIP: Grasp the carrying handle rmly to prevent the
generator from falling over when pulling the recoil starter.
5. After the engine starts, warm up the engine until it doesn’t stop
when the choke knob is returned to the “ON” position (4).
TIP: When starting the engine, with the ESC “ON”, and there is no
load on the generator:
• In ambient temperature below 0°C (32°F), the engine will run at the
rated r/min (4500r/min) for 5 minutes to warm up the engine.
• In ambient temperature below 5°C (41°F), the engine will run at the
rated r/min (4500r/min) for 3 minutes to warm up the engine.
• The ESC unit operates normally after the above time period, while
the ESC is “ON”.
OPERATION
- 19 -
1. Turn the ESC switch to “OFF”.
5.1 Starting the engine
(Recoil)
Turn the switch knob to “CHOKE” .
(Electric)
Turn the switch to “CHOKE” .
a. Ignition circuit is switched on.
b. Fuel is switched on.
c. chock is switched off
a. Ignition circuit is switched on.
b. Fuel is switched on.
c. Chock is switched off.
Press the electric start switch
as shown in the figure.
d.
TIP: warm engine. Push the choke
knob in to the position “ON”.
The choke is not required to start a
Press the electric start switch as shown
TIP: warm engine. Push the choke
knob in to the position “ON”.
in the figure.
The choke is not required to start a
4. Pull slowly on the recoil starter until it is
engaged, then pull it briskly.
TIP: Grasp the carrying handle firmly to prevent
the generator from falling over when pulling the
recoil starter.
Electric
Recoil
2. Turn the switch knob
Handle
Press towards
the left
CAUTION
Do not connect appliances with defective power cords and/or plugs.
Be sure appliances are not connected to generator when starting
up. Starting the generator with an appliance connected could result
in damage to the generator and/or appliances and personal injury.
