Echo EGi-3600LN User Manual

32
NOTICE
• Do not tilt the generator when adding engine oil. This could result
in overlling and damage to the engine.
NOTICE
• Be sure no foreign material enters the crankcase.

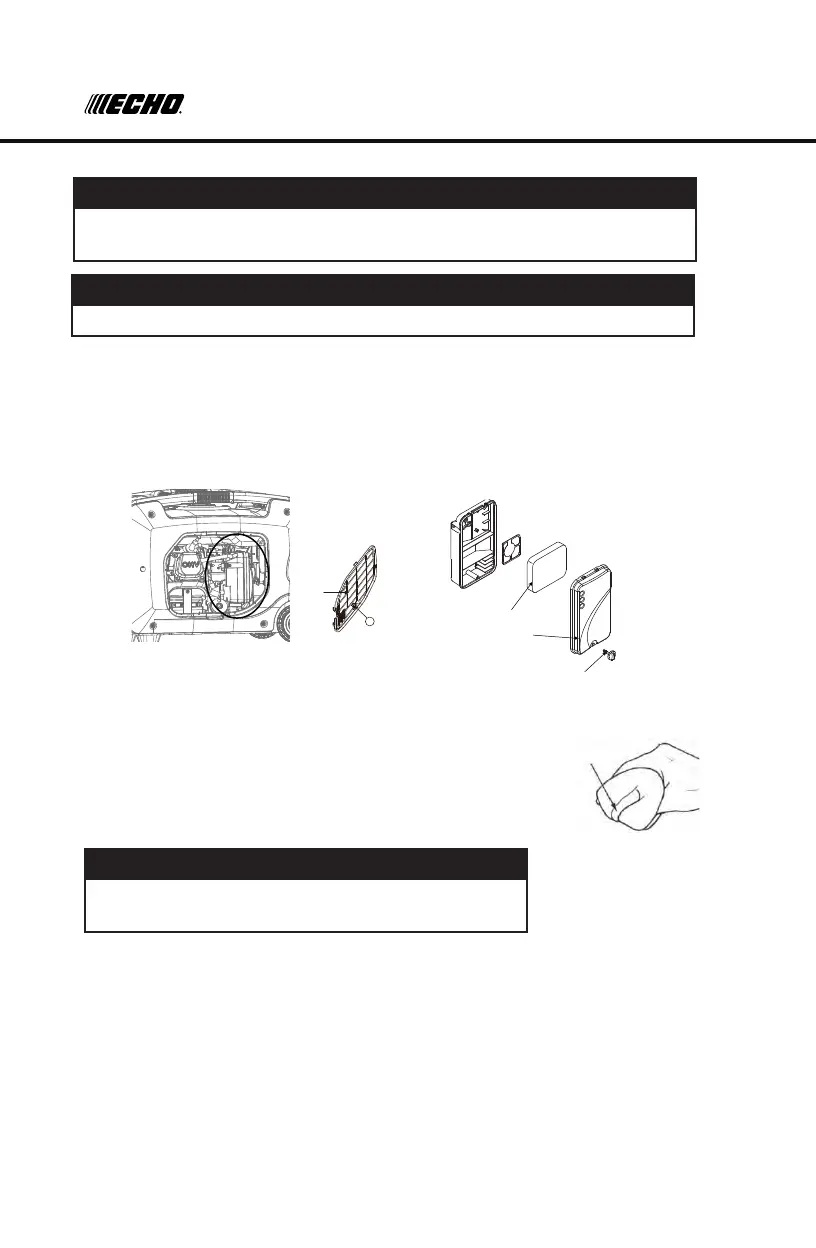

AIR FILTER
1. Remove the screws (1), and then remove the cover (2).
2. Remove the screw (3) and then remove the air lter case cover (4).
3. Remove the foam element (5).
4. Wash the foam element in solvent and dry it.
5. Soak the foam element in oil and squeeze it
to remove any excess. The foam should be wet
but not dripping.
NOTICE
• Do not wring out the foam element when
squeezing it. This could cause it to tear.
6. Insert the foam element into the air lter case.
TIP: Be sure the foam element sealing surface
matches the air lter so there is no air leak.
MAINTENANCE
Be sure no foreign material enters the crankcase.
8. Install the oil filler cap.
9. Install the cover and tighten the screws.
- 29 -
6 .4 Air filter
1. Remove the screws ①, and then remove the cover ②.
2. Remove the screw ③
③
and then remove the air filter case cover ④.
④
3. Remove the foam element .
4. Wash the foam element in solvent and dry it.
5. Oil the foam element and squeeze out excess oil.
The foam element should be wet but not dripping.
Do not wring out the foam element when squeezing
it. This could cause it to tear.
6. Insert the foam element into the air filter case.
TIP: Be sure the foam element sealing surface matcher
is no air leak.
Foam element
Foam element
the air filter so there
The engine should never run without the foam element; excessive piston
and cylinder wear may result.
7. Install the air filter case cover in its original position and tighten the screw.
8. Install the cover and tighten the screws.
②
1
Be sure no foreign material enters the crankcase.
8. Install the oil filler cap.
9. Install the cover and tighten the screws.
- 29 -
6 .4 Air filter
1. Remove the screws ①, and then remove the cover ②.
2. Remove the screw ③
③
and then remove the air filter case cover ④.
④
3. Remove the foam element .
4. Wash the foam element in solvent and dry it.
5. Oil the foam element and squeeze out excess oil.
The foam element should be wet but not dripping.
Do not wring out the foam element when squeezing
it. This could cause it to tear.
6. Insert the foam element into the air filter case.
TIP: Be sure the foam element sealing surface matcher
is no air leak.
Foam element
Foam element
the air filter so there
The engine should never run without the foam element; excessive piston
and cylinder wear may result.
7. Install the air filter case cover in its original position and tighten the screw.
8. Install the cover and tighten the screws.
②
1
