5.2.5 Ethernet Interface
Ethernet interface of 10/100 Base-T can be connected to 10/100M.
5.2.6 Power Supply Inlet
The EC-PM-80320 printer connects with a 24V±10% and 2.5A AC adapter. The power supply inlet is
shown as Figure 5-9.

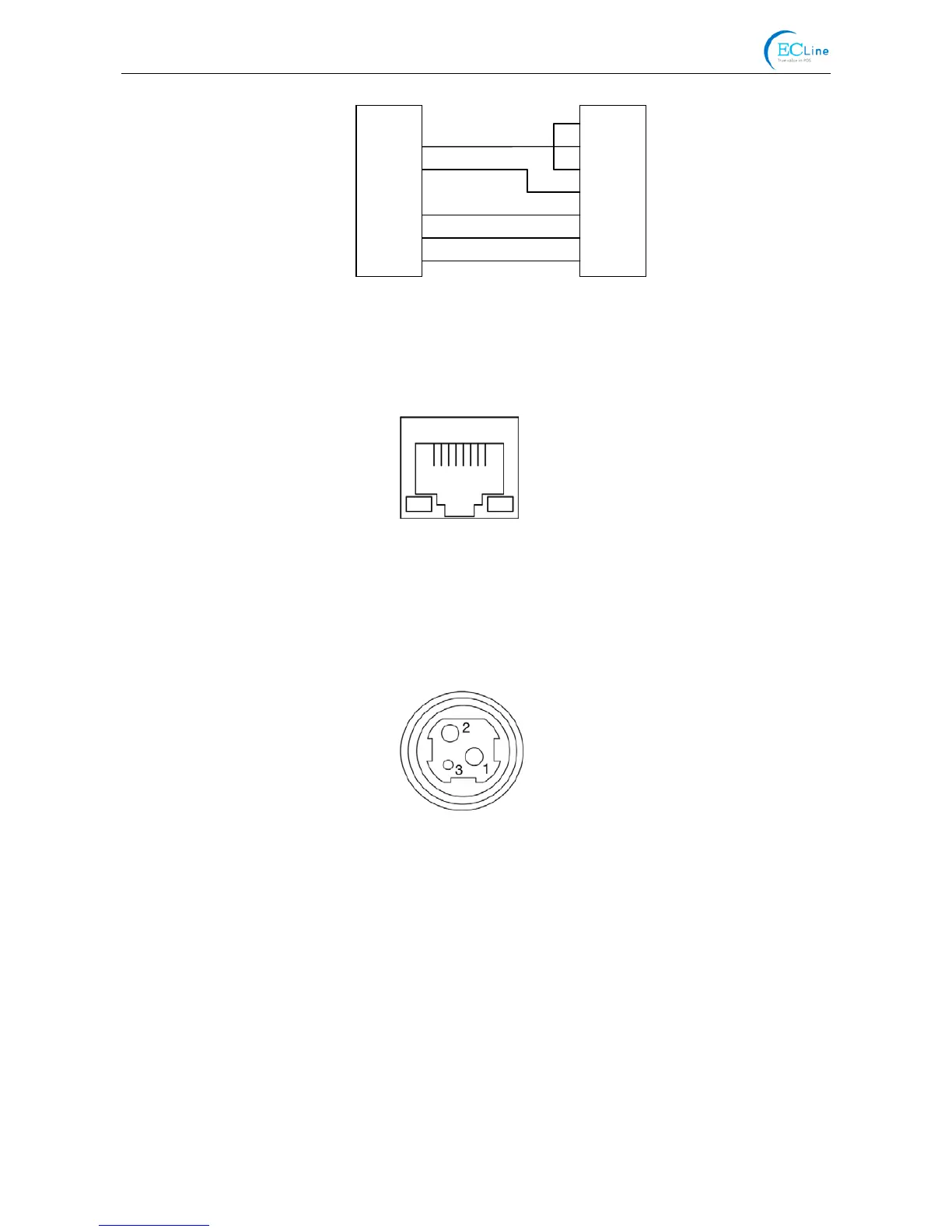

Figure 5-9 Power supply inlet
Figure 5-7 Connecting with 25-Pin PC
Figure 5-8 Ethernet interface
Printer 9PIN connector Host 25PIN connector
DTR
CTS
GND
TXD
RXD
DSR
DCD
CTS
RTS
GND
RXD
TXD
4
8
5
3
2
6
8
5
4
7
3
2
