Mounting instruction
4 . Mount the stud bolt to the main unit.
5 . Insert the main unit into the mounting sleeve
until it locks in place.
6 . F asten the rear of the main unit using either
method [A] or [B].
Select method [A] or [B] to suit the interior configuration
of the vehicle.
7 . Install the bezel on the main unit.

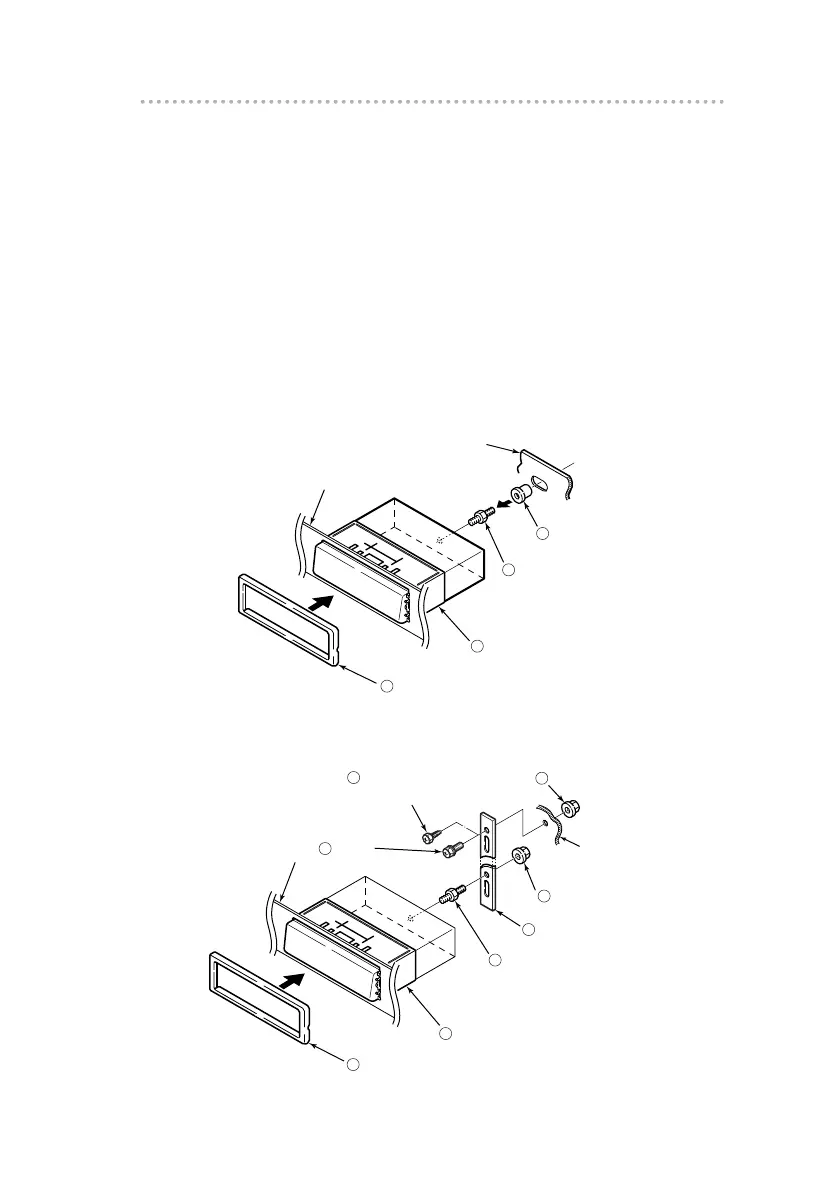

[A]
[B]

TOPTOP
BEZEL
5
MOUNTING SLEEVE
2
STUD BOLT
8
REAR BRACKET
4
SELF TAPPING
SCREW (6 x 16mm)
DASH BOARD
OR CONSOLE
7
NUT (5mm)
METAL OF
VEHICLE
11
BOLT
(5 x 20mm)
10
NUT (5mm)
11

TOPTOP
BEZEL
5
MOUNTING SLEEVE
2
STUD BOLT
8
BUSHING
METAL OF
VEHICLE
DASH BOARD
OR CONSOLE
6
