Eclipse CD8051 - Mounting Instruction; Mounting the Main Unit

Mounting instruction
98
 Mounting instruction

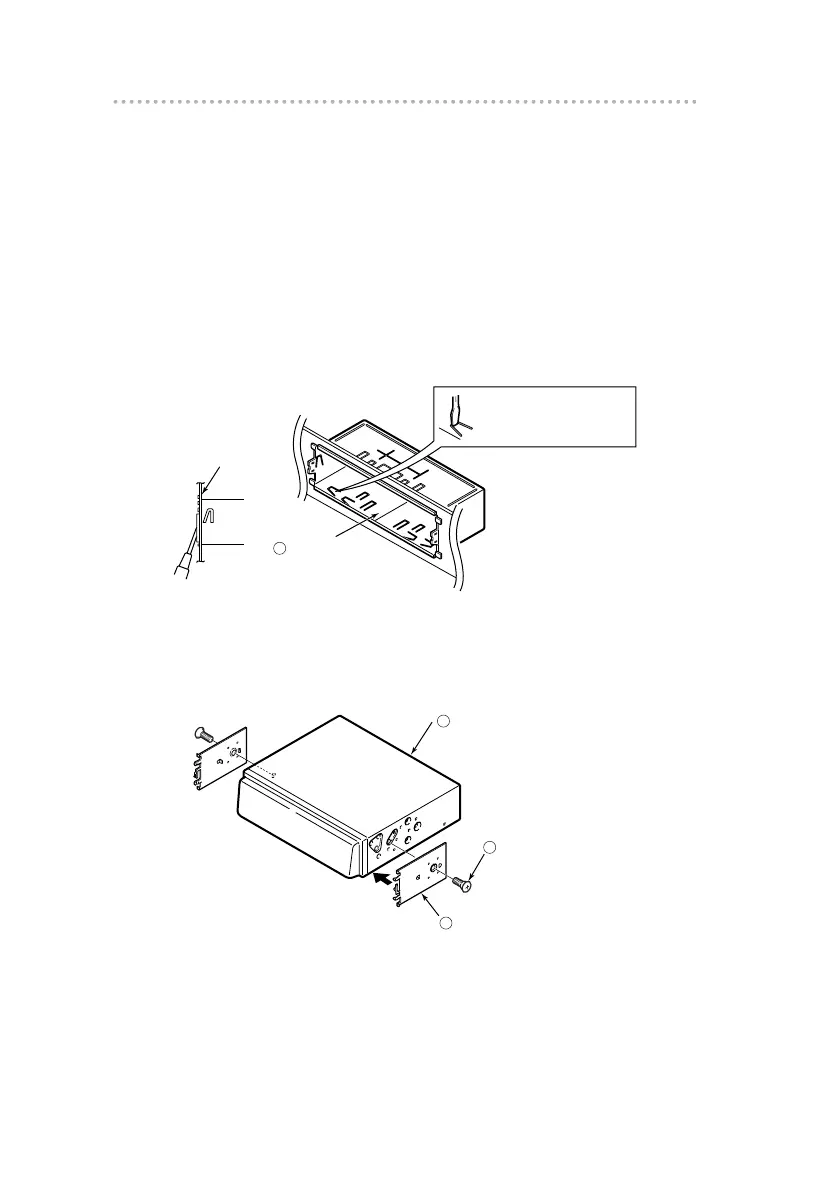

 Mounting the main unit
1 . Insert the mounting sleeve into the opening in
the vehicle console.
2 . Use a screwdriver or the like to bend the tabs in
the mounting sleeve to secure the mounting
sleeve.
3 . Attach the side brackets to the main unit using
flathead screws.
MAIN UNIT1
SIDE BRACKETS [ x 2 ]
3
FLAT HEAD
SCREWS [ x 2 ]
(5 x 8mm)
9
BEND THE MOUNTING
TABS.
DASH BOARD
OR CONSOLE
MOUNTING
SLEEVE
2
