BAT-I2 USER MANUAL
15
Chapter 2

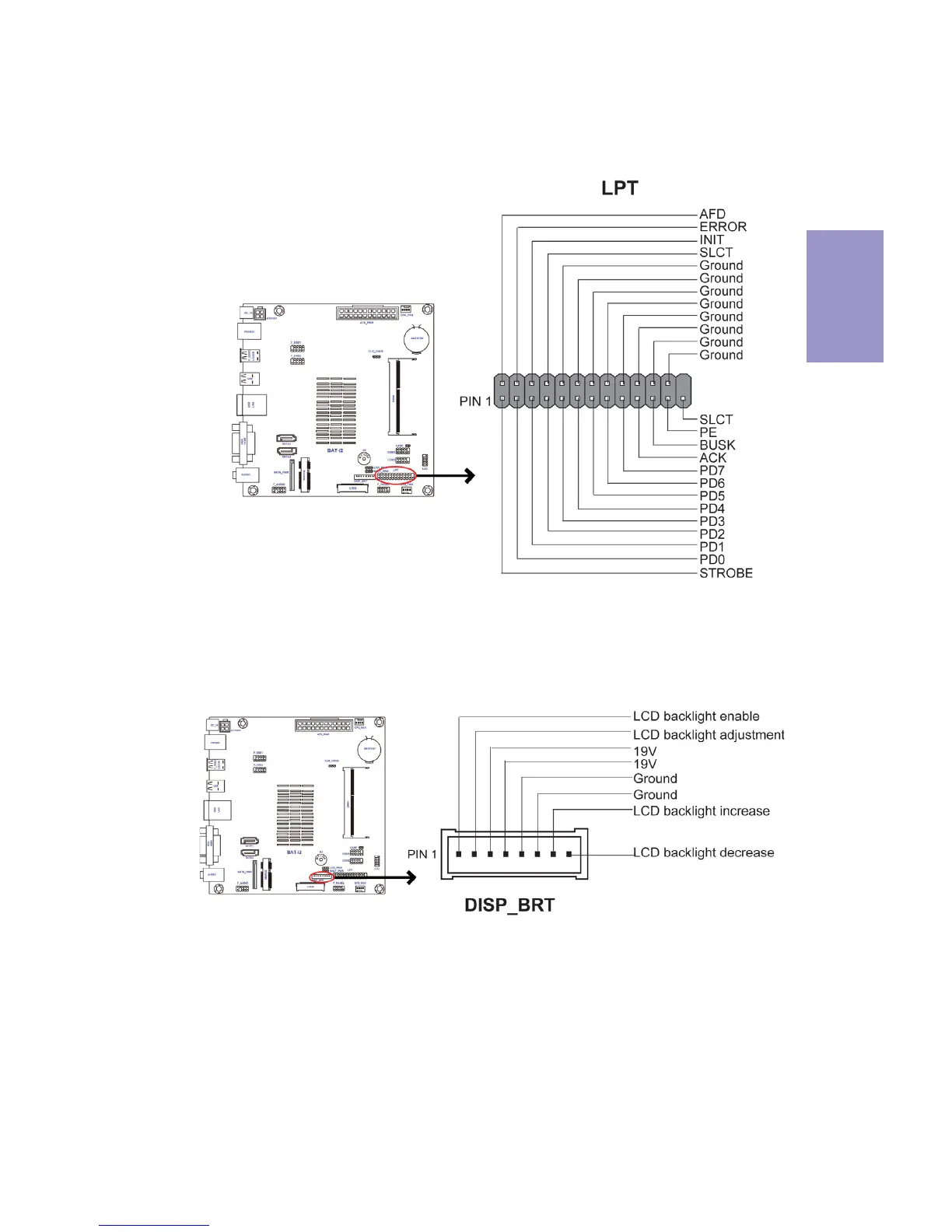

4. LPT: Onboard Parallel Port Header
This header can be used to connect to the printer, scanner or other devices.
5. DISP_BRT: LVDS Brightness Control Header (optional)
