ECS BAT-I2 User Manual

BAT-I2 USER MANUAL
16
Chapter 2

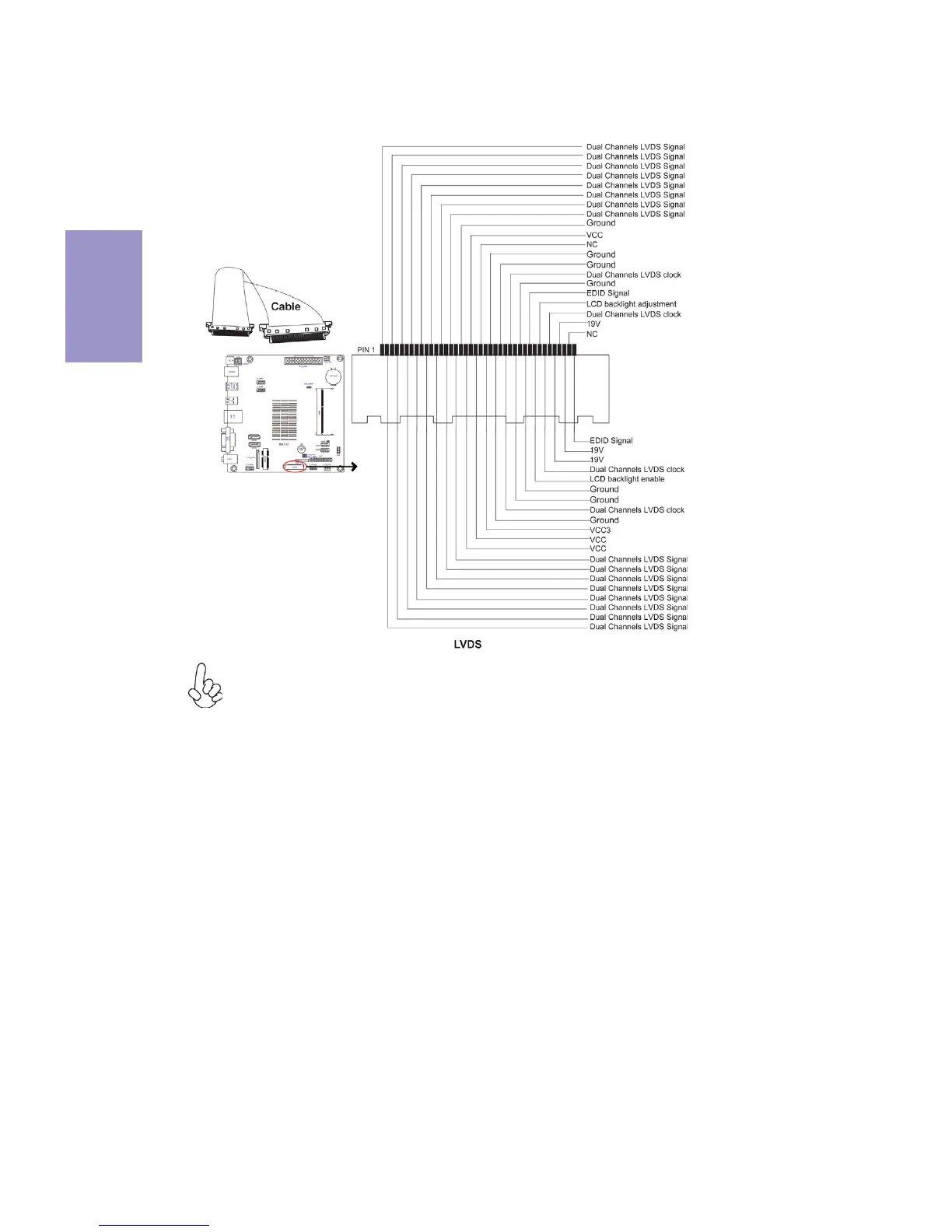

6. LVDS: LVDS Connector (optional)
1. You can connect the large end of the cable to the LED panel, and connect
the other small end to the slot on the motherboard.
2. Due to the chipset limitation, using dual displays LVDS(AIO) + VGA or
LVDS(AIO) + HDMI will cause the problem that you may not enter BIOS setup
or have the display problem.
