18

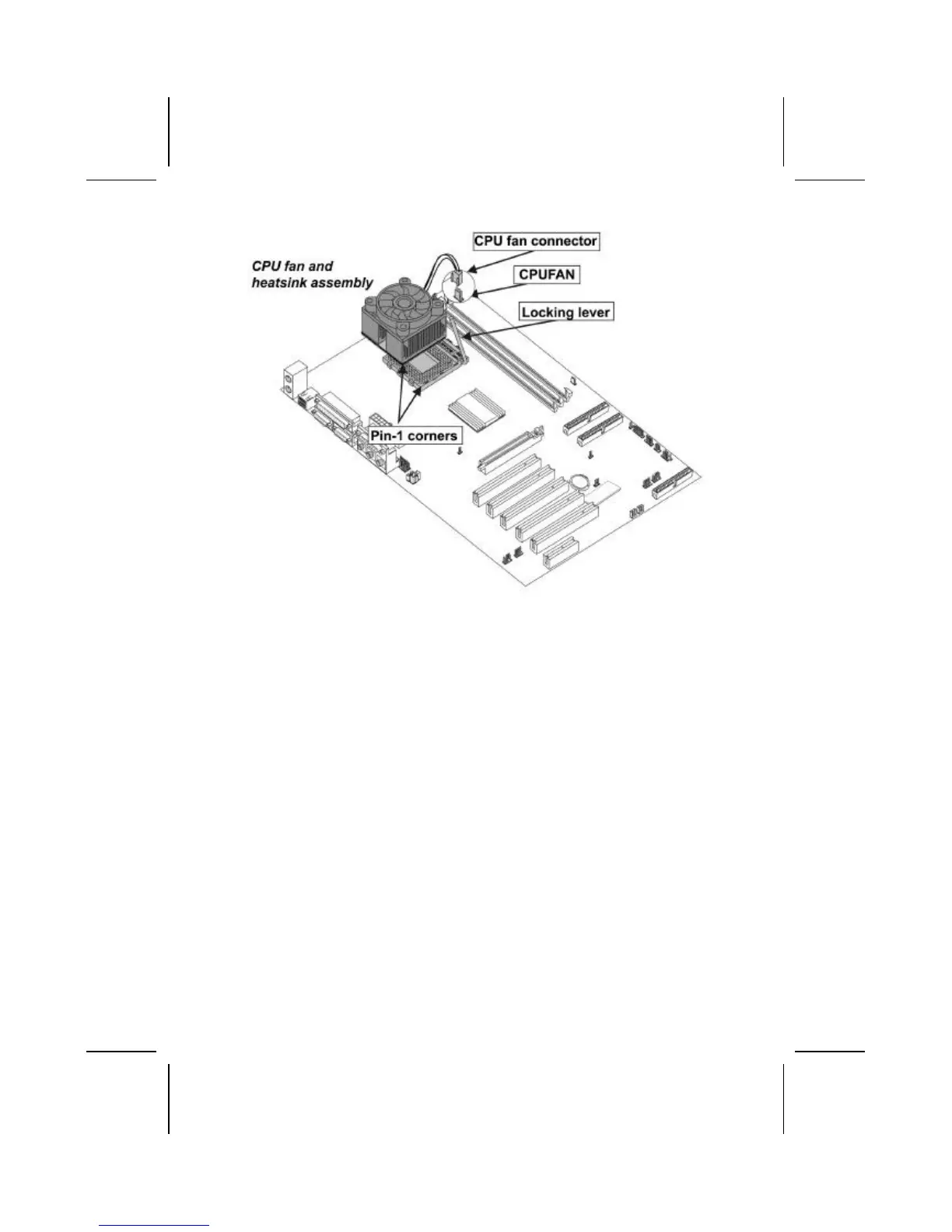

6. Lower the CPU fan/heatsink unit onto the CPU and
CPU socket and then snap the fan/heatsink into place.
7. Plug the CPU fan power cable into the CPU cooling
fan power supply on the mainboard (CPUFAN).
