Setting Jumpers
Jumper Settings

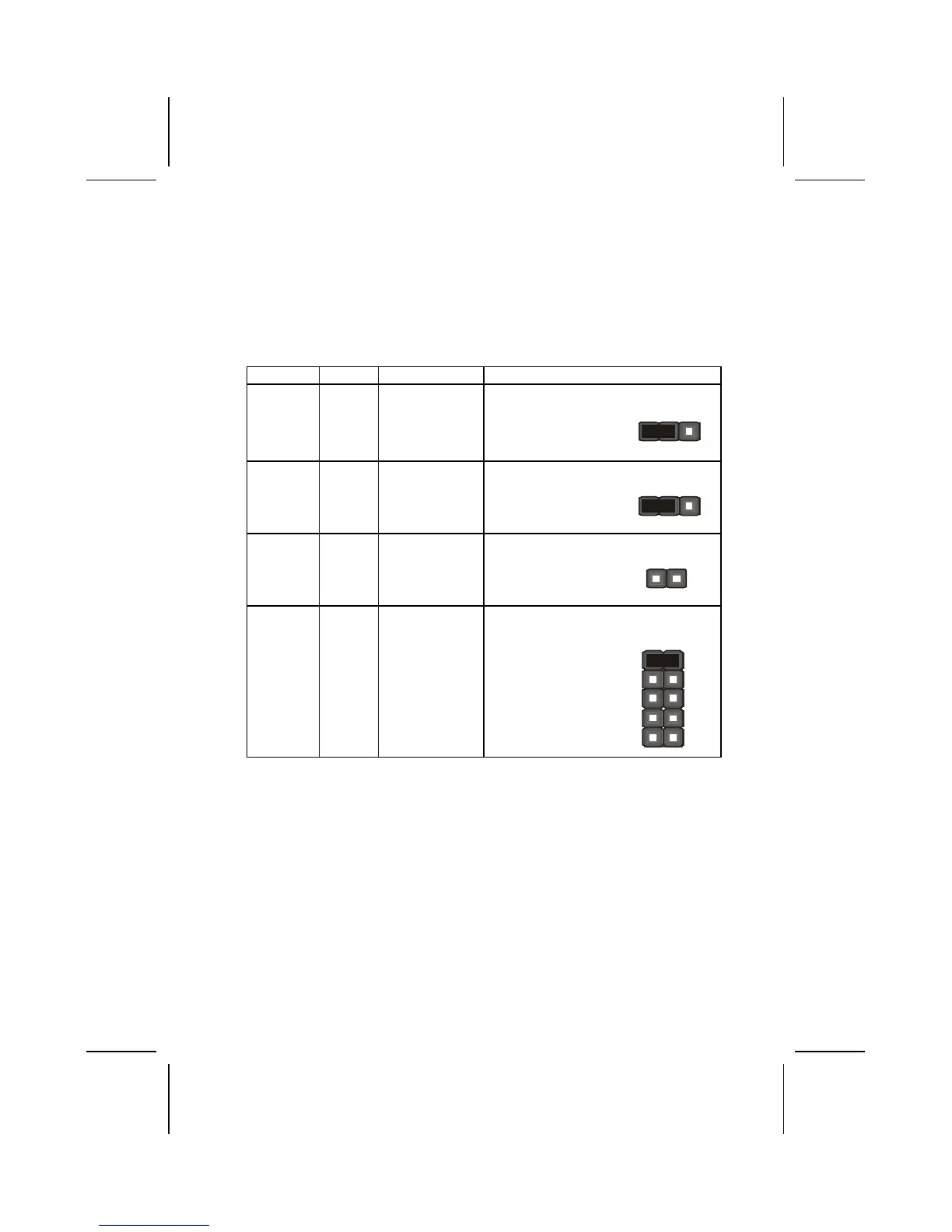

Jumper Type Description Setting (default)
JP1 3 pin Clear CMOS 1-2: Normal
2-3: Clear
JP1
1
JP2 3 pin KB wake-up
function
1-2: Enable
2-3: Disable
JP2
1
JP3 2 pin BIOS protec-
tion
Open: Disable
Short: Enable
JP3
1
FIDJP 10 pin CPU ratio
selector
Refer to next
page
FIDJP
1
