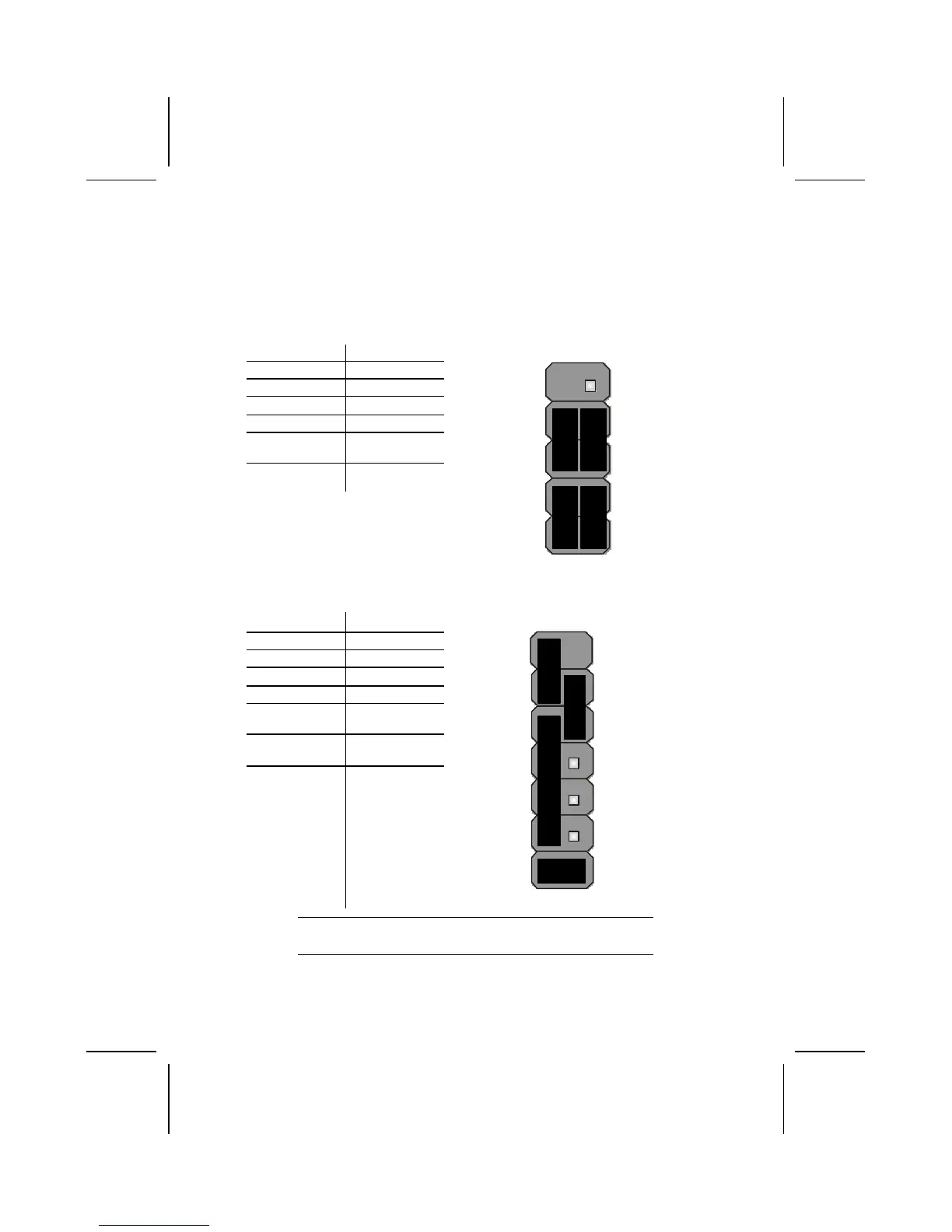

The Panel and LPanel Connectors
The panel connectors provide a set of switch and LED con-
nectors found on ATX or Micro ATX cases. Select one from
the two types of panel connector supported by this mainboard.
PANEL
Device Pins
Empty 10
N/C 9
Power ON/OFF 6, 8
Reset Switch 5, 7
Green LED
Indicator
2, 4
HDD LED +1, -3
HDD LED
(Pins 1, 3)
2 1
Reset Switch
(Pins 5, 7)
Power Switch
(Pins 6, 8)
Green LED
(Pins 2, 4)
Empty
(Pin 10)
10 9
N/C
(Pin 9)
LPANEL
Device Pins
Reset Switch 13, 14
Case Speaker 9 ~ 12
Power Switch 5, 6
Power LED +4
Green Power
LED
-3
Yellow Power
LED
-2
HDD LED +1, -8
HDD LED
(Pins 1, 8)
8 1
Reset Switch
(Pins 13, 14)
Case Speaker
(Pins 9 ~ 12)
Yellow Power LED
(Pin 2)
Empty
(Pin 7)
14 7
Power Switch
(Pin 5, 6)
Green Power LED
(Pin 3)
Power LED
(Pin 4)
Note: The plus sign (+) indicates a pin which must be con-
nected to a positive voltage.
