Rotation Z
Rotate the image by the Z-axis of the activated window.
New Volume
End the 3D volume sweeping and return to the pre-3D
interface
Exit
Exit 3D
MPR
Review
MPR (multi-planar reconstruction) review function. After this
button is activated, the 3D volume is hidden and two
perpendicular lines appear on the selected quadrant. These
two lines are color matched with the other 2 MPR quadrants
and show where the three planes intersect. Move trackpad
left/right or up/down to change location of lines and
intersection on the MPR’s. Moving one line will move the
other perpendicular line.
3D Tint
Select 3D tint.
MPR Tint
Select MPR tint.
eFace
Press to show the baby face automatically. Only available in
Surface render mode.

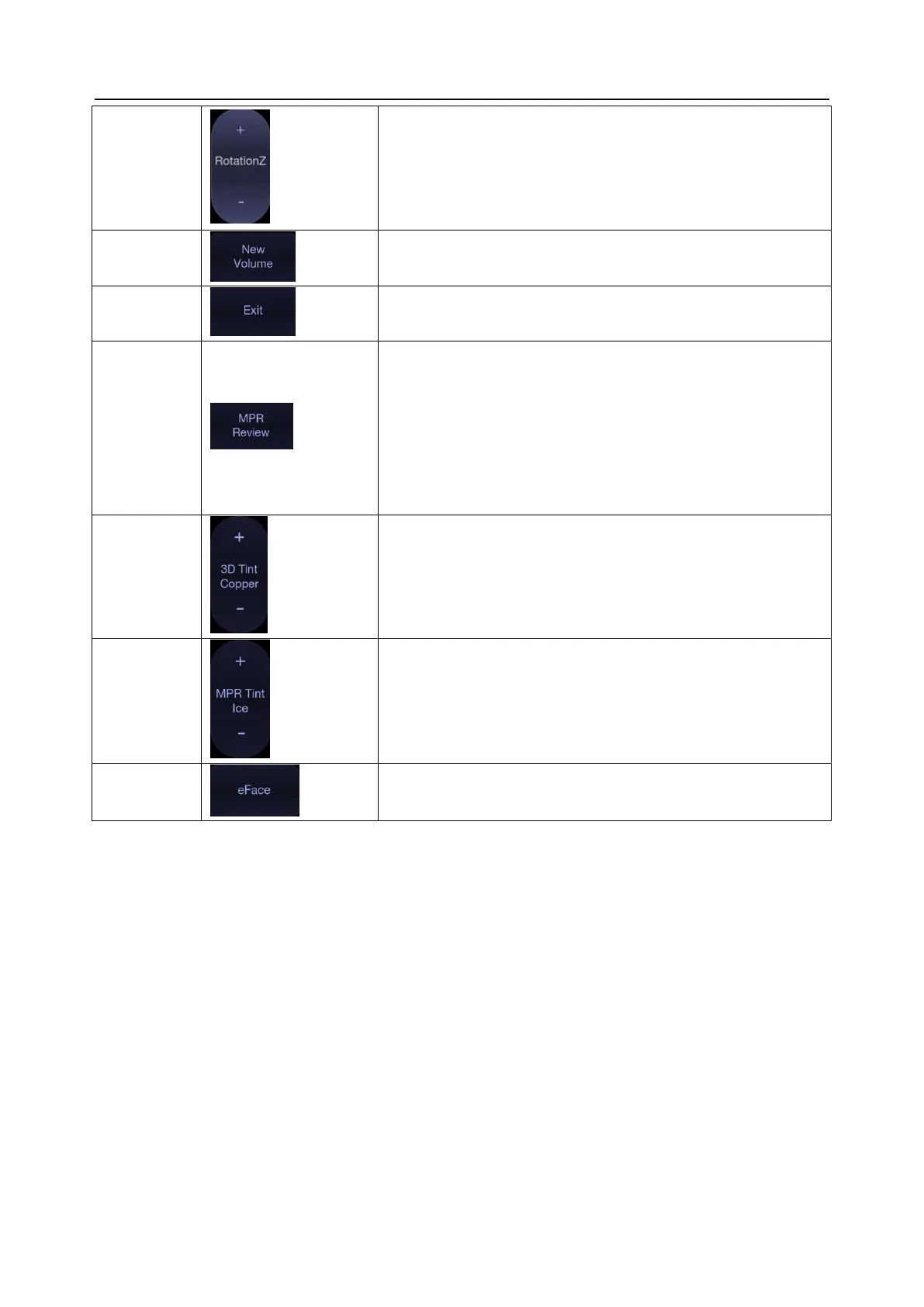

Table 5-8 Volume imaging Mode Touch Screen
