SONOTRAX(2009) Series Ultrasonic Pocket Doppler User Manual
32

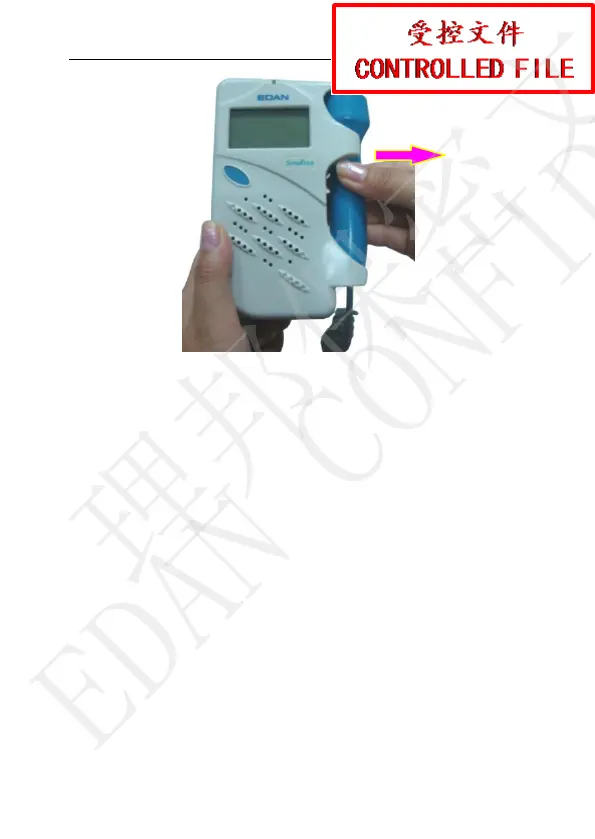

Figure 3-4 Taking out the probe
(2) Placing the probe
Hold the main unit with one hand. Pinch the probe
and align it with the probe holder. Push the probe
inwards using mild force until it clicks in position.
