VE-H100B Veterinary Pulse Oximeter User Manual
- 20 -

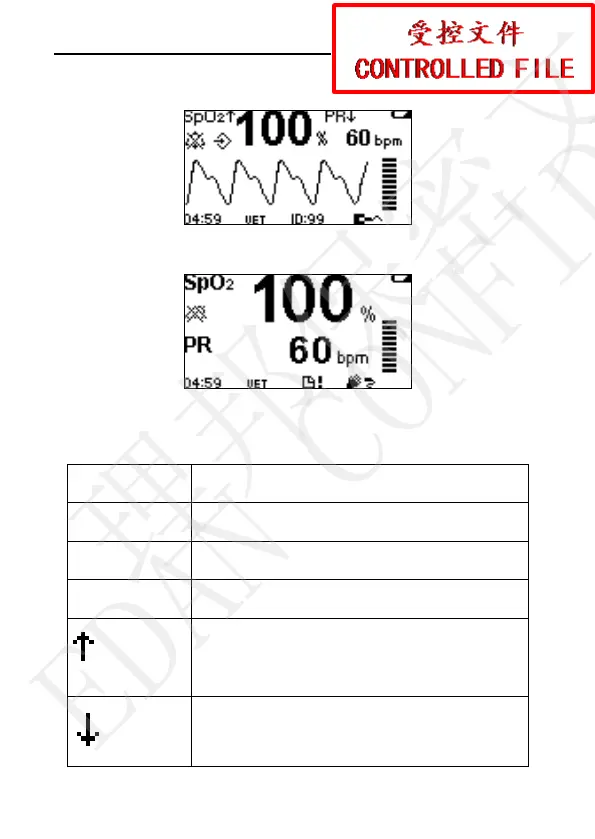

2.2.1 Symbols on Screen
Figure 2-2 Waveform Mode
Figure 2-3 Large Numeric Mode
Icons on the screen and their meanings:
SpO
2
SpO
2
value display area
100%
Measured SpO
2
%
PR
Pulse Rate value display area
60 bpm
Measured Pulse rate (bpm)
Displays when measurement value is higher
than the upper alarm limit
Displays when measurement value is lower
than the lower alarm limit
Parameter Area
Information Area
Large Numeric display
Information Area
