2.2.3 Rear Panel
Figure 2-5 Rear Panel
2.3 Connecting Sensor or Cable

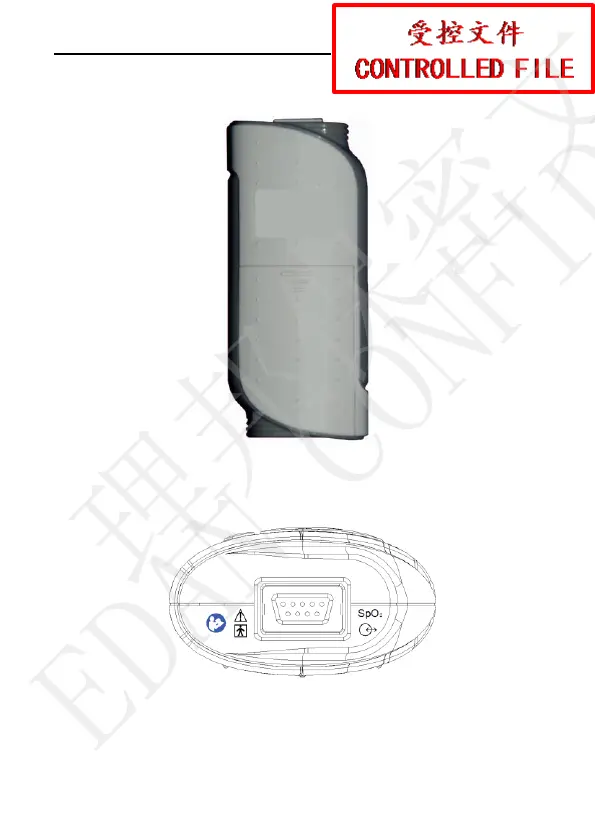

Figure 2-6 Sensor and Cable Connecting Port
SpO
2
Sensor and cable port is at the top of the oximeter. An
extension cable can be used between the oximeter and the SpO
2
Battery compartment
Label
SpO
2
sensor port
or cable port
