VE-H100B Veterinary Pulse Oximeter User Manual
- 29 -
To install the Ni-MH rechargeable battery package:
1. Make sure the oximeter is turned off.
2. Press the battery compartment latch and remove the battery
access door.

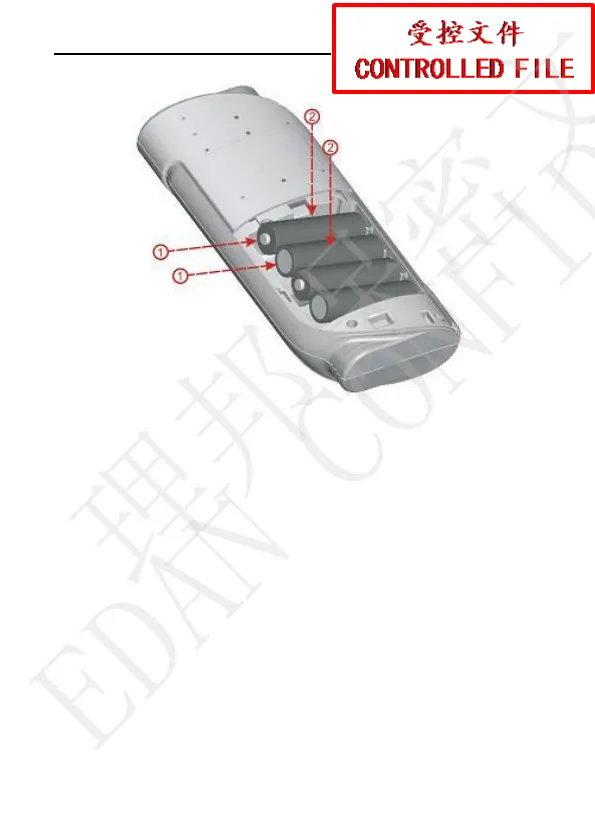

3. Place the Ni-MH rechargeable battery package as shown in
the follow figure, first push it oriented as ①, then press it oriented
as ②.
4. Install the battery compartment cover.
