• Connect the ECTANE 3 to a network or to other instruments via the Ethernet
connector.
• Estimated battery remaining life display of the 2 removable batteries.
• Connect ECT probes via the 4 pin connector
• Connect RFT, NFT and MFL probes via the 19 pin connector.
• Connect IRIS probes via the BNC connector.
The Ectane 3 comes with one of eight different front plates:
• Ectane 3 E (without SmartMUX)
• Ectane 3 E64 and E128
• Ectane 3 E256
• Ectane 3 I
• Ectane 3 ERNM (without SmartMUX)
• Ectane 3 ERNMI (without SmartMUX)
• Ectane 3 E64RNM and E128RNM
• Ectane 3 E64RNMI and E128RNMI
The following figures demonstrate each of the eight variations.

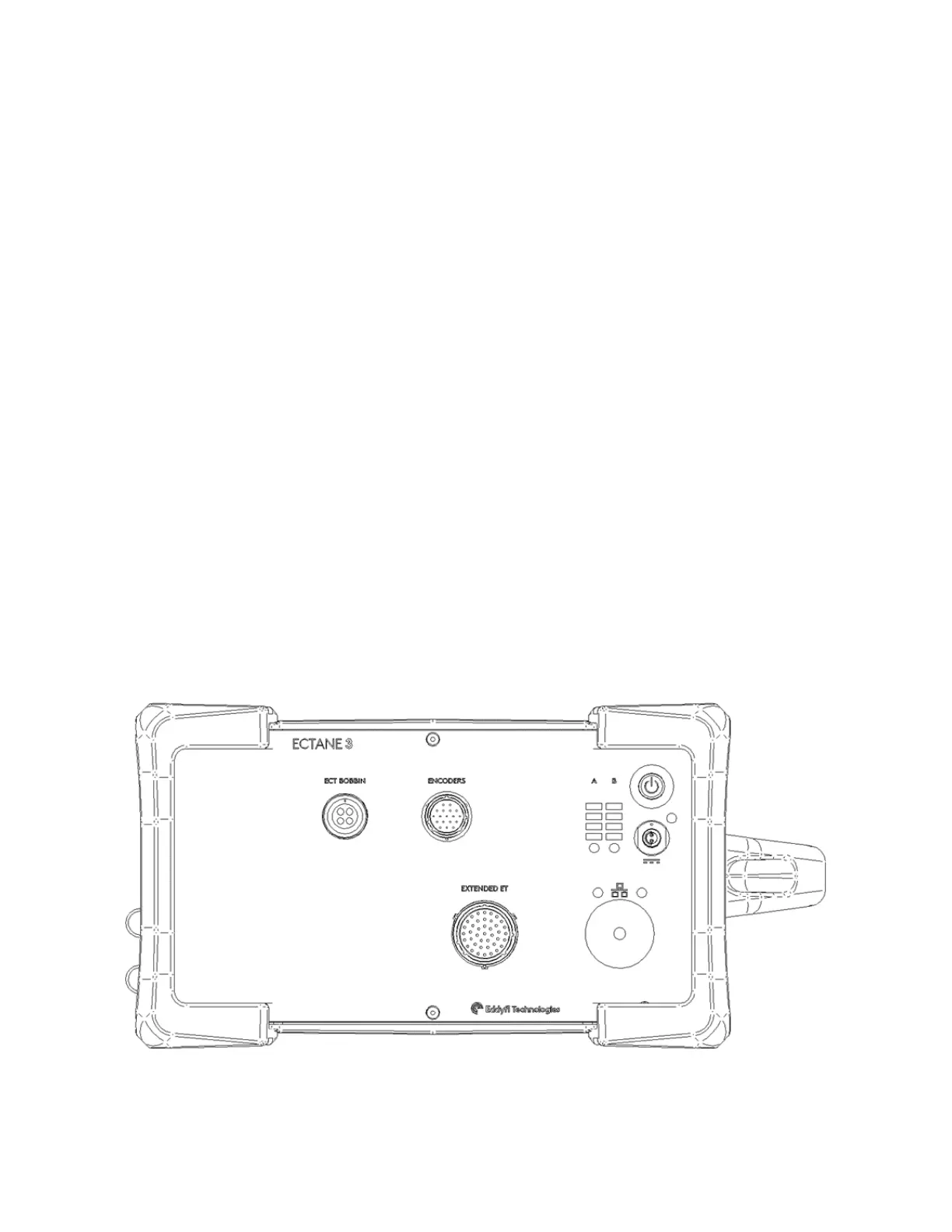

Figure 4-1 - Ectane 3 E
