3. ENCODERS Connector (18 pins)
The ENCODERS connector allows the instrument to send and receive various signals such as
the acquisition start and stop commands, the encoder and rotation synchronization signals,
the relay outputs, etc.
Description
18-pin, female, shell 14 connector
Manufacturer, number
Amphenol 58-570124-18S
Suggested cable connector
ITT Cannon, KPT06B14-18P
or
Amphenol PT06J-14-18P

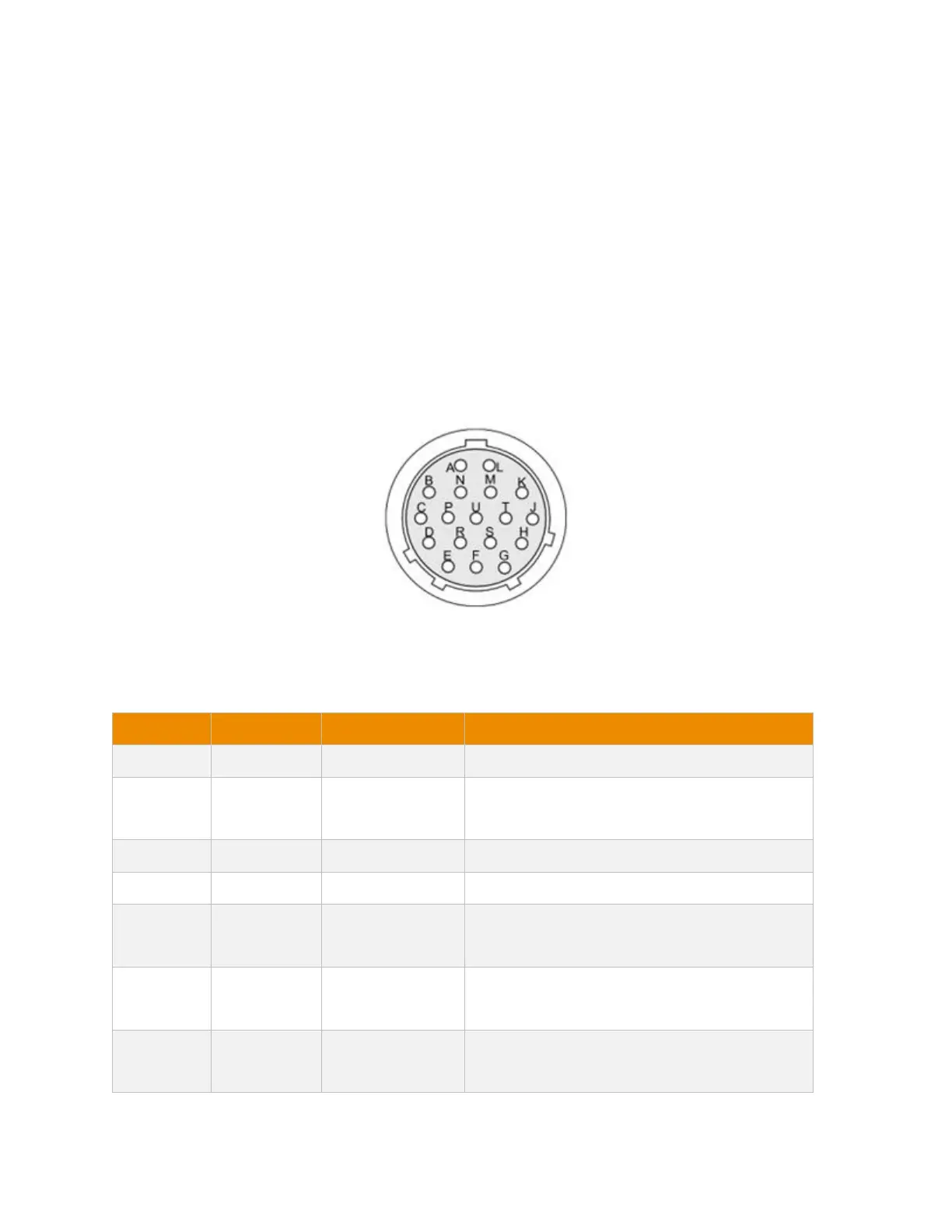

Figure 3-1 – Encoders connector
Table 4 – Encoders connector pinouts
Pin
I/0
Signal
Description
A
TTL Input
Φ B1
Phase B axis 1
B
Output
CLK_ACQ_OUT
Acquisition clock output (open drain with
(open drain with 10 kΩ pull-up)
C
TTL Input
Φ A2
Phase A axis 2
D
-
GND
Encoders ground
E
TTL Input
Input 1
User-defined input for software and
hardware function activation
F
TTL Input
Input 3
User-defined input for software and
hardware function activation
G
TTL Input
Input 2
User-defined input for software and
hardware function activation
