6. Ethernet Connector
The Ethernet connector is used to connect the Ectane 3 to a workstation through an Ethernet
link. Eddyfi supplies a high-quality, military-grade circular Ethernet connector and cable.
International Ethernet standards are used.
Description
RJ45, female connector
Manufacturer, number
PEI Genesis, Amphenol
RJF22B00SCC

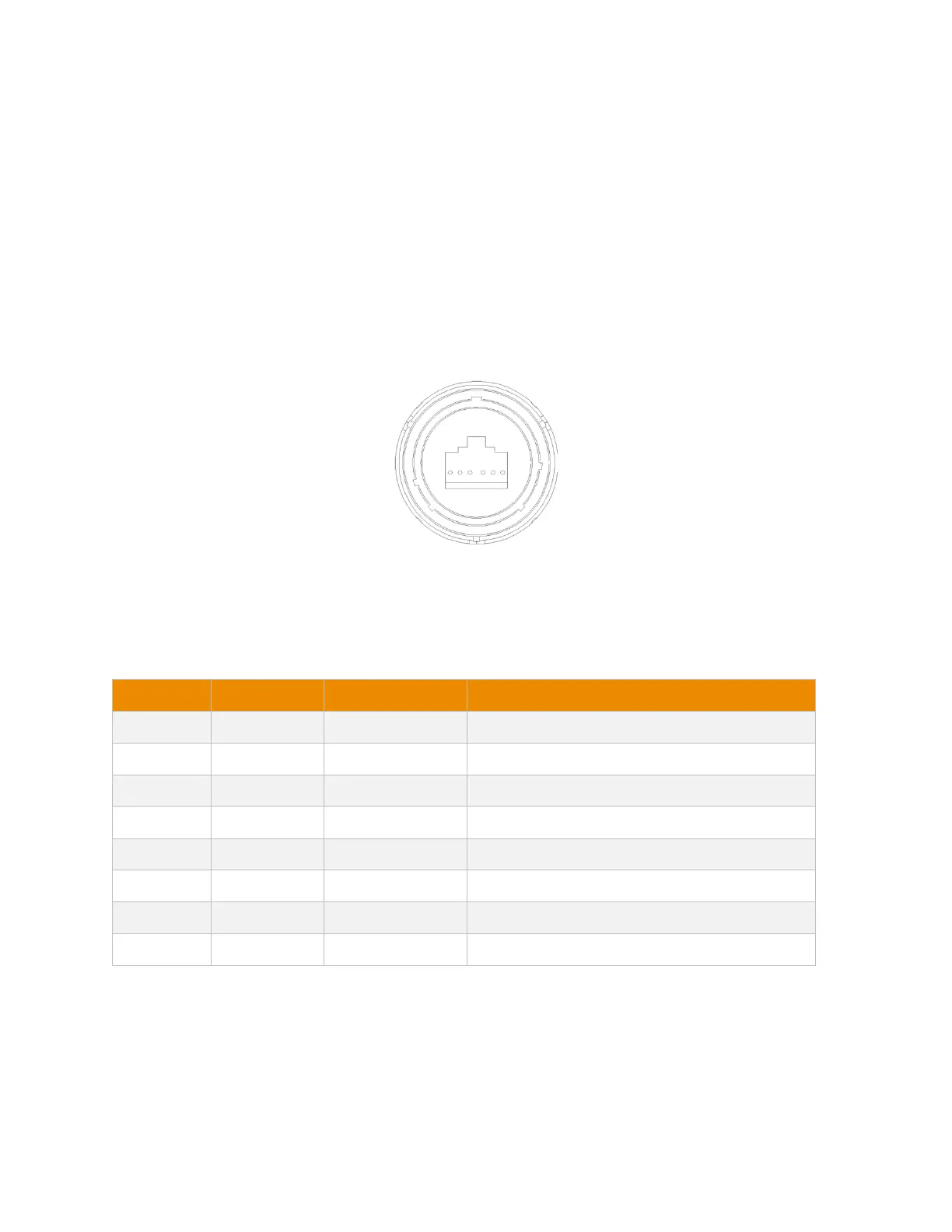

Figure 6-1 – Ethernet connector
Table 6 – Ethernet connector pinouts
Pin
I/0
Signal
Description
1
Bidirectional
Bi DA+
Bidirectional pair A+
2
Bidirectional
Bi DA-
Bidirectional pair A-
3
Bidirectional
Bi DB+
Bidirectional pair B+
4
Bidirectional
Bi DC+
Bidirectional pair C+
5
Bidirectional
Bi DC-
Bidirectional pair C-
6
Bidirectional
Bi DB-
Bidirectional pair B-
7
Bidirectional
Bi DD+
Bidirectional pair D+
8
Bidirectional
Bi DD-
Bidirectional pair D-
IMPORTANT The Ectane 3 must be linked to a workstation with at least a category 5e,
shielded, Ethernet cable.
