30

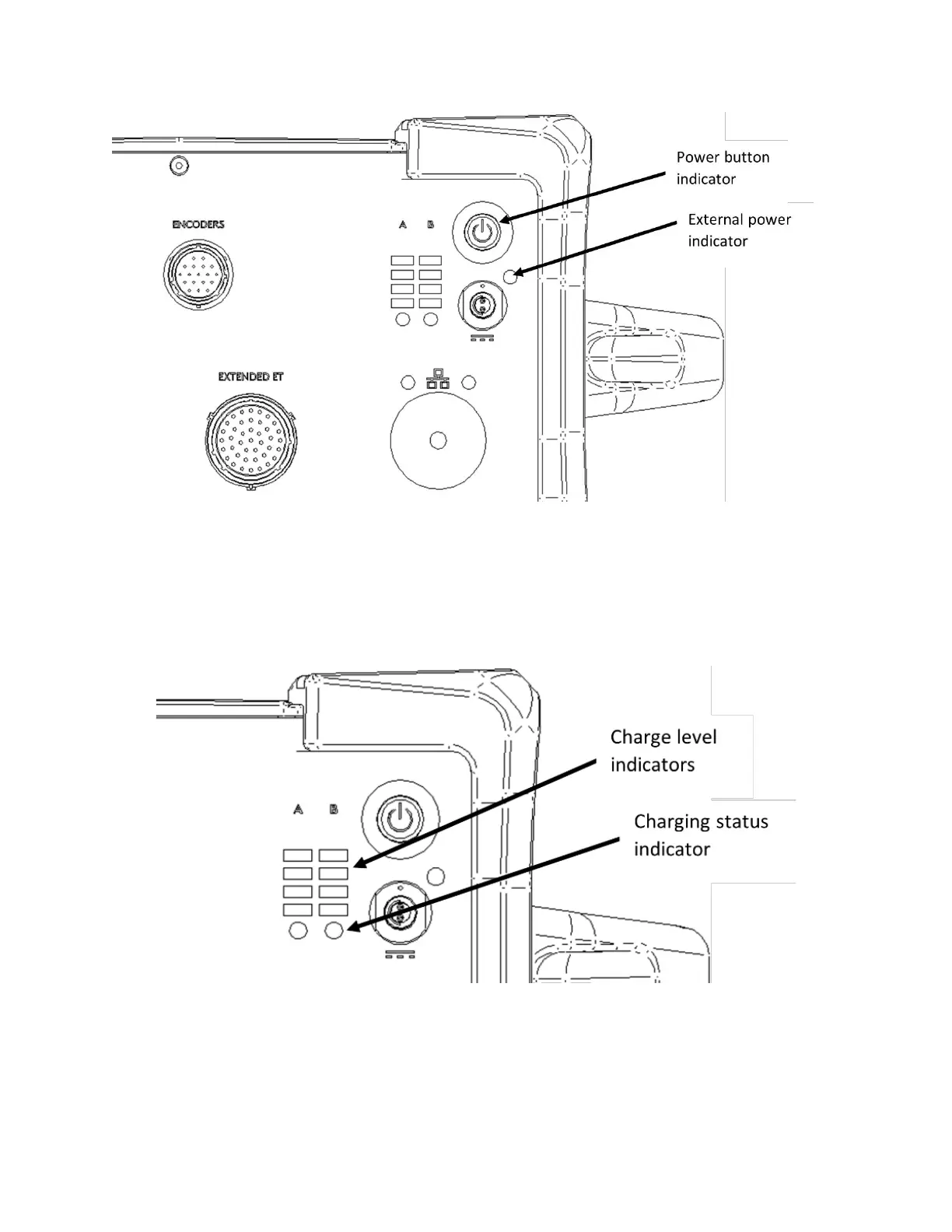

Figure 5-1 - Power indicators
6. Battery Indicators
Each battery has its own charge level indicator and charging status indicator.
Figure 6-1 - Battery B indicators
