5. Carrying Handle
The handle on the Ectane 3 can be used to lift and carry the instrument.

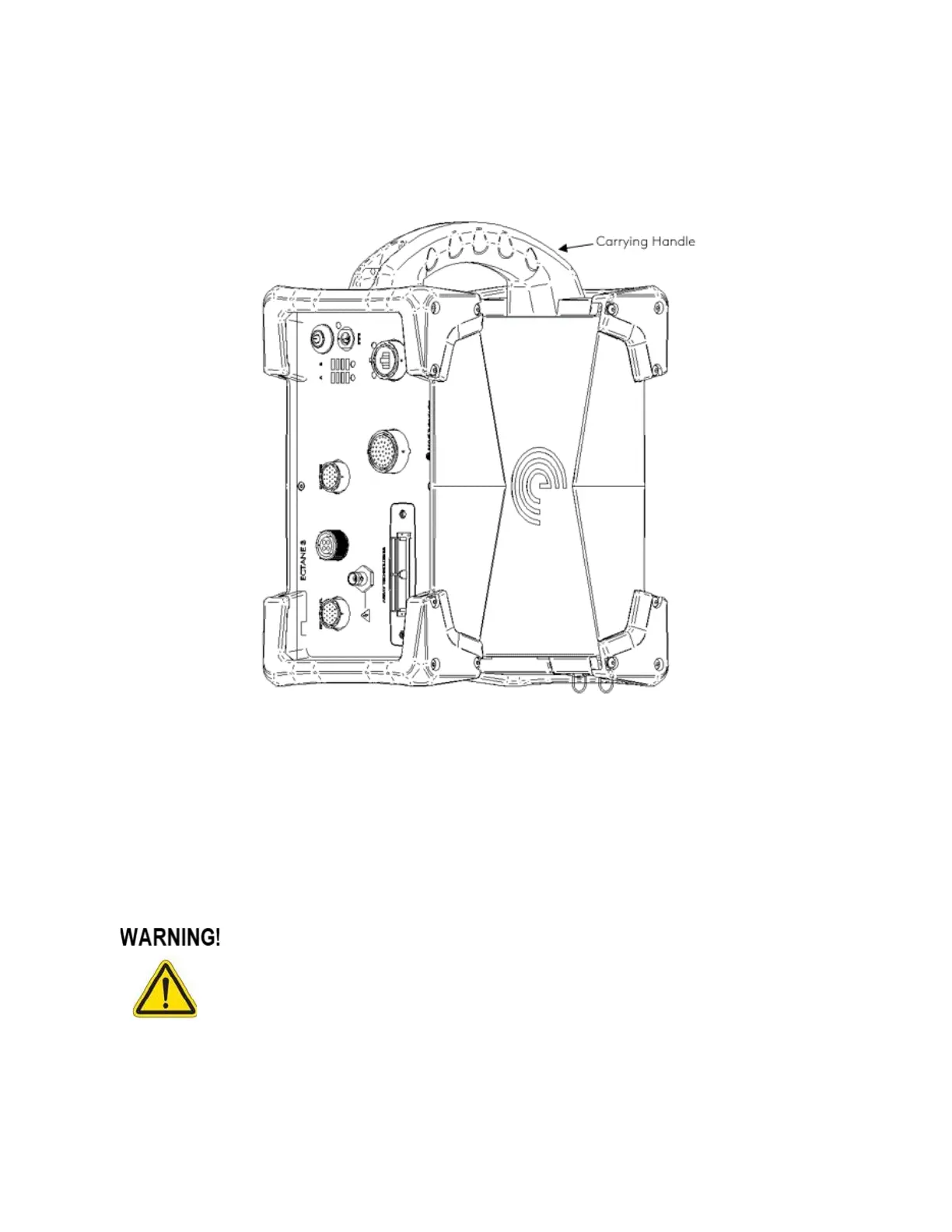

Figure 5-1 – Carrying handle
6. Chassis Ground Connector
The ground connector, which is used to ground the Ectane 3’s chassis when the situation
requires it, is found at the rear of the instrument.
This instrument must be connected according to the manufacturer’s
instructions to prevent risks of electric shocks. A bad grounding may
produce a short circuit that can damage the electronic components
or cause electric shocks.
