2. ECT BOBBIN Connector (4 pins)
The ECT BOBBIN connector allows you to connect standard 4-pin inspection probes.
Description
4-pin, female, shell 14 connector
Manufacturer, number
Amphenol ACS02A-14S-2S (472)
Suggested cable connector
Amphenol 97-3106A-14S-2P

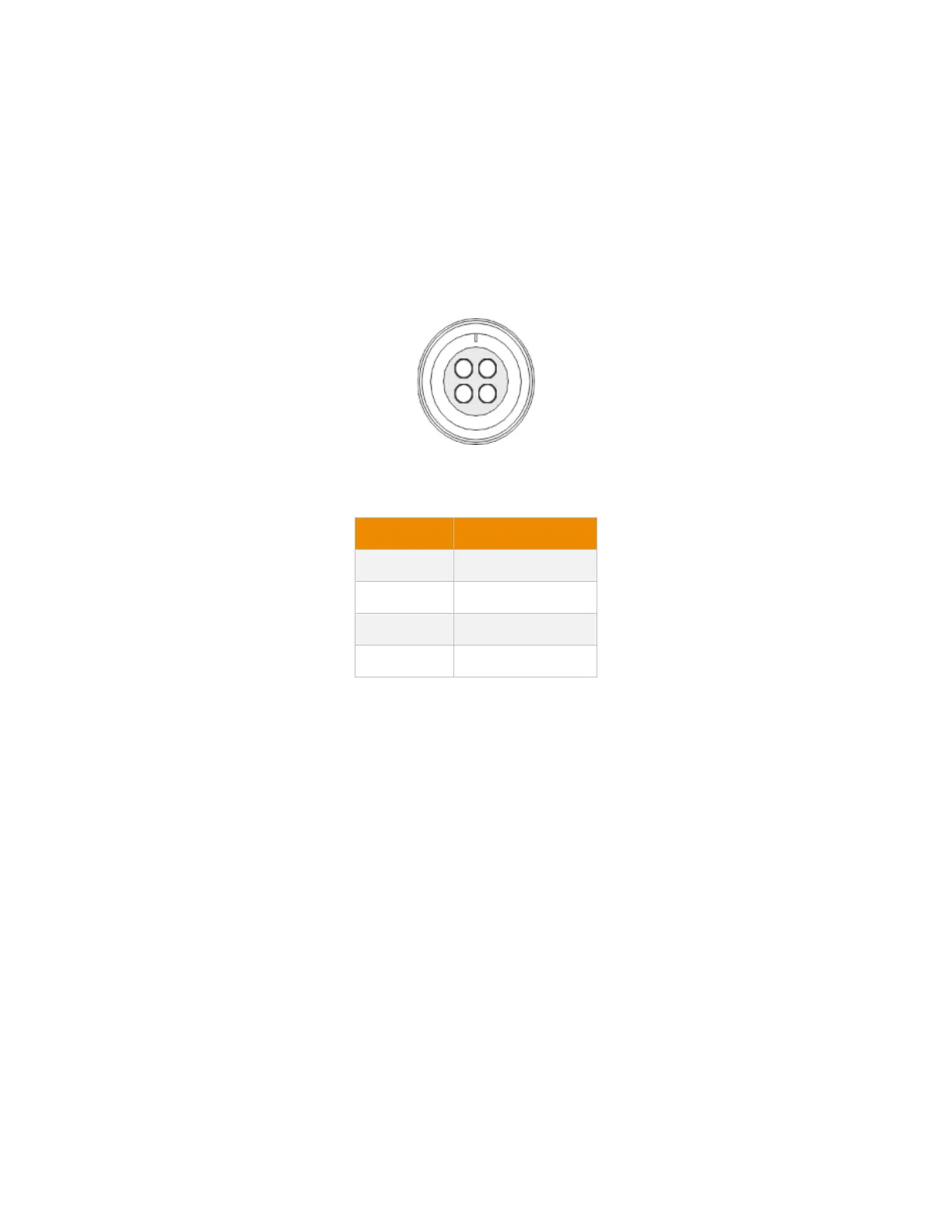

Figure 2-1 – ECT Bobbin connector
Table 3 ECT Bobbin connector pinouts
Pin
Signal
A
Bobbin Abs/Diff
B
Bobbin Diff
C
GND
D
GND
