Eddyfi Technologies Ectane 3 - Iris Connector

48
4. IRIS Connector
The IRIS connector allows the instrument to control IRIS probes using the ultrasound
technology.
Description
BNC Adapter, bulkhead, 50 Ω
Manufacturer, number
Amphenol RF - AD-BNCJBNCJ-4
Suggested cable connector
POMONA, 2249-C-120

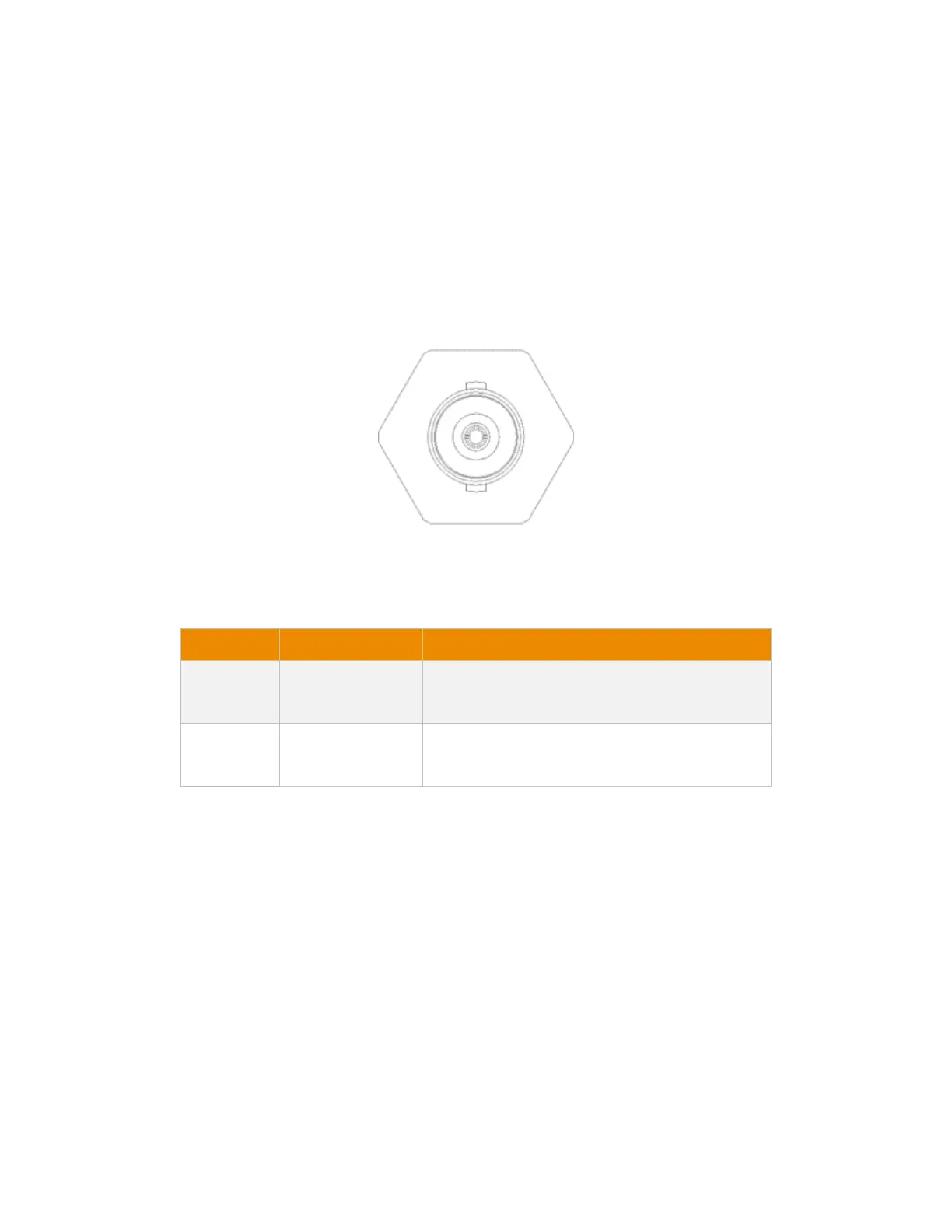

Figure 4-1 – IRIS connector
Table 5 – IRIS connector pinouts
Pin
Signal
Description
Center
Pulser output
Receiver input
Ultrasound pulser outputs and ultrasound
receiver input
Shell
Ground
Power supply common to instrument
casing
