37
4. Removing the Batteries
The batteries can remain in the Ectane 3 if so desired. However, there are times when you
must remove them from Ectane 3 (e.g., for calibration purposes or before placing the
instrument on an airplane).
To remove the batteries:
1. Turn each screw of the battery compartment door counter-clockwise a quarter of a
turn.
2. The battery compartment door pops out.
Screws

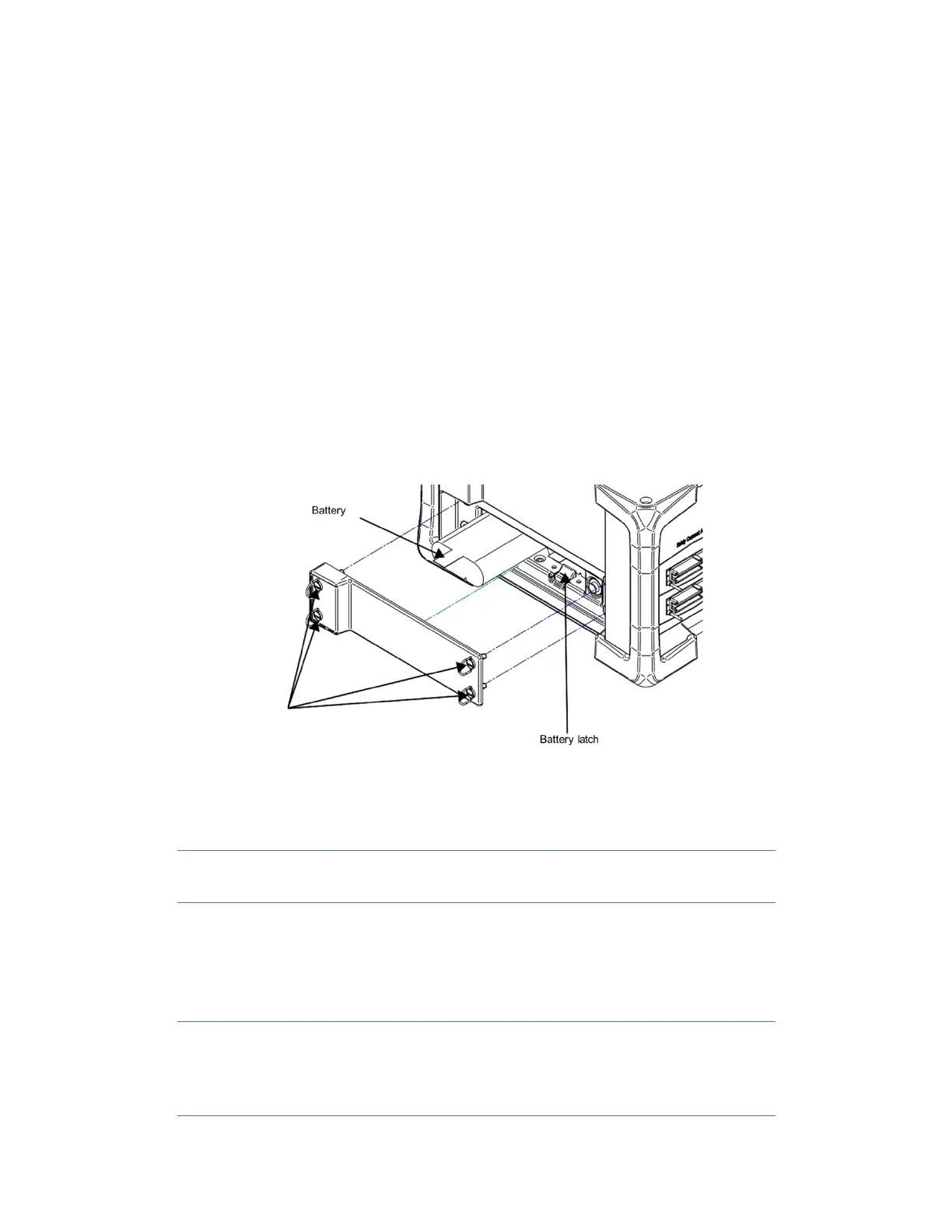

Figure 4-1 - Opening the battery compartment door
Note
The screws are attached to the compartment door.
3. Press down the latch holding the battery in place.
4. Pull the battery tab. The battery slides out.
Note
The battery compartment is designed to hold the batteries
firmly. You may need to use a certain amount of force to pull
the batteries out.
