Chapter 3
| Switch Chassis
How to Install the Switch on a Shelf or Desktop
– 27 –
How to Install the Switch on a Shelf or Desktop
The switch can be installed on any flat surface such as a desktop or shelf. To mount
the switch on a flat surface, follow these steps:
1. Attach the four adhesive feet to the bottom of the first switch.

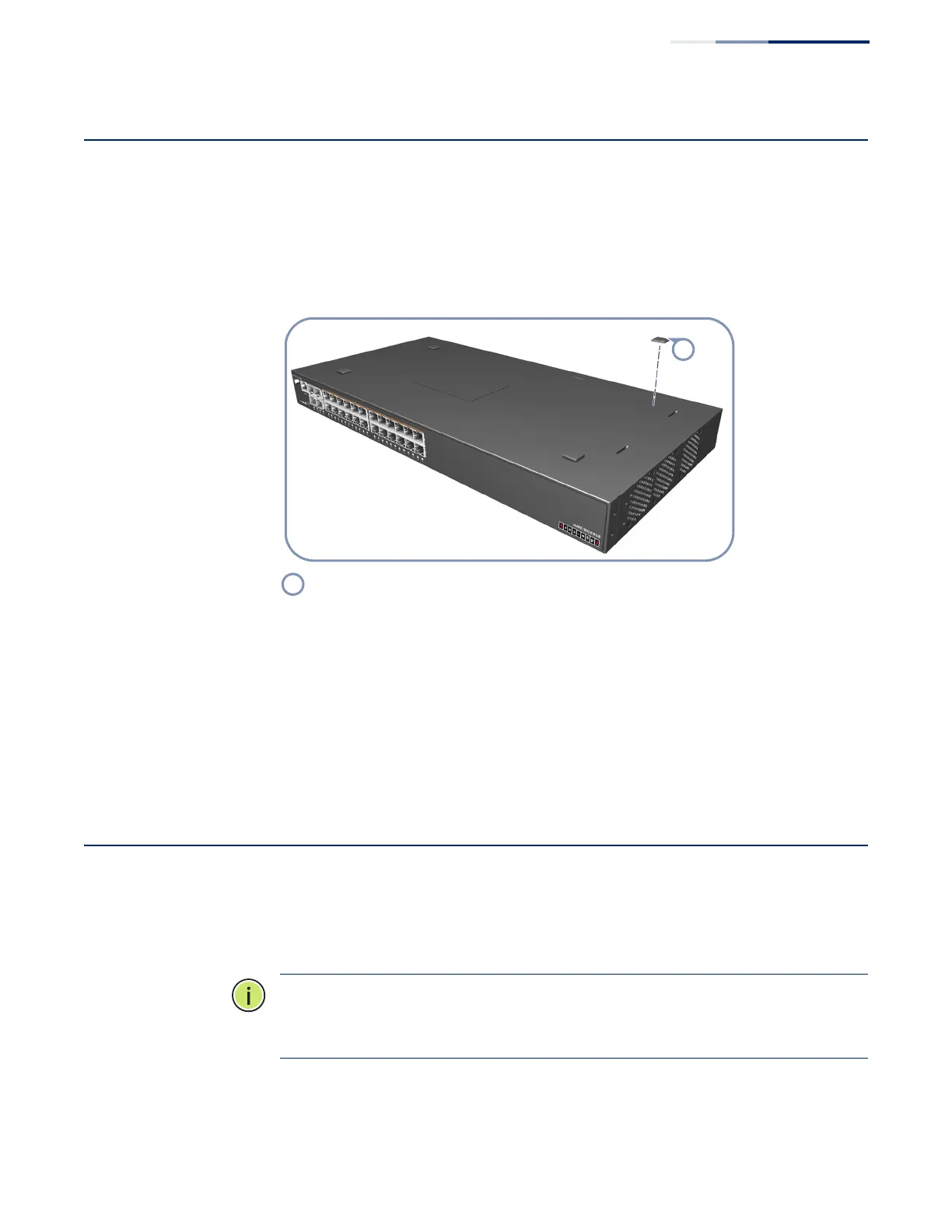

Figure 14: Attaching the Adhesive Feet
2. Set the device on a flat surface near an AC power source, making sure there are
at least two inches of space on all sides for proper airflow.
3. If installing a single switch only, go to “How to Connect to AC Power” on
page 31.
4. If installing multiple switches, attach four adhesive feet to each one. Place each
device squarely on top of the one below, in any order.
How to Install the External Power Supply
If you have purchased an optional External Power Supply (EPS460W) and Chassis
(PS3000), follow the instructions below to connect it to the ECS2100-28PP and to
AC power.
Note:
The ECS2100-28PP default PoE power budget is 370 W, by purchasing an
External Power Supply kit, the ECS2100-28PP can extend its PoE power budget up
to 740 W.
