Chapter 5
| Port Connections
How to Connect to SFP/SFP+ Fiber Optic Ports
– 42 –

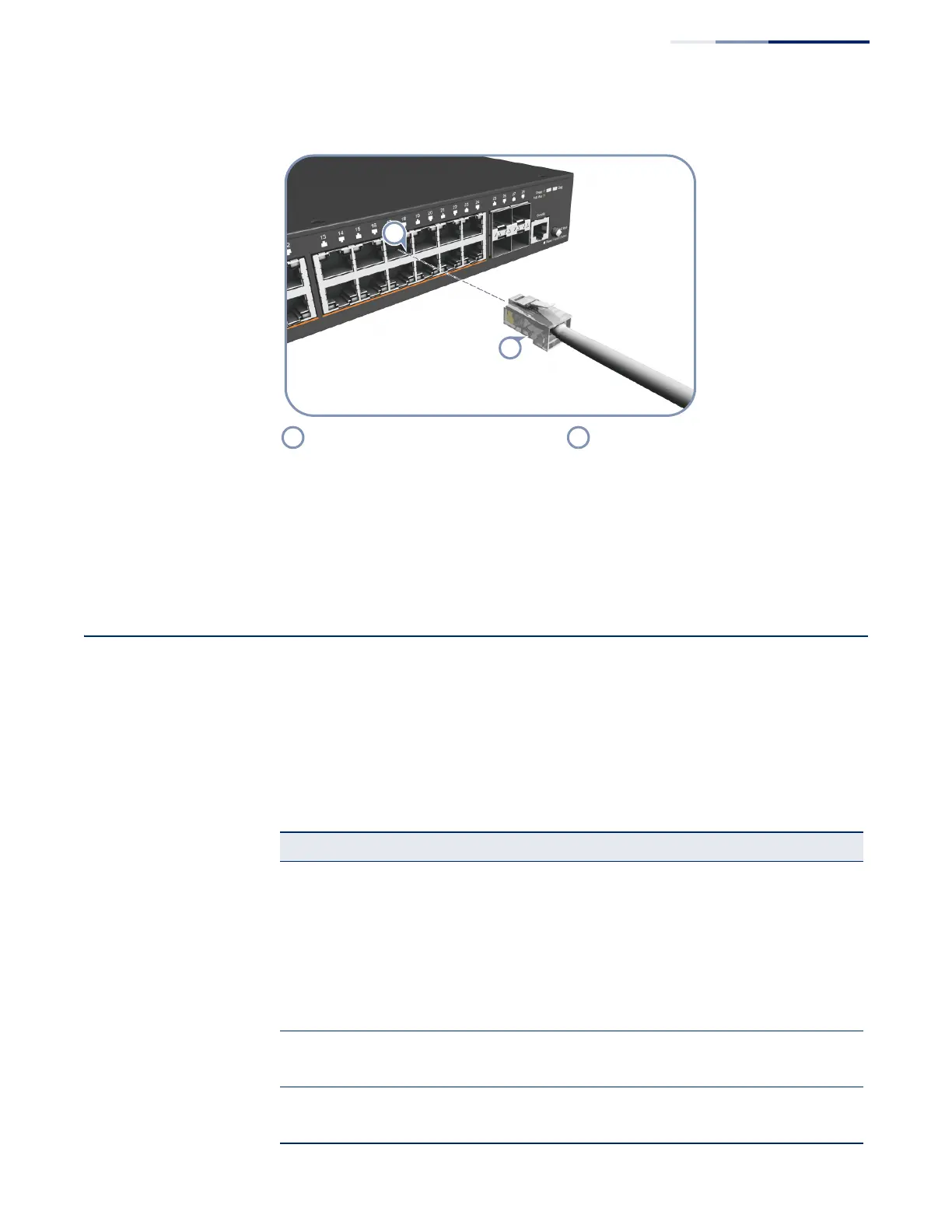

Figure 22: Making Twisted-Pair Connections
1. Attach the other end to an available port on the switch. Make sure each twisted
pair cable does not exceed 100 meters (328 ft) in length.
2. As each connection is made, the Link LED (on the switch) corresponding to
each port will turn on green to indicate that the connection is valid.
How to Connect to SFP/SFP+ Fiber Optic Ports
The switch provides up to four slots for SFP+ or SFP-compliant fiber-optic
transceivers.
Note that all SFP+ slots operate at 10 Gbps or 1 Gbps full duplex. All SFP slots
operate at 1 Gbps or 100 Mbps full duplex.
1000BASE-T RJ-45 Port Category 5, 5e, or 6 Cable
Table 8: Maximum 10 Gigabit Ethernet Fiber Cable Lengths
Fiber Size Fiber Bandwidth Maximum Cable Length Connector
10GBASE-SR
62.5/125 micron multimode 160 MHz/km 2-26 m (7-85 ft.) LC
62.5/125 micron multimode 200 MHz/km 2-33 m (7-108 ft.) LC
50/125 micron multimode 400 MHz/km 2-66 m (7-216 ft.) LC
50/125 micron multimode 500 MHz/km 2-82 m (7-269 ft.) LC
50/125 micron multimode 2000 MHz/km 2-300 m (7-984 ft.) LC
10GBASE-LR
9/125 micron single-mode N/A 2 m - 10 km (7 ft - 6.2 miles) LC
10GBASE-ER
9/125 micron single-mode N/A 2 m - 40 km (7 ft - 24.8 miles) LC
