Edge-Core ECW5110-L User Manual

Chapter 3 | AP Enclosure
How to Mount the Unit
– 21 –

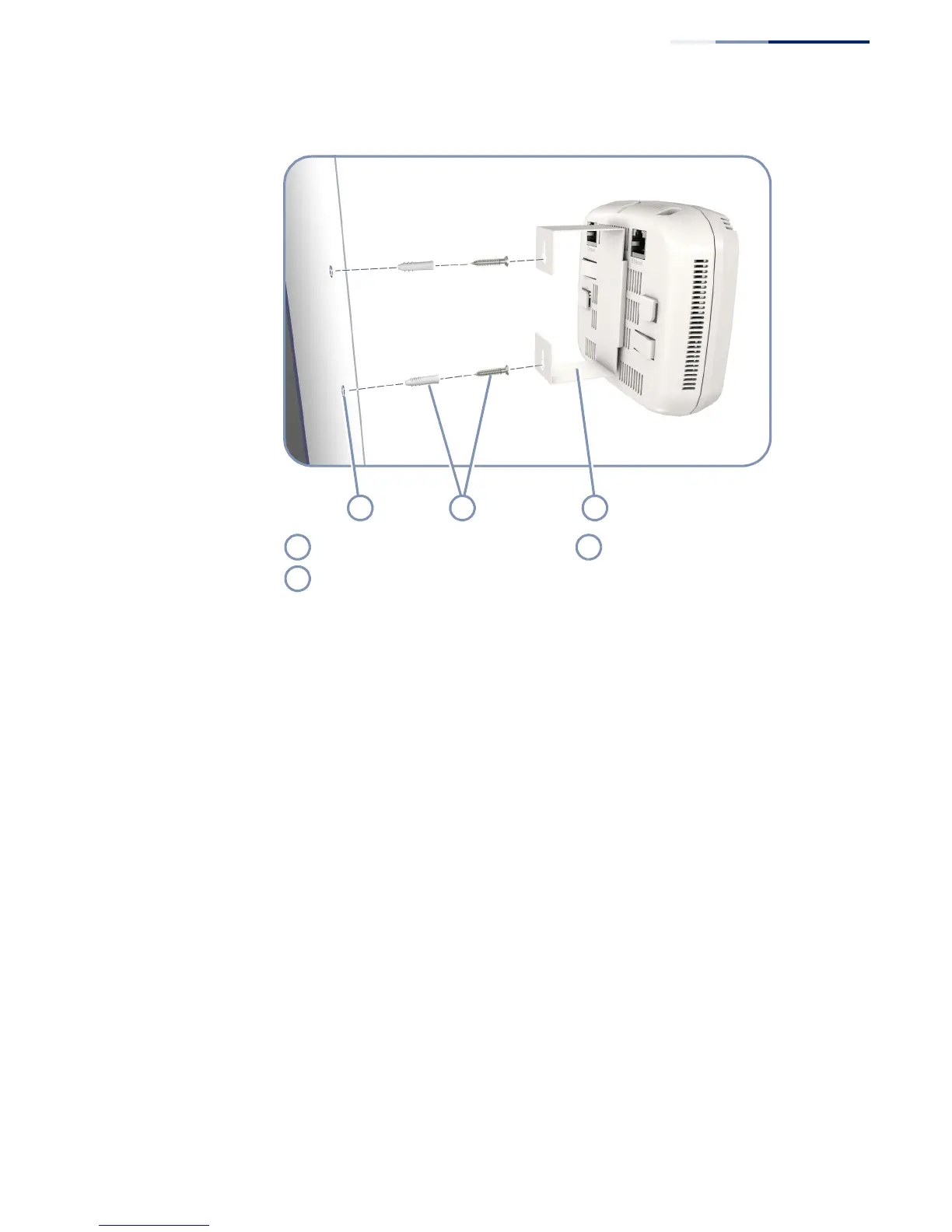

Figure 9: Wall Mounting the AP
Suspended Ceiling
T-Rail Mounting
To mount the AP to a suspended ceiling T-rail (Figure 10), perform the following
steps:
1. Choose a location on a ceiling T-rail where the access point will be installed and
position the ceiling-mount clip holders on either side of the T-rail.
2. Turn the AP until the two clips lock the T-rail into the mounting holders.
Wall Screw Hole Wall-Mount Bracket
Wall Plugs and Screws
1 2 3
1
3
2
