Edgetech 2205 User Manual

DRAWING NO.
REV
SCALE
CARDFILE NAME
2300
DATE
page 1 of 2
DRAWN:
APPROVALS
CHECKED:
ENG:
SYSTEM
DRAWING NO.
REV
SCALE
CARDFILE NAME
2300
DATE
page 1 of 2
DRAWN:
APPROVALS
CHECKED:
ENG:
SYSTEM
0021988
UNLESS AS MAY BE OTHERWISE PROVIDED BY CONTRACT, THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF "EDGETECH" AND ARE
ISSUED IN STRICT CONFIDENCE AND SHALL NOT BE REPRODUCED, COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF
APPARATUS WITHOUT PERMISSION. COPYRIGHT @ 2011 EDGETECH INC.
DMD
9/16/19
A
REV
REVISIONS
DESCRIPTION APPROVEDDATE
A Release to Production DMD9/5/19
ECR
---
REV
REVISIONS
DESCRIPTION APPROVEDDATE
A Release to Production DMD9/5/19
ECR
---

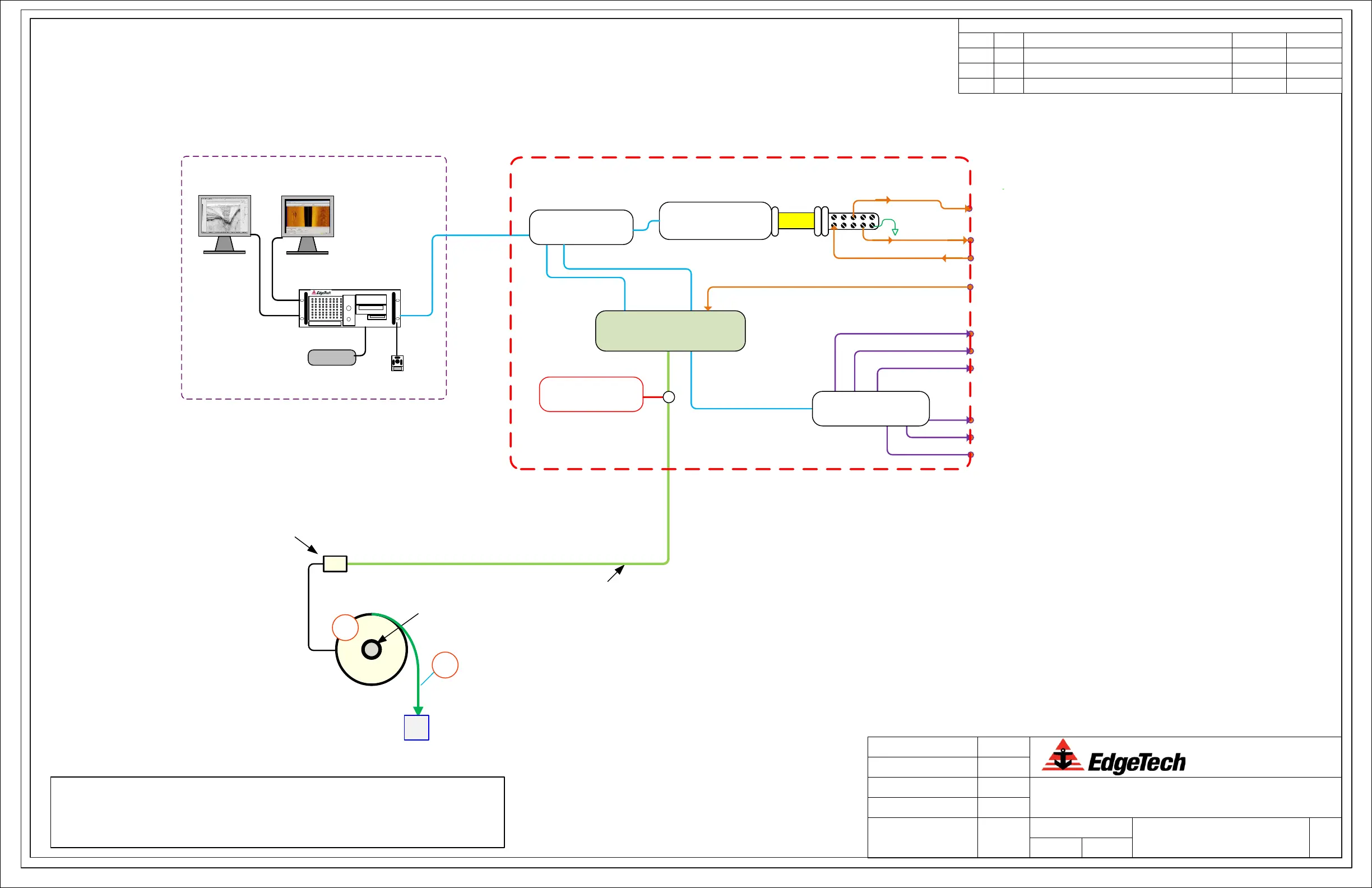

ASSY TOP TOW FISH 2300 230 540 850
04 106SB 07 INCH
NOTES
1) Option Sensors and cables are listed on the Sales Order
2) Starmux IV and Topside Computer are listed on Sales Order
TOPSIDE PROCESOR (OPTIONAL) WITH DISCOVER
SUB-BOTTOM & SIDE SCAN SOFTWARE
Side Scan LCD
Monitor
COAX DECK CABLE
(OPTIONAL)
Sub Bottom
LCD Monitor
TOW CABLE
WINCH
WINCH SLIP
RINGS
Keyboard
Track Ball
DVD-
RW
HD1
Rese
t
Syste
m
Power
DVD-
RW
HD1
Rese
t
Syste
m
Power
JUNCTION BOX (CFE)
4 Port Digital to IP
16 Port Network
Switch
N/A
N/A
ADSL Modem Telemetry
STARMUX IV POWER AND TELEMETRY SYSTEM
1
CFE
CFE
N/A
1 2 3 4 5
67
89
1 2 3 4 5
67
89
DB9F
1 2 3 4 5
67
89
DB9F
8 Port IP to Serial
Trigger
GND
DB9F
DB9M
RS232/TTL
Convert er
Serial Port 1
CH1
CH4 CH6
CH8
CH7CH5
CH2CH3
375v DC Power
System
MAGNETOMETER (J3)
48V OPTION BEACON (J2)
24V OPTION BEACON (J9)
OPTION (J10)
OPTION (J5)
NAVIGATION
FSK INPUT TRIGGER
1pps
4 Little Brook Road
West Wareham, MA 02576
Tel: (508) 291-0057 / Fax: 356-9760
Email: info@edgetech.com
Serial Port 5
Serial Port 6
Serial Port 1
Serial Port 2
Serial Port 3
Optional

Edgetech 2205 Specifications

General

Brand	Edgetech
Model	2205
Category	Sonar
Language	English
