Edimax AR-7211A - ATM Loopback; Adsl

52
3-8-2 ATM Loopback

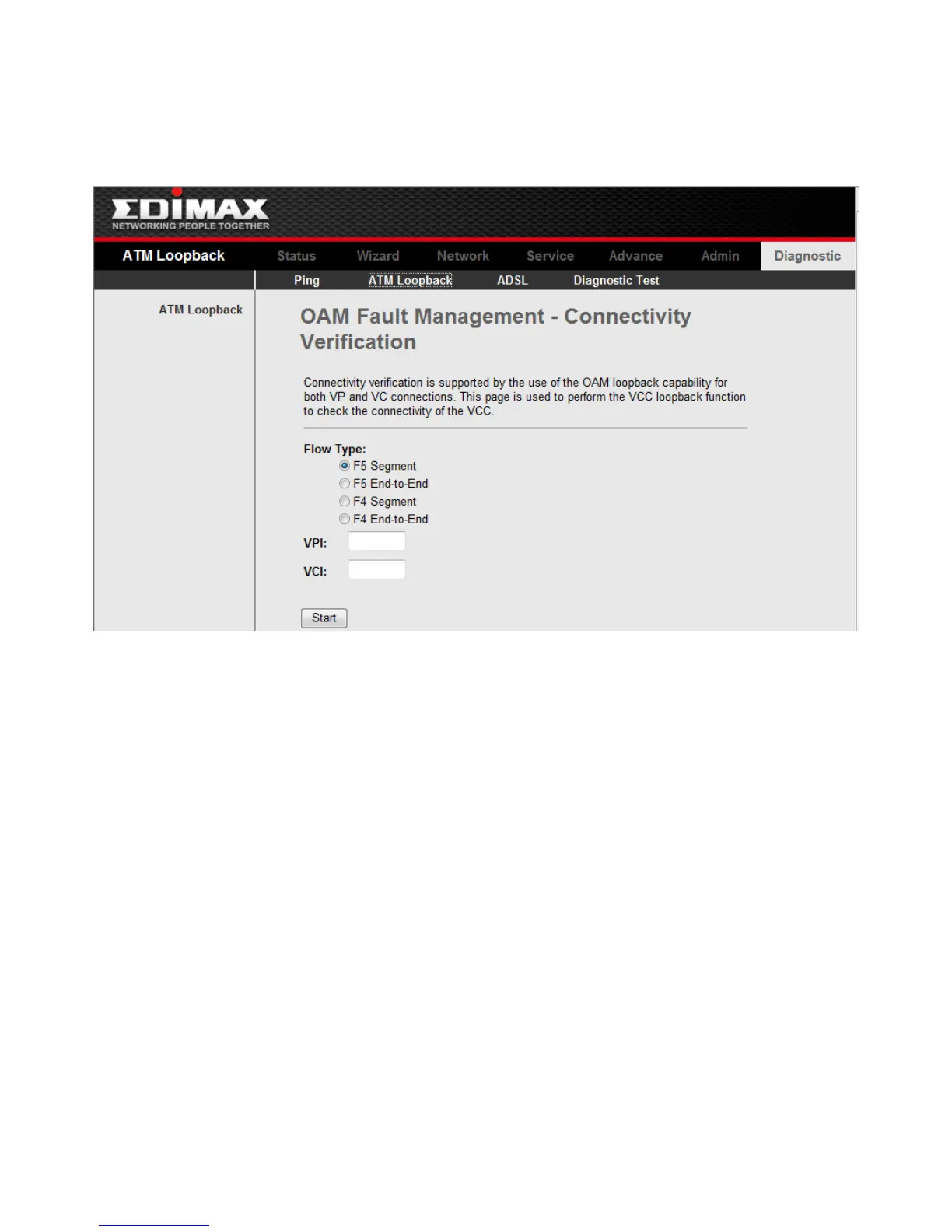

Click ATM Loopback in the sub-menu to open the screen of Fig 3.8.2. In this page, you
can use VCC loopback function to check the connectivity of the VCC.
Fig 3.8.2
Go!: Click this button to begin testing.
3-8-3 ADSL
Click ADSL in the sub-menu to open the screen of Fig 3.8.3. This page is used for ADSL
Tone Diagnostics.
