Edimax OAP1300 User Manual
4
of 1
of 1 rating
138 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
8
8.

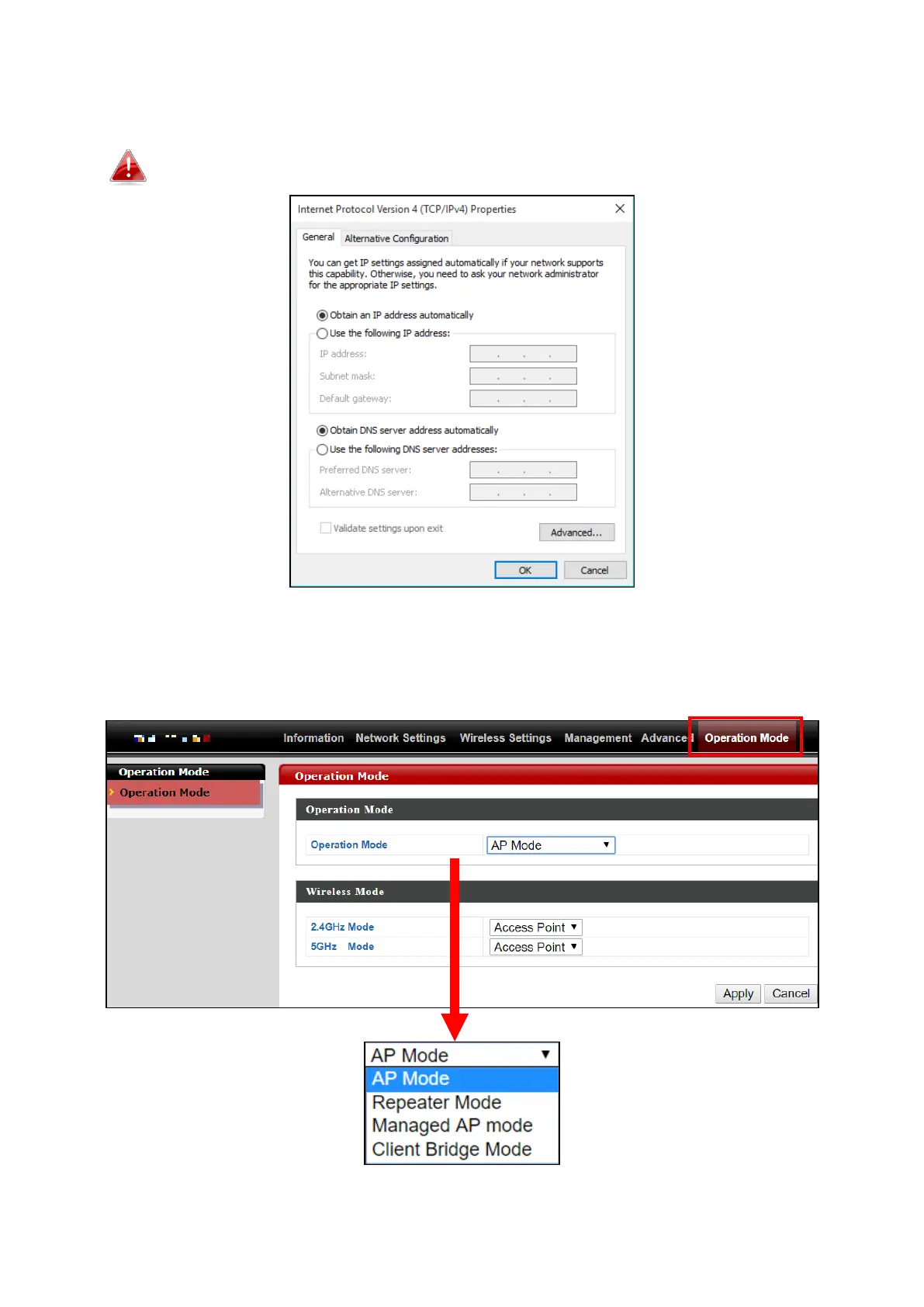

By default, the dev
ice is in AP Mode.
If you do not wish to change the operation mode, switch your computer
back to dynamic IP address
now
.
9.
If you wish to chan
ge to a different operation mod
e, go to
“
Operation
Mode
”
tab
to
select the desired
operation mode. Foll
ow the steps in
the following sections t
o change the operati
on mode.
11
13
Table of Contents
Table of Contents
2
Overview
5
I Product Information
6
Package Contents
6
System Requirements
7
Hardware Overview
7
LED Status
8
Reset
9
Quick Setup & Mode Selection
10
Default Mode: Access Point Mode
10
Repeater Mode
13
Client Bridge Mode
16
Managed AP Mode
19
Basic Settings
21
Wi-Fi Protected Setup (WPS)
26
Hardware Installation
27
Antenna
27
Powering on the Access Point Outdoor
28
Mounting
30
Browser Based Configuration Interface
32
Information
34
IV-1-1 System Information
34
IV-1-2 Wireless Clients
37
IV-1-3 Wireless Monitor
38
IV-1-4 DHCP Clients
39
IV-1-5 Log
40
Network Settings
42
IV-2-1 LAN-Side IP Address
42
IV-2-2 LAN Port
44
IV-2-3 IGMP Snooping
45
IV-2-4 STP Management
46
IV-2-5 Vlan
47
Wireless Settings
48
IV-3-1 2.4Ghz 11Bgn
48
IV-3-1-1 Basic
49
IV-3-1-2 Advanced
51
IV-3-1-3 Security
53
IV-3-1-3-1 no Authentication / Additional Authentication
54
IV-3-1-3-2 Wep
56
Ieee802.1X/Eap
56
IV-3-1-3-4 Wpa-Psk
57
IV-3-1-3-5 Wpa-Eap
58
IV-3-1-4 Wds
59
IV-3-1-5 Guest Network
61
IV-3-2 5Ghz 11Ac 11An
62
IV-3-2-1 Basic
63
IV-3-2-2 Advanced
65
IV-3-2-3 Security
67
IV-3-2-4 Wds
69
IV-3-2-5 Guest Network
71
IV-3-3 Wps
72
IV-3-4 Radius
74
IV-3-4-1 RADIUS Settings
75
IV-3-4-2 Internal Server
77
IV-3-4-3 RADIUS Accounts
79
IV-3-5 MAC Filter
81
IV-3-6 Wmm
83
IV-3-7 Schedule
85
IV-3-8 Traffic Shaping
87
IV-3-9 Bandsteering
89
Management
90
IV-4-1 Admin
90
IV-4-2 Date and Time
93
IV-4-3 Syslog Server
95
IV-4-4 Ping Test
96
IV-4-5 I'M here
97
Advanced
98
IV-5-1 LED Settings
98
IV-5-2 Update Firmware
99
IV-5-3 Save / Restore Settings
101
IV-5-4 Factory Default
102
IV-5-5 Reboot
103
Operation Mode
104
Appendix
105
Configuring Your IP Address
105
V-1-1 Windows XP
106
V-1-2 Windows Vista
108
V-1-3 Windows 7
110
V-1-4 Windows 8
114
V-1-5 Mac
118
Setting AP Via Manageengine Mibbrowser with Snmpv3 - Example
120
V-2-1 Setting in Web
120
V-2-2 Setting Rule
121
V-2-3 Setting in Manageengine Mibbrowser
121
Best Practice
125
How to Create and Link WLAN & Access Point Groups
125
VI-1-1 Create WLAN Group
125
VI-1-2 Create Access Point Group
128
VI-1-3 Assign Access Point Group to Use the SSID Group Settings
130
