Edimax OAP1300 User Manual

Name: Edimax OAP1300
Brand: Edimax
Rating: 4 (1 reviews)

138 pages

To Next Page

To Previous Page

I Product Information

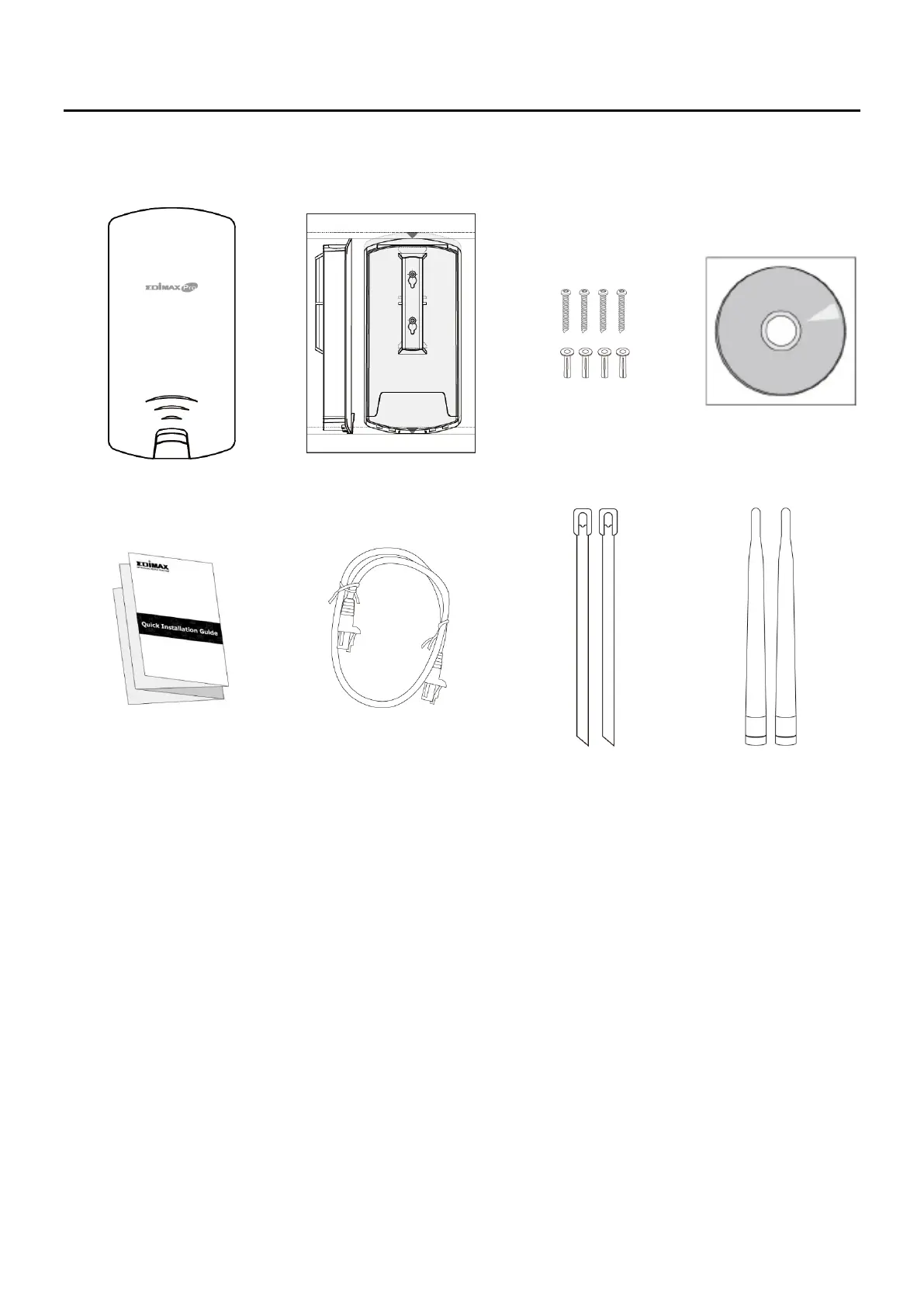

I-1 Package Contents

1. OAP1300 Access Point

2. Wall Mount Screw Template

3. Wall Mount Screw Set

4. CD

5. Quick Installation Guide

6. Ethernet Cable

7. Pole Mount Strap x2

8. Antenna x2

Table of Contents2
Overview5
I Product Information6
Package Contents6
System Requirements7
Hardware Overview7
LED Status8
Reset9
Quick Setup & Mode Selection10
Default Mode: Access Point Mode10
Repeater Mode13
Client Bridge Mode16
Managed AP Mode19
Basic Settings21
Wi-Fi Protected Setup (WPS)26
Hardware Installation27
Antenna27
Powering on the Access Point Outdoor28
Mounting30
Browser Based Configuration Interface32
Information34
IV-1-1 System Information34
IV-1-2 Wireless Clients37
IV-1-3 Wireless Monitor38
IV-1-4 DHCP Clients39
IV-1-5 Log40
Network Settings42
IV-2-1 LAN-Side IP Address42
IV-2-2 LAN Port44
IV-2-3 IGMP Snooping45
IV-2-4 STP Management46
IV-2-5 Vlan47
Wireless Settings48
IV-3-1 2.4Ghz 11Bgn48
IV-3-1-1 Basic49
IV-3-1-2 Advanced51
IV-3-1-3 Security53
IV-3-1-3-1 no Authentication / Additional Authentication54
IV-3-1-3-2 Wep56
Ieee802.1X/Eap56
IV-3-1-3-4 Wpa-Psk57
IV-3-1-3-5 Wpa-Eap58
IV-3-1-4 Wds59
IV-3-1-5 Guest Network61
IV-3-2 5Ghz 11Ac 11An62
IV-3-2-1 Basic63
IV-3-2-2 Advanced65
IV-3-2-3 Security67
IV-3-2-4 Wds69
IV-3-2-5 Guest Network71
IV-3-3 Wps72
IV-3-4 Radius74
IV-3-4-1 RADIUS Settings75
IV-3-4-2 Internal Server77
IV-3-4-3 RADIUS Accounts79
IV-3-5 MAC Filter81
IV-3-6 Wmm83
IV-3-7 Schedule85
IV-3-8 Traffic Shaping87
IV-3-9 Bandsteering89
Management90
IV-4-1 Admin90
IV-4-2 Date and Time93
IV-4-3 Syslog Server95
IV-4-4 Ping Test96
IV-4-5 I'M here97
Advanced98
IV-5-1 LED Settings98
IV-5-2 Update Firmware99
IV-5-3 Save / Restore Settings101
IV-5-4 Factory Default102
IV-5-5 Reboot103
Operation Mode104
Appendix105
Configuring Your IP Address105
V-1-1 Windows XP106
V-1-2 Windows Vista108
V-1-3 Windows 7110
V-1-4 Windows 8114
V-1-5 Mac118
Setting AP Via Manageengine Mibbrowser with Snmpv3 - Example120
V-2-1 Setting in Web120
V-2-2 Setting Rule121
V-2-3 Setting in Manageengine Mibbrowser121
Best Practice125
How to Create and Link WLAN & Access Point Groups125
VI-1-1 Create WLAN Group125
VI-1-2 Create Access Point Group128
VI-1-3 Assign Access Point Group to Use the SSID Group Settings130
