5
I-5
Reset
If you experience problems wit
h your access point, you
can reset the device
back to its factory sett
ings. This resets
all sett
ings back to default.

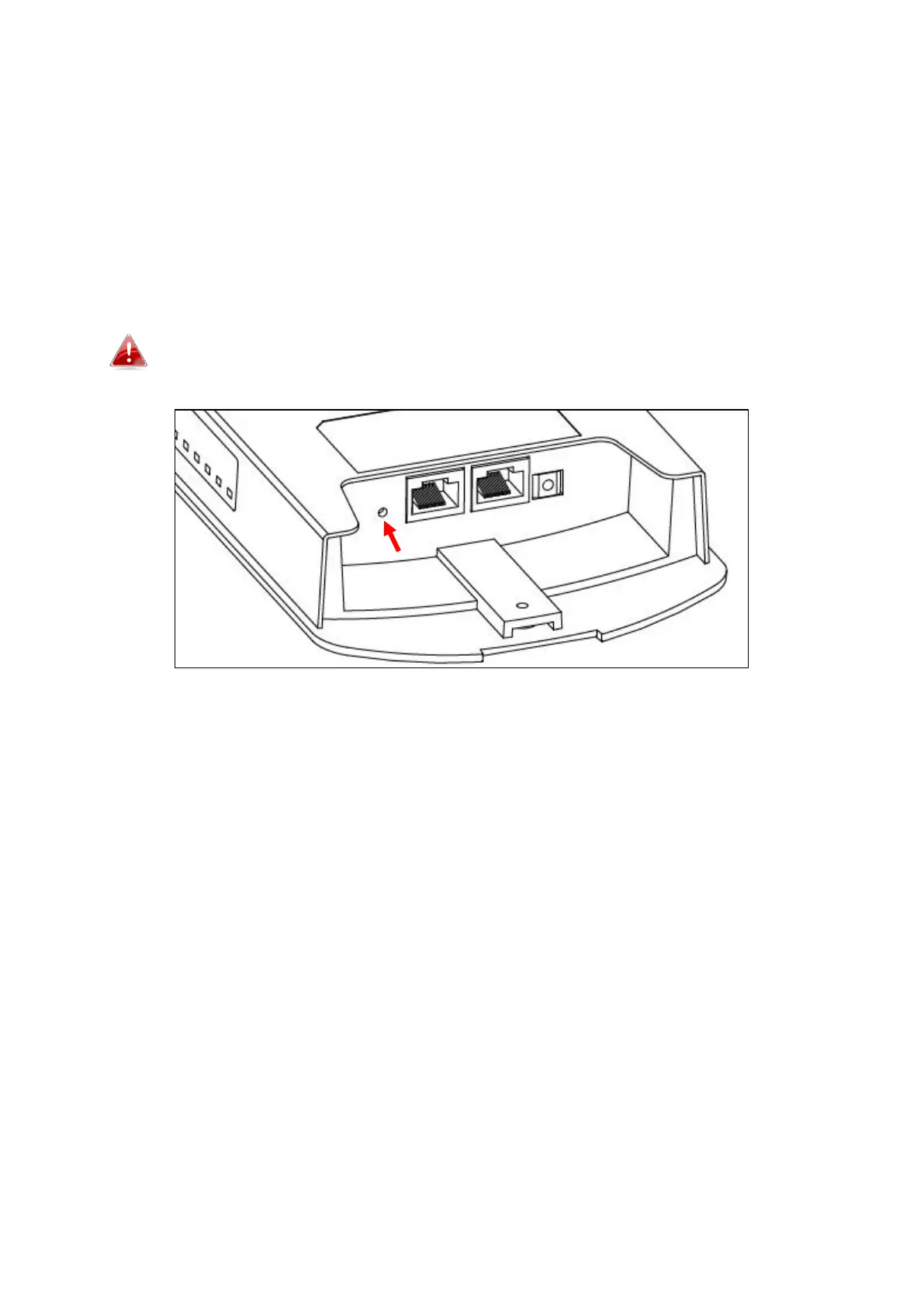

1.
Press and hold the
reset button on the access point
for at least 10
seconds then relea
se the button
.
You may need to use a p
in
or similar sharp object to push the reset
button.
2.
Wait for the acces
s point to restart.
The access point
is ready for set
up
when the Power L
ED is
turned on.
