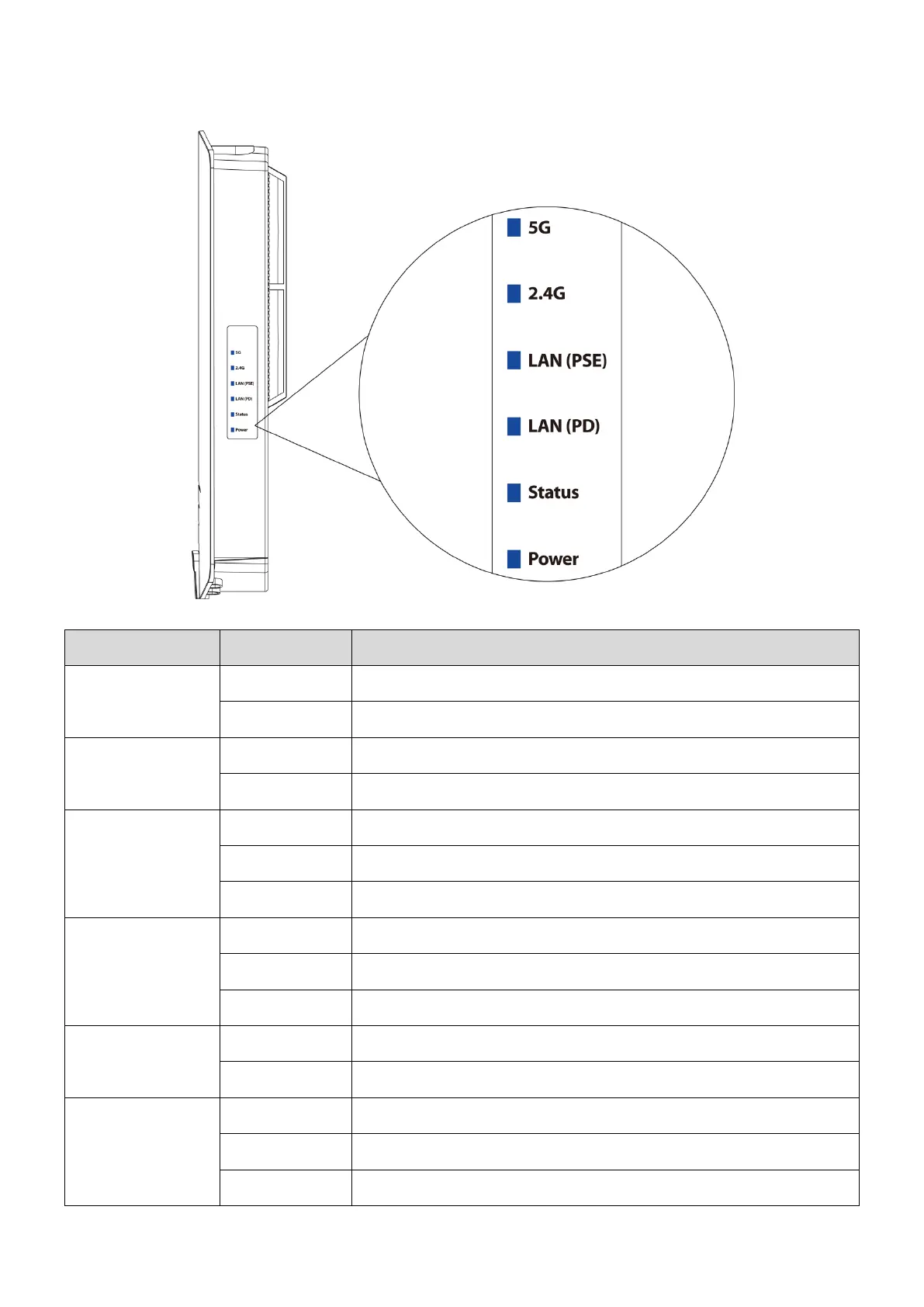

LED Status
LED
LED Status
Description
5G
(WLAN)
On
Wireless enabled.
Off
Wireless disabled.
2.4G
(WLAN)
On
Wireless enabled.
Off
Wireless disabled.
LAN (PSE)
On
LAN port connecte
d.
Flashing
Activity (transmitti
ng and receiving
).
Off
LAN port not conn
ected.
LAN (PD)
On
LAN port connecte
d.
Flashing
Activity (transmitti
ng and receiving
).
Off
LAN port not conn
ected.
Status
On
Access point booti
ng up.
Off
No occurred error.
Power
On
The access point is
on.
Flashing
Upgrading firmware.
Off
The access point is
off.
