Introduction

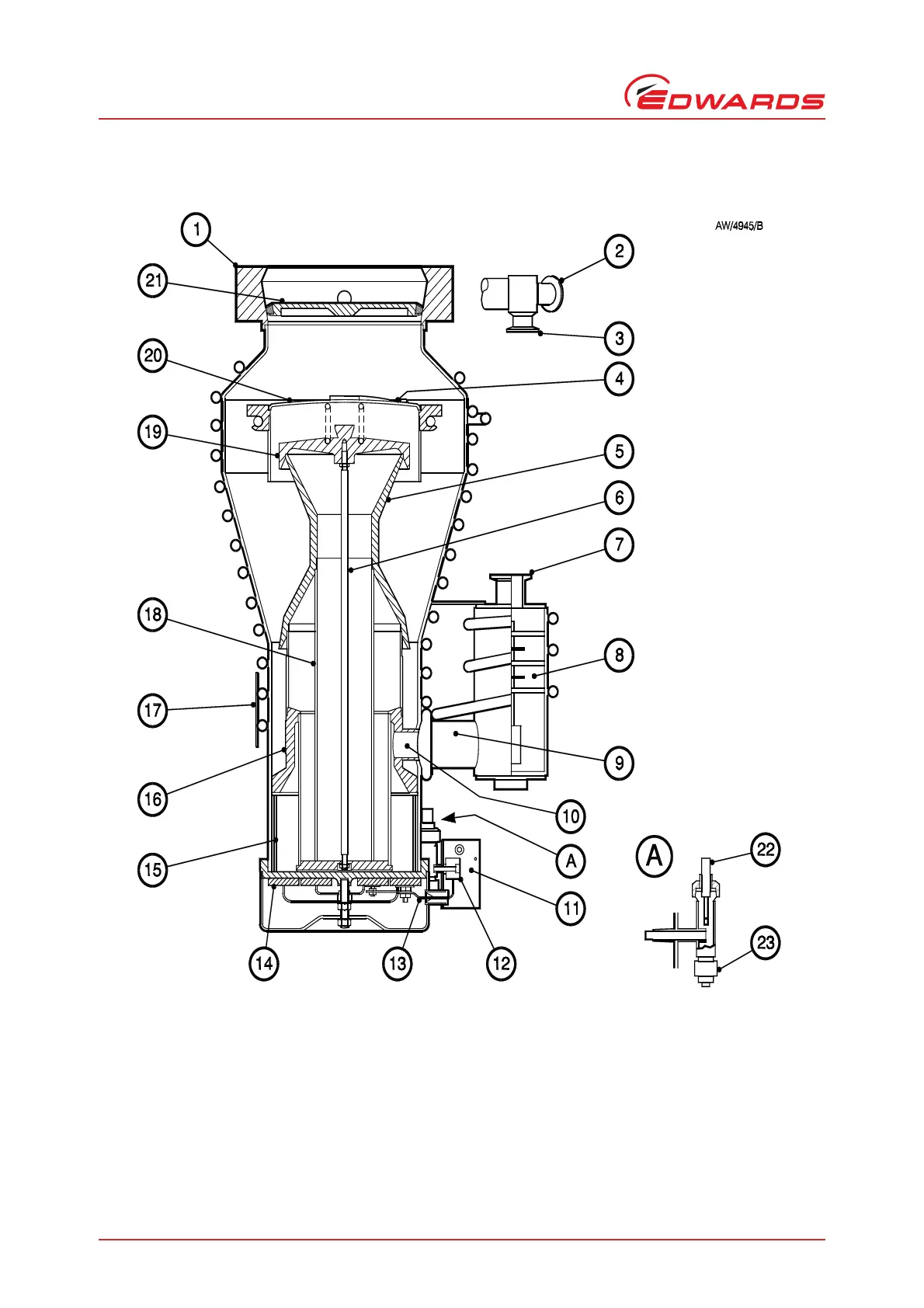

Figure 3 - Sectional view of valved Diffstak 160/700 pump
1. Inlet-flange
2. Gauge connection
3. Roughing connection
4. Retainer strap
5. 2nd-stage jet assembly
6. Tie-rod
7. Backing connection
8. Baffle condenser
9. Backing spout
10. Ejector jet
11. Terminal-box
12. Terminal-block
13. Electrical cables
14. Heater
15. Pump-boiler
16. 3rd-stage jet assembly
17. Cooling-fail thermal switch
mounting plate
18. Vapour-tube
19. Top-jet assembly
20. Baffle cap
21. High-vacuum isolation-valve
22. Fluid filler and dipstick
assembly
23. Fluid drain
