Maintenance
B344-21-880 Issue N

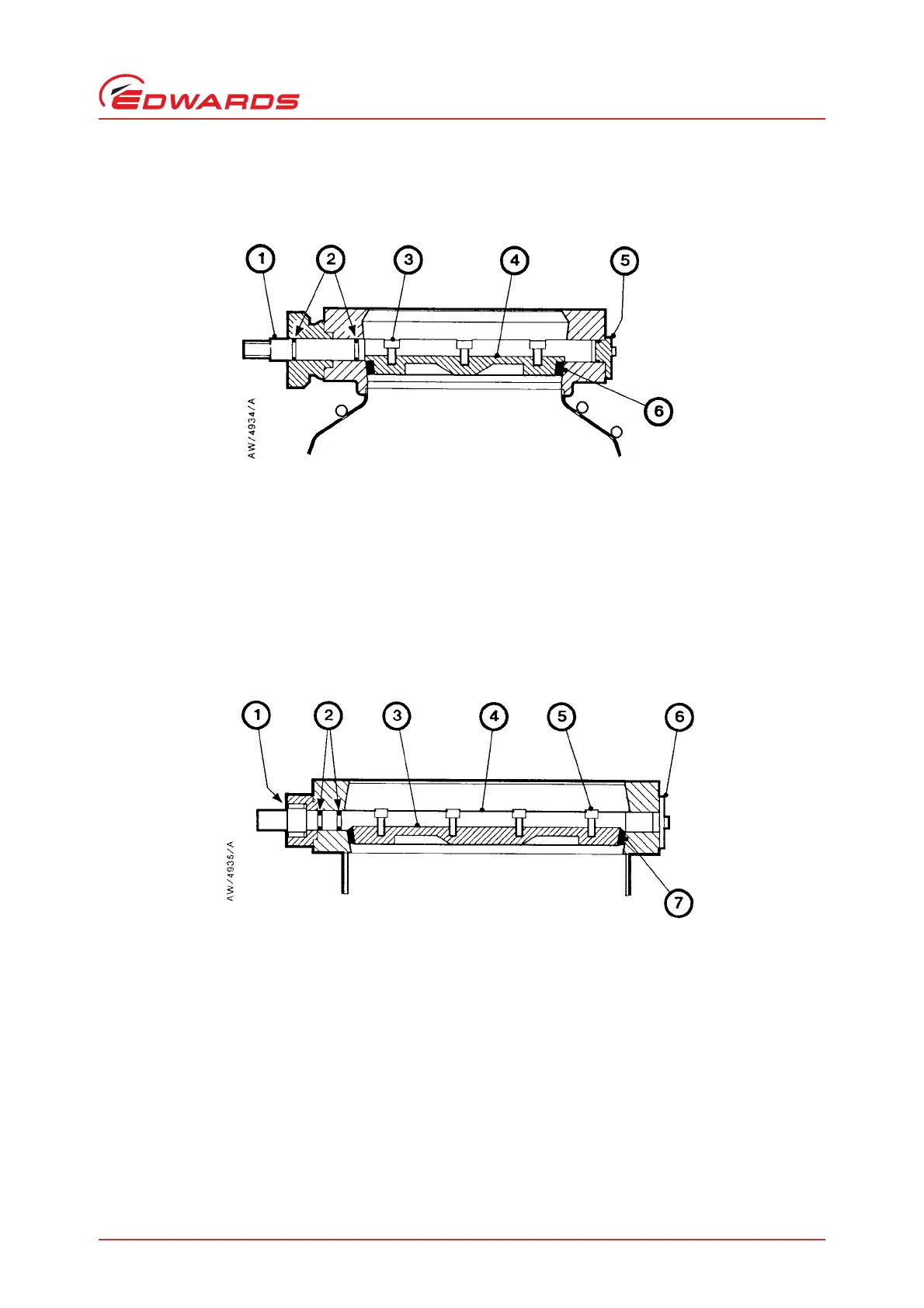

Figure 20 - High-vacuum isolation-valve: Diffstak 63/150, 100/300 and 160/700 pumps
Figure 21 - High-vacuum isolation-valve: Diffstak 250/2000 pumps
1. Valve-shaft
2. Valve-shaft ‘O’ rings
3. Screw (3 off)
4. Valve-plate
5. Blanking-plate
6. Valve-plate seal
1. Needle roller-bearing
2. Valve-shaft ‘O’ rings
3. Valve-plate
4. Valve-shaft
5. Screw (4 off)
6. Blanking-plate
7. Valve-plate seal
