Installation
B344-21-880 Issue N

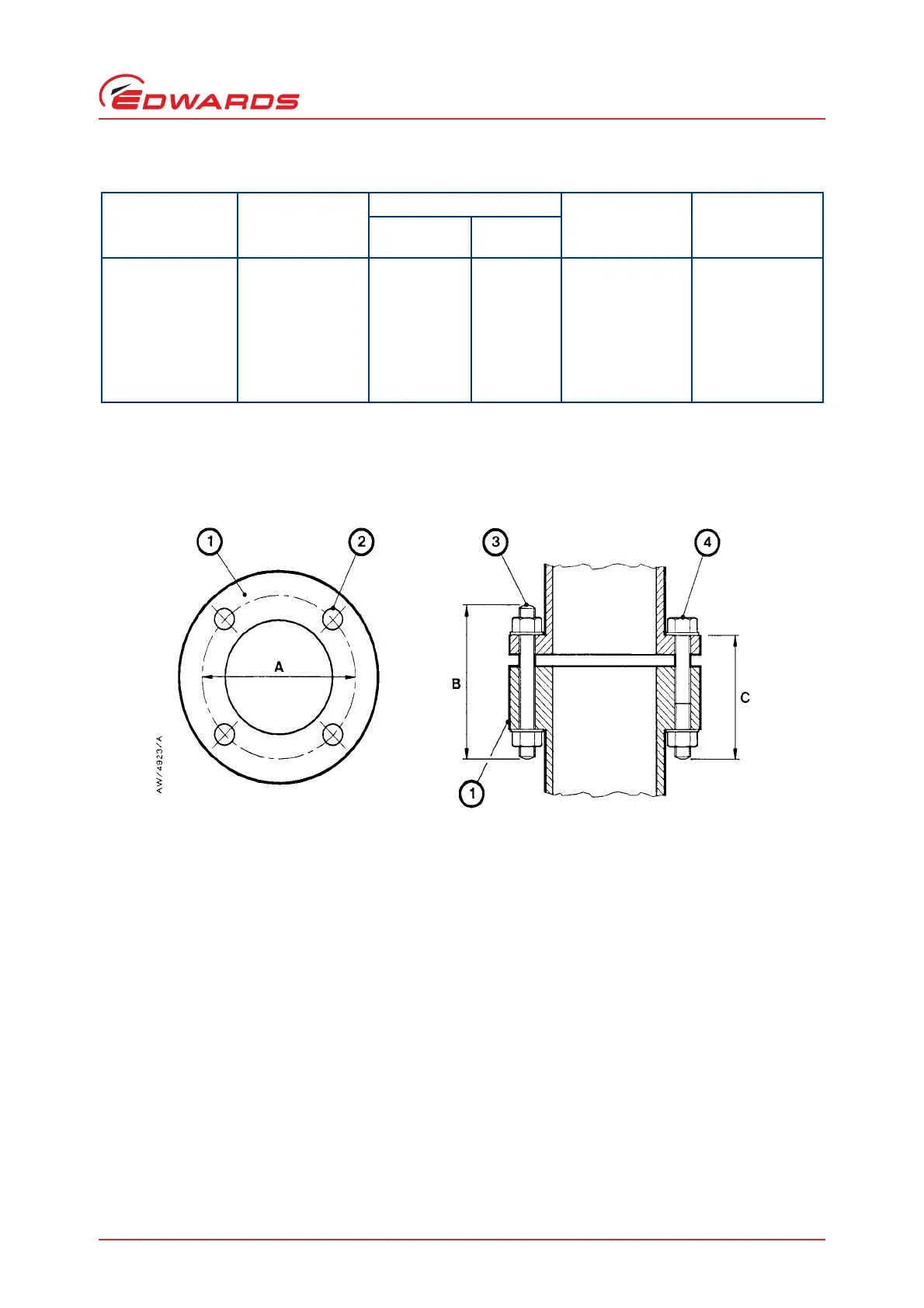

Figure 8 - Inlet-flange fitting details
Table 1 - Inlet-flange details (M-, P- and F-model pumps only)
Pump Model
PCD Diameter
(mm):
Figure 8 ‘A’
Fixing-holes
Minimum stud
length (mm):
Figure 8 ‘B’
Minimum bolt
length (mm):
Figure 8 ‘C’
Number of
holes
Diameter
(mm)
63/150M or P 110 4 9 M8 x 85 M8 x 75
100/300M or P 145 8 9 M8 x 90 M8 x 75
100/300F 145 16 9 M8 x 65 M8 x 55
160/700M or P 200 8 11 M10 x 100 M10 x 90
160/700F 200 20 9 M8 x 70 M8 x 60
250/2000M or P 310 12 11 M10 x 120 M10 x 110
1. Inlet-flange
2. Fixing-hole
3. Stud
4. Bolt
