B344-21-880 Issue N
Page 18 © Edwards Limited 2007. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Installation

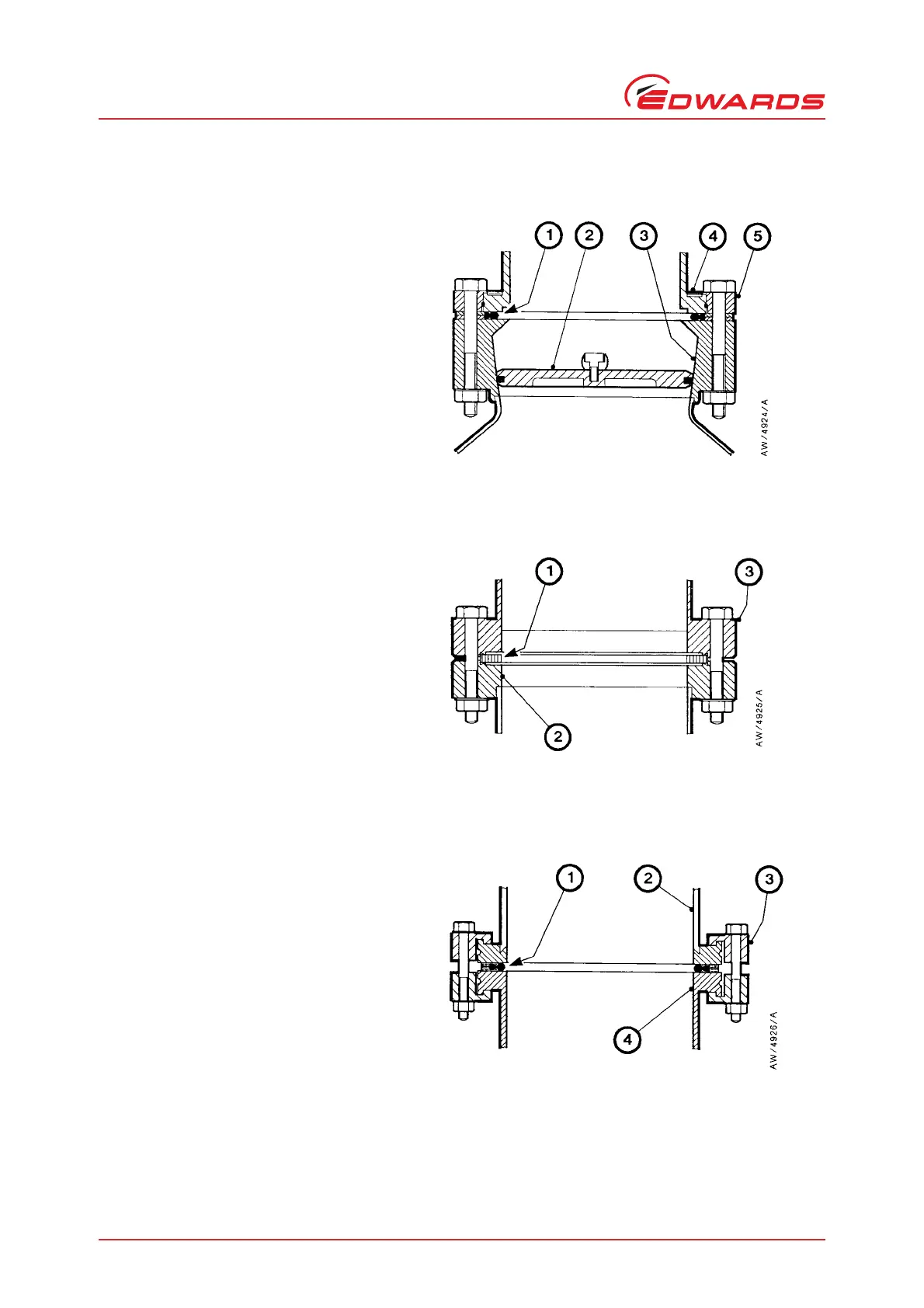

Figure 9 - M- and P-model Diffstak inlet connection
Figure 10 - F-model Diffstak inlet connection
Figure 11 - C-model Diffstak inlet connection
1. Co-Seal
2. High-vacuum isolation-valve
3. Diffstak inlet-flange
4. ISO flange
5. Rotatable flange
1. Copper compression gasket
2. Diffstak inlet-flange
3. CF flange
1. Co-Seal
2. ISO tube/collar assembly
3. Claw clamp
4. Diffstak inlet-flange
