Installation
B344-21-880 Issue N

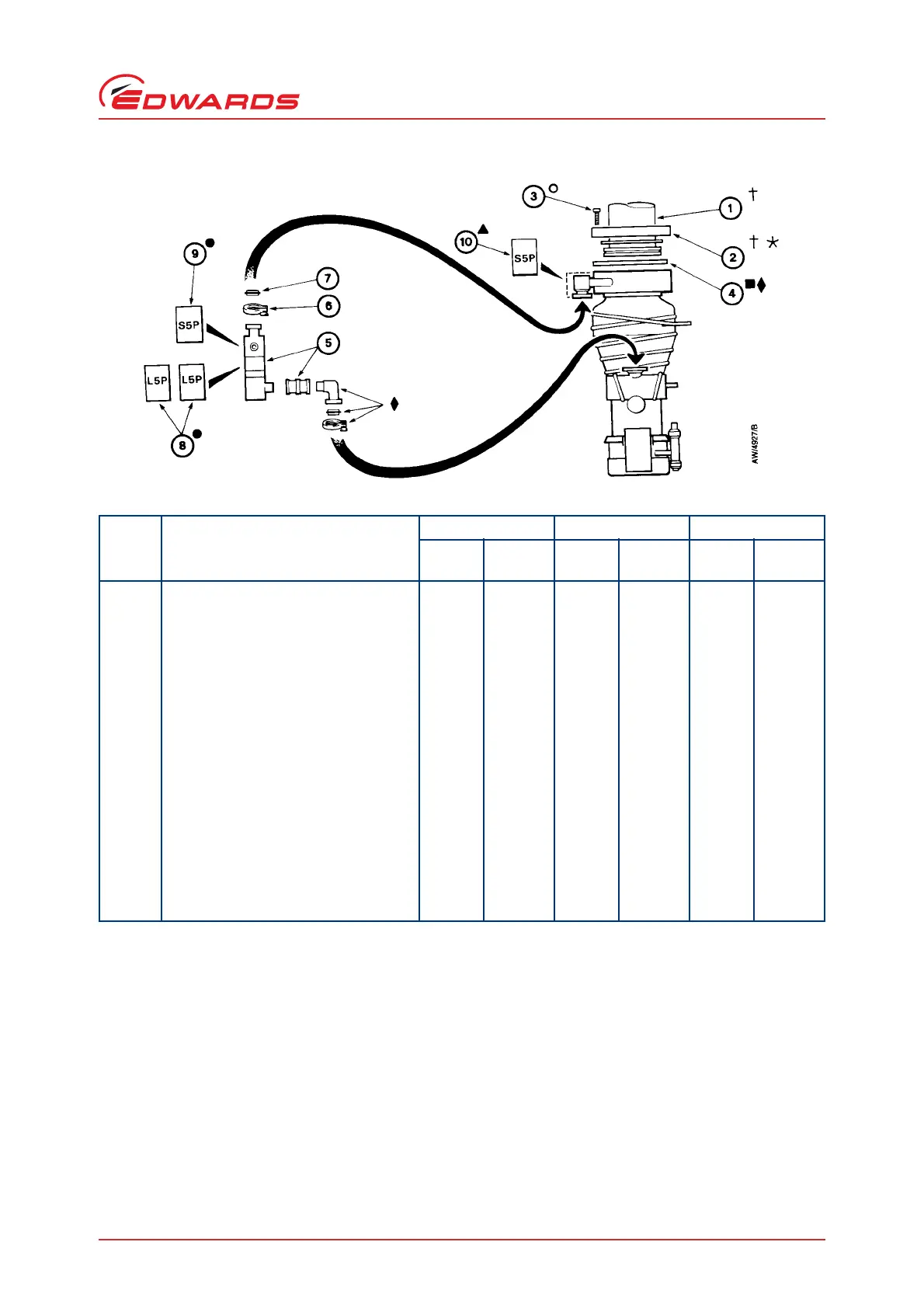

Figure 12 - Diffstak 63/150, 100/300 and 160/700 installation details
Figure
key
Component
Diffstak 63/150 Diffstak 100/300 Diffstak 160/700
Size/
type
Quantity
required
Size/
type
Quantity
required
Size/
type
Quantity
required
1 ISO tube and collar assembly ISO63 1 ISO100 1 ISO160 1
2 ✝★ Rotatable flange pack ISO63 1 ISO100 1 ISO160 1
3
P Bolts (M- and P-model) M8 x 75 4 M8 x 75 8 M10 x 90 8
Bolts (F-model) - - M8 x 55 16 M8 x 60 20
4 ■ Inlet seal ISO63 1 ISO100 1 ISO160 1
5 BRV valve, manual BRV10M 1 BRV25M 1 BRV25M 1
BRV valve, pneumatic BRV10P 1 BRV25P 1 BRV25P 1
6 Clamp NW10 1 NW25 1 NW25 1
7 ‘O’ ring assembly NW10 1 NW25 1 NW25 1
8 ● Lightweight 5-port electropneumatic
control-valve
-2-2-2
9 ● Standard 5-port electropneumatic
control-valve
-1-1-1
10▲ Standard 5-port electropneumatic
control-valve
-1-1-1
✝ Not required for F-model pumps; use CF fittings (which must be obtained from another supplier).
★ Not required for C-model pumps; use claw clamps to bolt the pump ISO inlet-flange directly to the ISO tube
and collar assembly.
P Bolts are not available from Edwards. Bolts are not required for C-model pumps; use claw clamps to bolt
thepump ISO inlet-flange directly to the ISO tube and collar assembly. Use 4 claw clamps for ISO63, ISO100
and ISO160 flanges.
■ These inlet seals are only suitable for M-, P- and C-model pumps; use CF fittings (which must be obtained from
another supplier) for F-model pumps.
● Only required for pneumatically operated BRV valves; use 1 standard 5-port control-valve or 2 lightweight
5-port control-valves. If you use 2 lightweight 5-port control-valves, you can use the isolation position of the
BRV valve.
▲ Only required for P-model pumps, to control the high-vacuum isolation-valve.
◆ Supplied with the pump (1 off of each component).
