Edwards Drystar EDP80 Series User Manual

A705-40-880 Issue B
Page 6 © Edwards Limited 2011. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Introduction

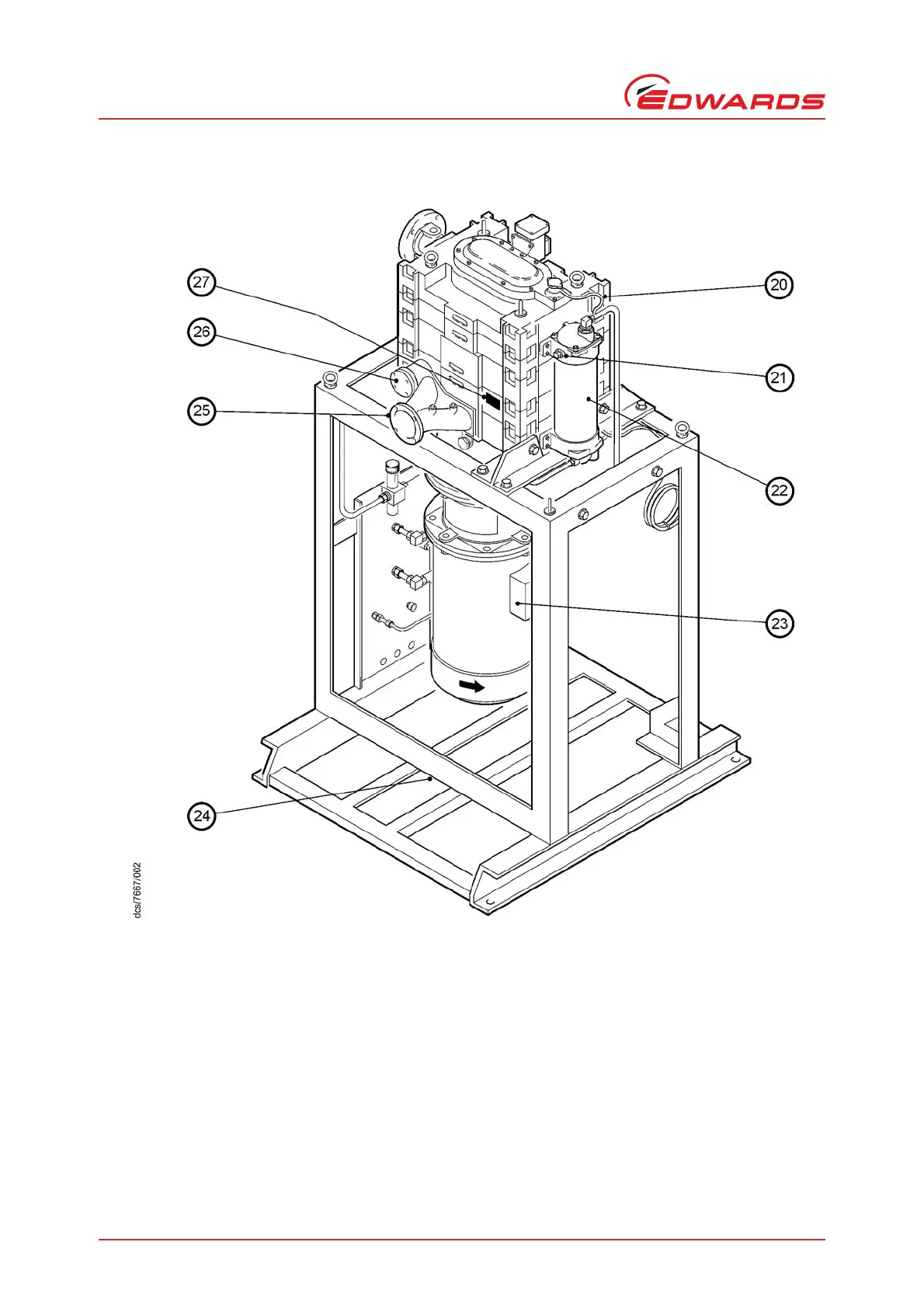

Figure 1 - The EDP pump: sheet 2 of 2
20.Coolant overflow pipe
21.Bleed plug (EDP80/EDP160 only)
22.Heat exchanger
23.Pump-motor terminal-box
24.Frame lower cross members
25.Pump-outlet
26.Pressure relief valve (EDP250/EDP400 only)
27.Pump case temperature measurement point
