Edwards Drystar EDP80 Series User Manual

© Edwards Limited 2011. All rights reserved. Page 67
Edwards and the Edwards logo are trademarks of Edwards Limited.
Maintenance
A705-40-880 Issue B

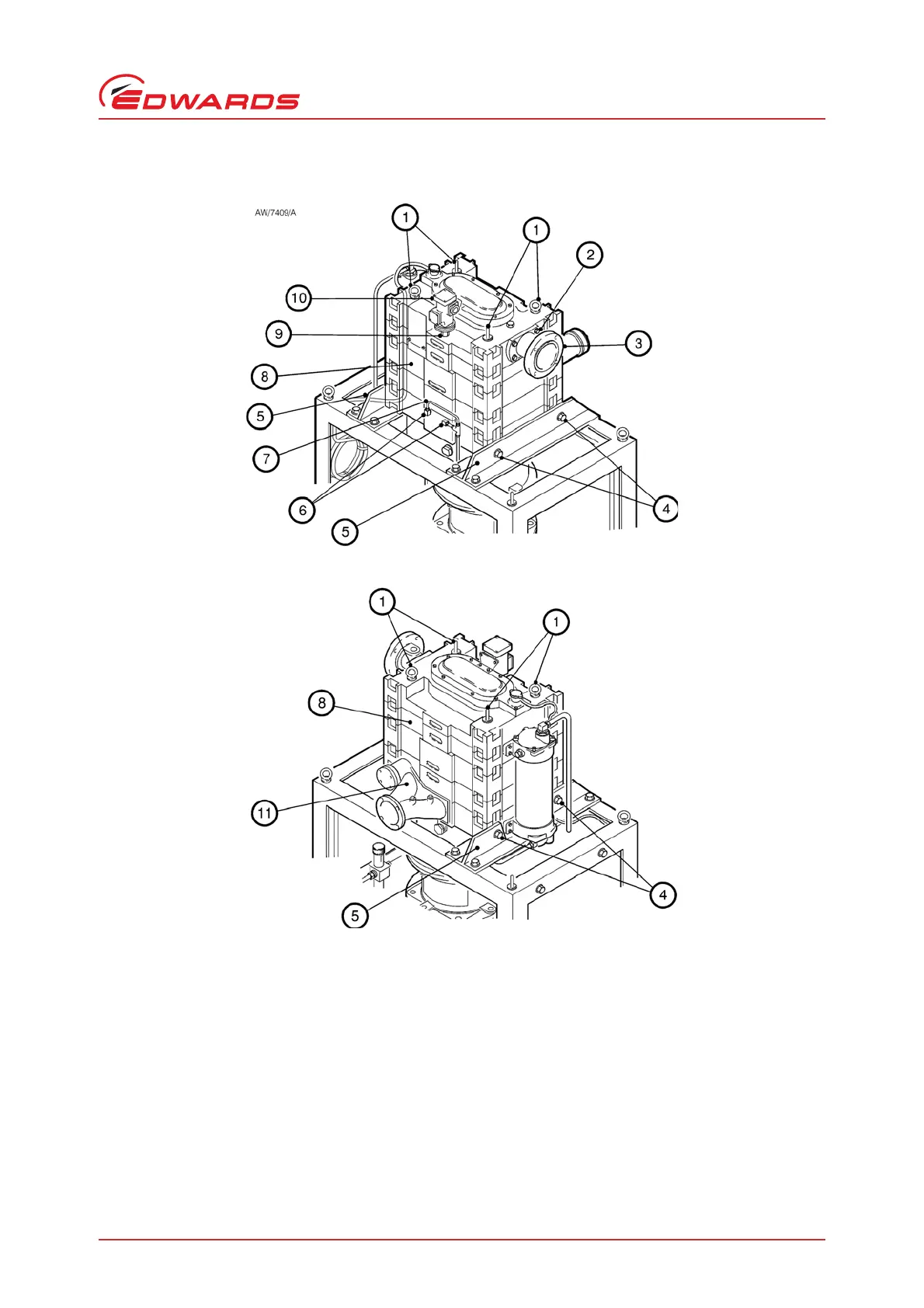

Figure 17 - Remove/refit the service module
1. Lifting bolts (4 off)
2. Bolts (4 off)
3. Inlet adaptor
4. Bolts (4 off)
5. Frame cross-members (2 off)
6. Elbow fittings
7. Shaft-seals purge pipeline
8. Service module (pump body)
9. Adaptor fitting
10.Coolant jacket thermal snap-switch
11.Exhaust manifold
