Edwards Drystar EDP80 Series User Manual

A705-40-880 Issue B
Page 26 © Edwards Limited 2011. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Installation

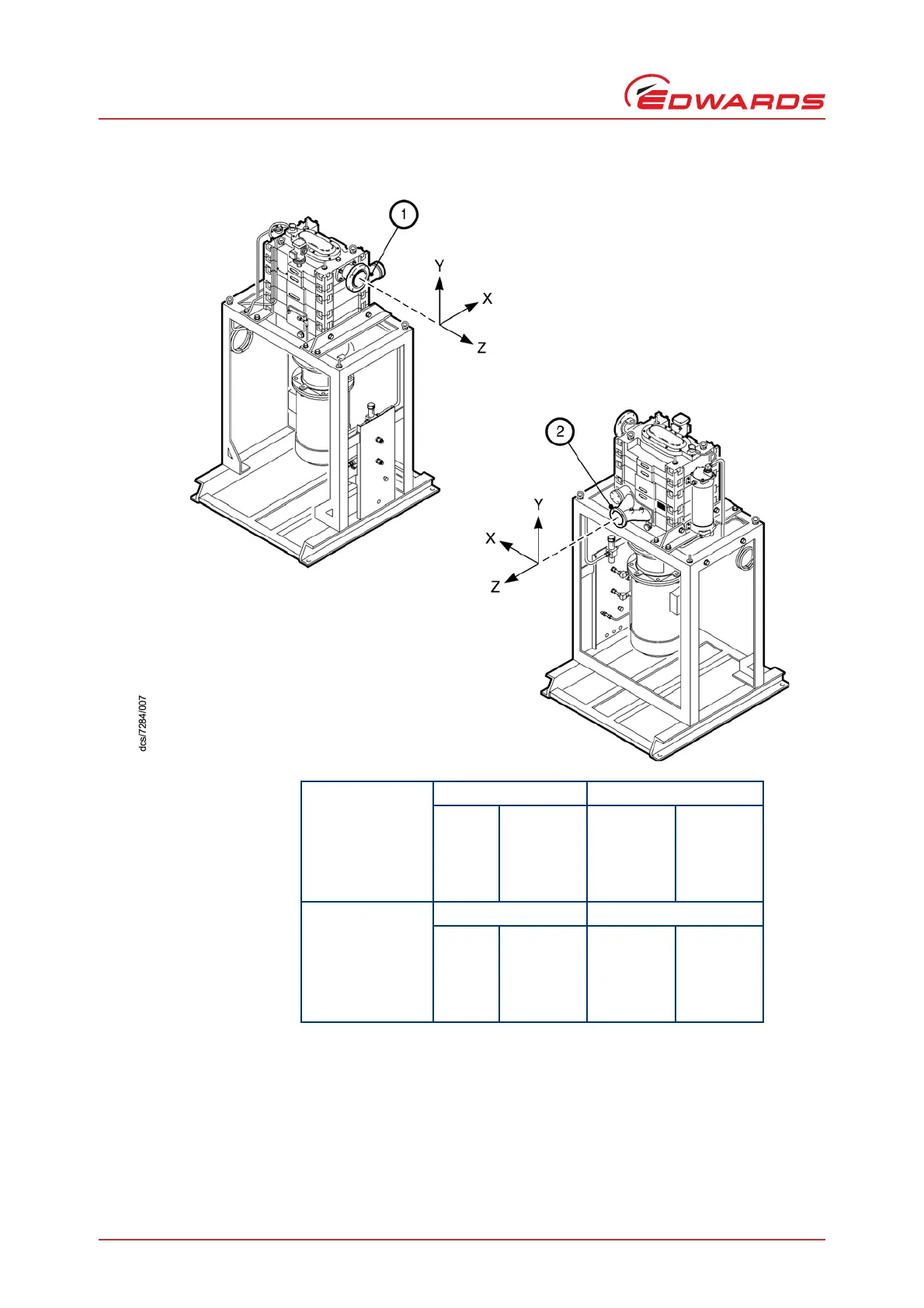

Figure 5 - Flange loading limits
1. Pump-inlet
2. Pump-outlet
F. Force
M. Moment
R. Resultant
X. Load orientation
Y. Load orientation
Z. Load orientation
Maximum force Pump-inlet Pump-outlet
FX ±530 N ±120 lbf ±357 N ±80 lbf
FY ±446 N ±100 lbf ±290 N ±65 lbf
FZ ±669 N ±150 lbf ±446 N ±100 lbf
FR ±959 N ±215 lbf ±647 N ±145 lbf
Maximum moment Pump-inlet Pump-outlet
MX ±476 Nm ±350 lbf ft 231 N m ±170 lbf ft
MY ±360 Nm ±265 lbf ft 177 N m ±130 lbf ft
MZ ±238 Nm ±175 lbf ft 115 N m ± 85 lbf ft
MR ±645 Nm ±475 lbf ft 313 N m ±230 lbf ft
