Maintenance
A705-40-880 Issue B

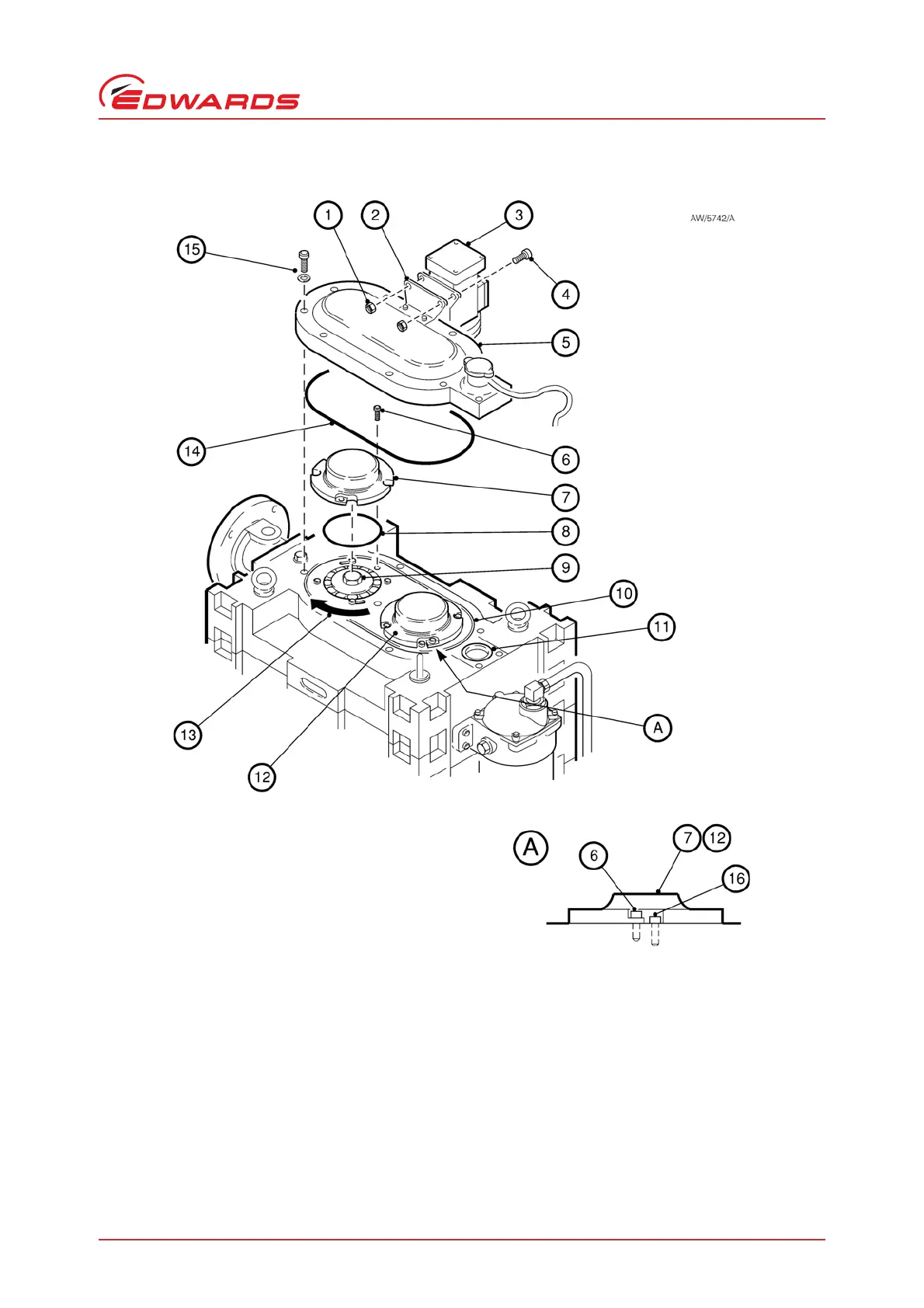

Figure 9 - Relubricate the rotor bearings
1. M6 nuts
2. Bracket
3. Thermal snap-switch
4. M6 screws
5. Bearing cover
6. Bearing cap retaining bolt
7. Bearing cap (drive shaft)
8. Bearing cap O-ring
9. Drive rotor shaft
10.Bearing cover O-ring groove
11.Cooling-jacket O-ring
12.Bearing cap (driven shaft)
13.Correct direction of rotation
14.Bearing cover O-ring
15.Bolt and spring washer
16.Bearing carrier bolt
