Edwards Drystar EDP80 Series User Manual

A705-40-880 Issue B
Page 62 © Edwards Limited 2011. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Maintenance

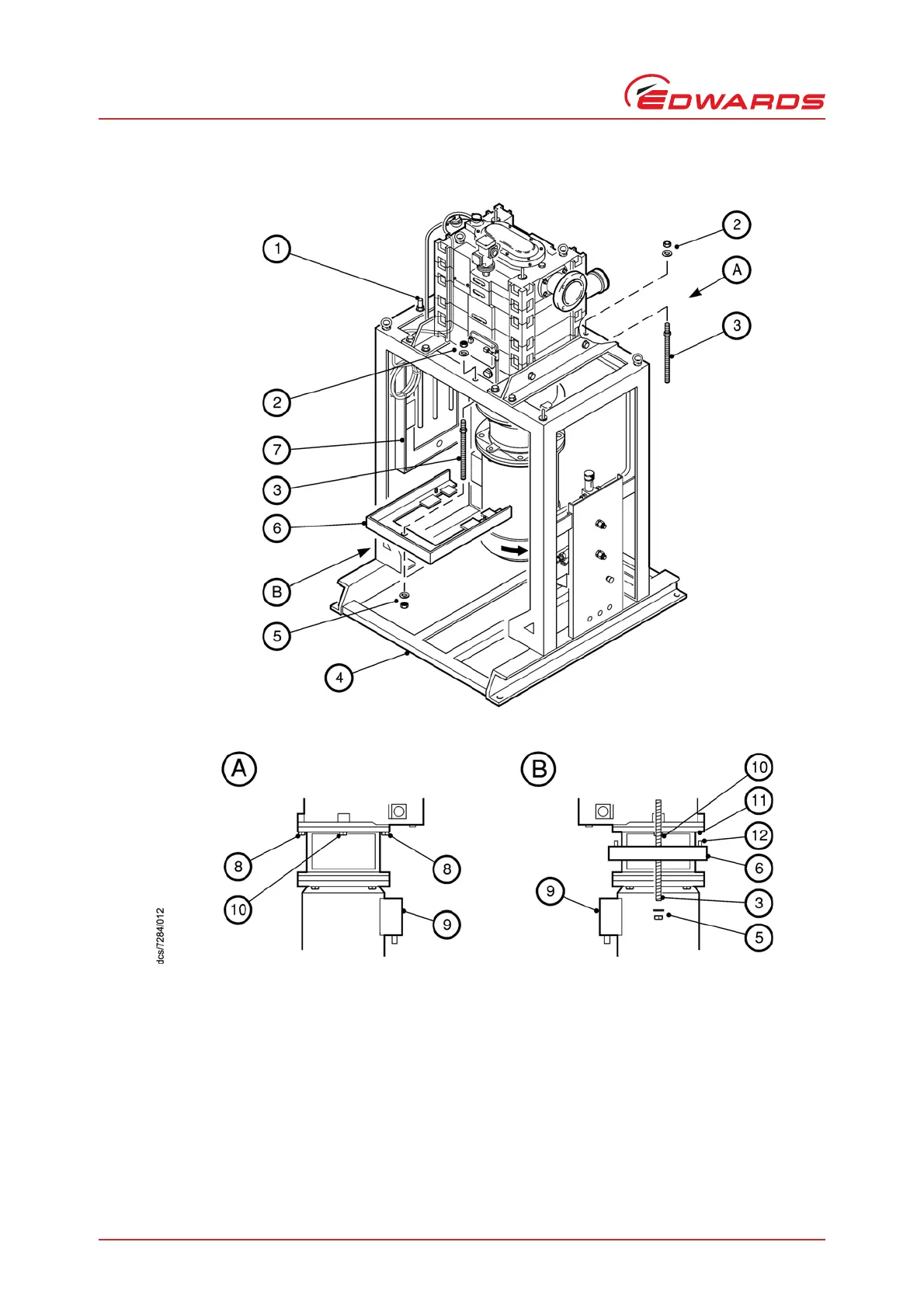

Figure 16 - Use the motor change frame to lower the pump-motor and coupling cover assembly
1. Stud (on pump frame)
2. Nut and washer
3. Stud (removed from pump frame)
4. Baseframe
5. Nut and washer
6. Motor change frame (removed from pump frame)
7. Motor change frame (on pump frame)
8. Bolt
9. Pump-motor terminal-box
10.Bolt
11.Bolt hole
12.Locating pin
