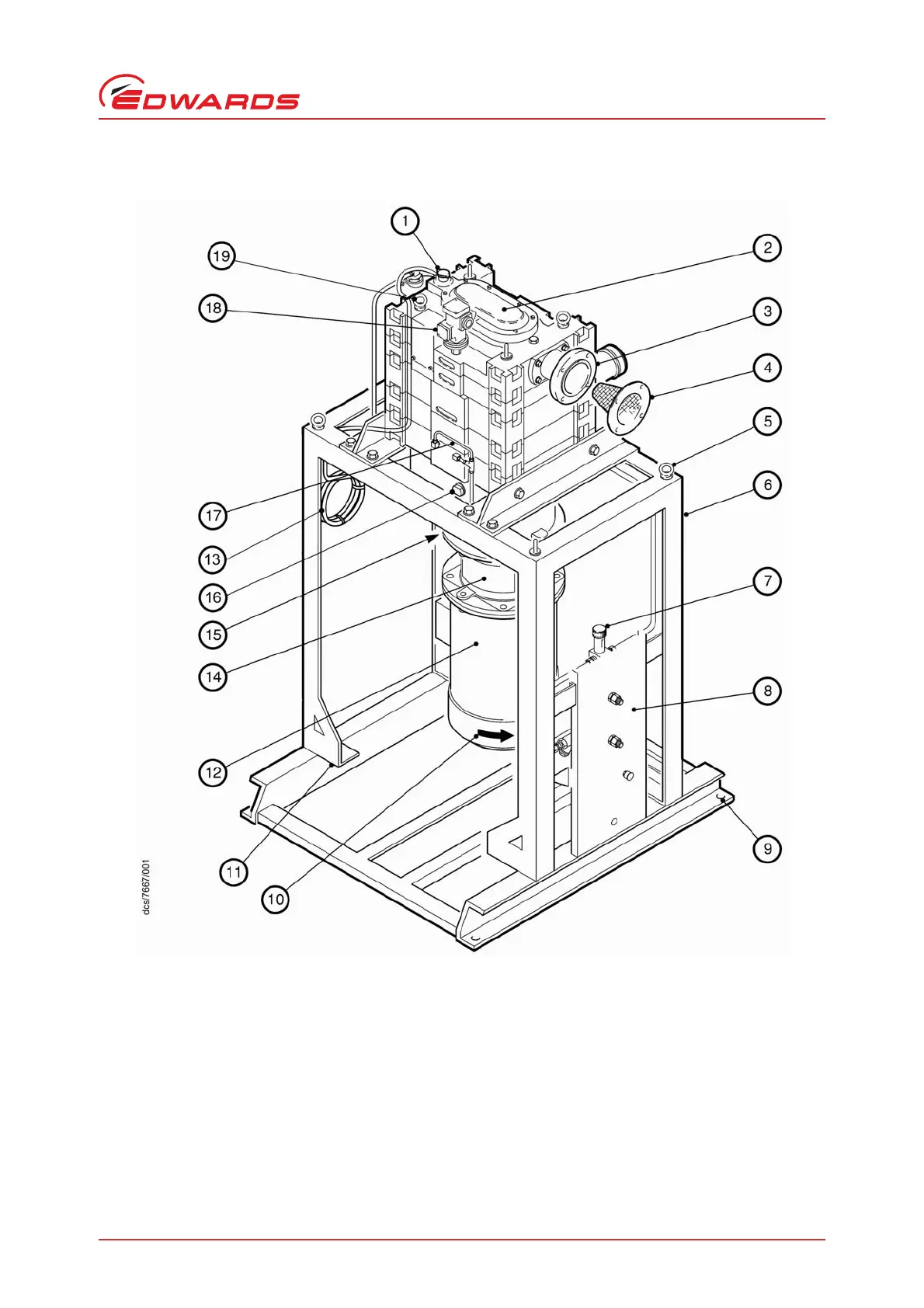

1. Coolant filler cap
2. Bearing cover
3. Pump-inlet
4. Inlet filter (in pump-inlet)
5. Lifting bolt
6. Frame
7. TCV (thermostatic control-valve)
8. Services panel
9. Fixing hole
10.Direction of rotation arrow
11.Frame lower cross member (EDP250/EDP400 only)
12.Pump-motor
13.End of coolant overflow pipe
14.Coupling cover guard
15.Oil-level sight-glass (behind frame)
16.Oil filler-plug
17.Shaft- seals purge pipeline
18.Coolant jacket thermal snap-switch
*
19.Service module lifting bolts
*
A temperature transmitter may be fitted instead
of a thermal snap-switch: see Section 1.4.
